PCIe x8 to 2x internal NVMe M.2 Key M LP Adapter - PCIe x8 to 2x internal NVMe M.2 Key M LP, Adapter
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Delock PCIe x8 adapter with two internal M.2 (Key M) slots supporting 2280/2260/2242/2230; bootable; low-profile bezel optional.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

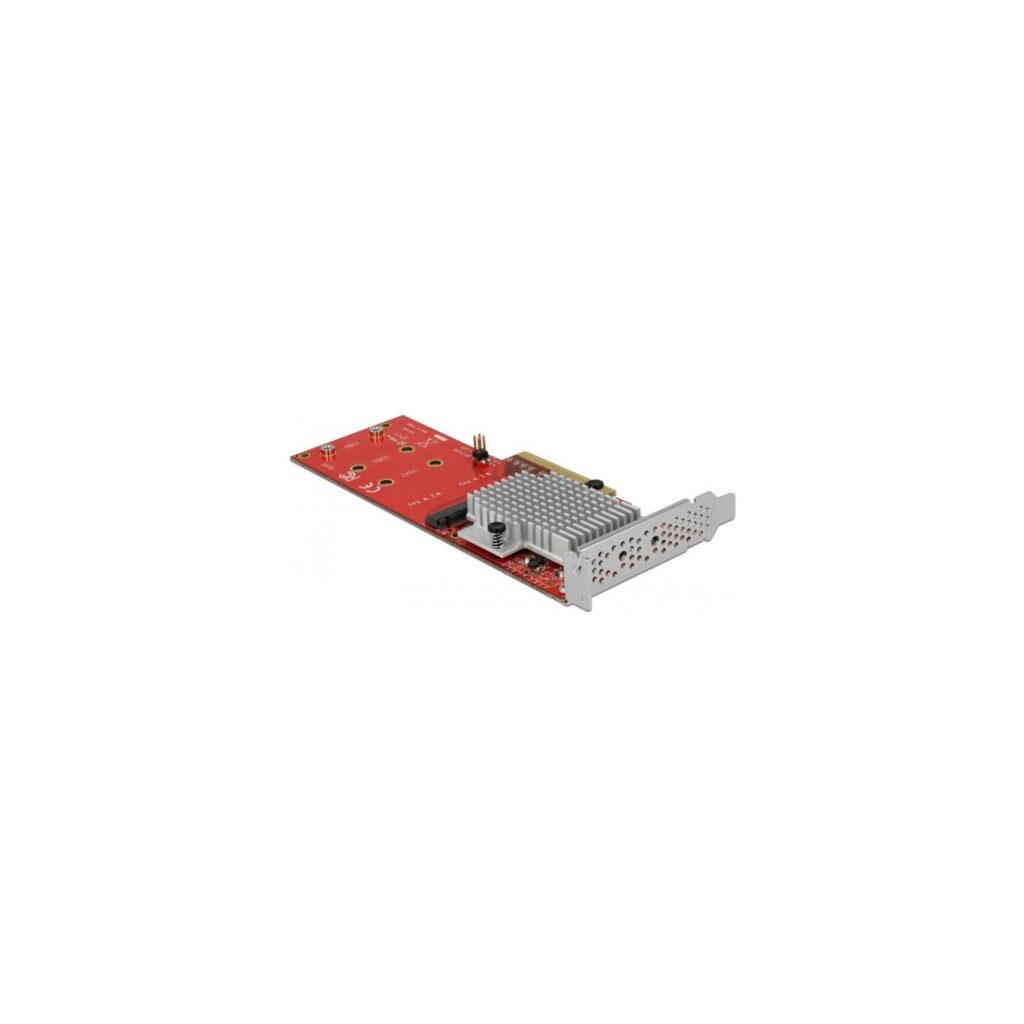

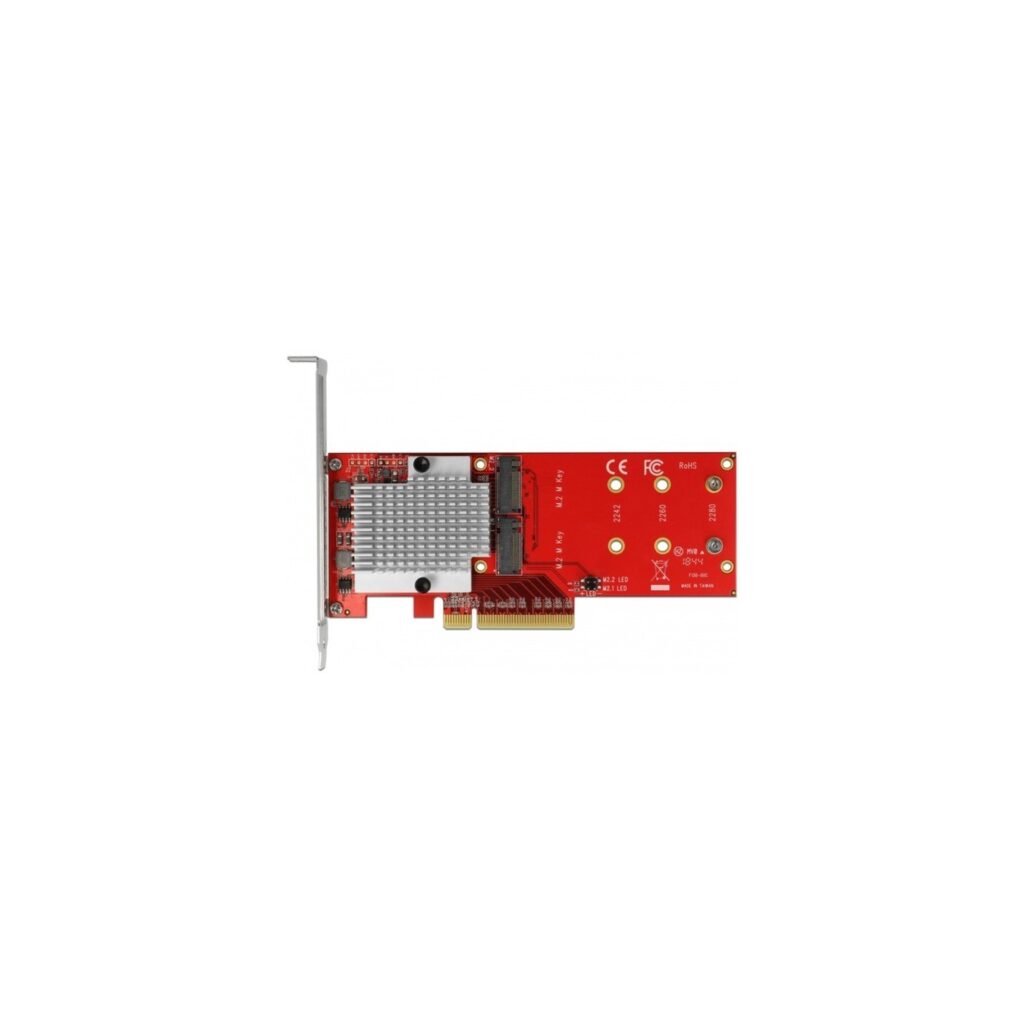

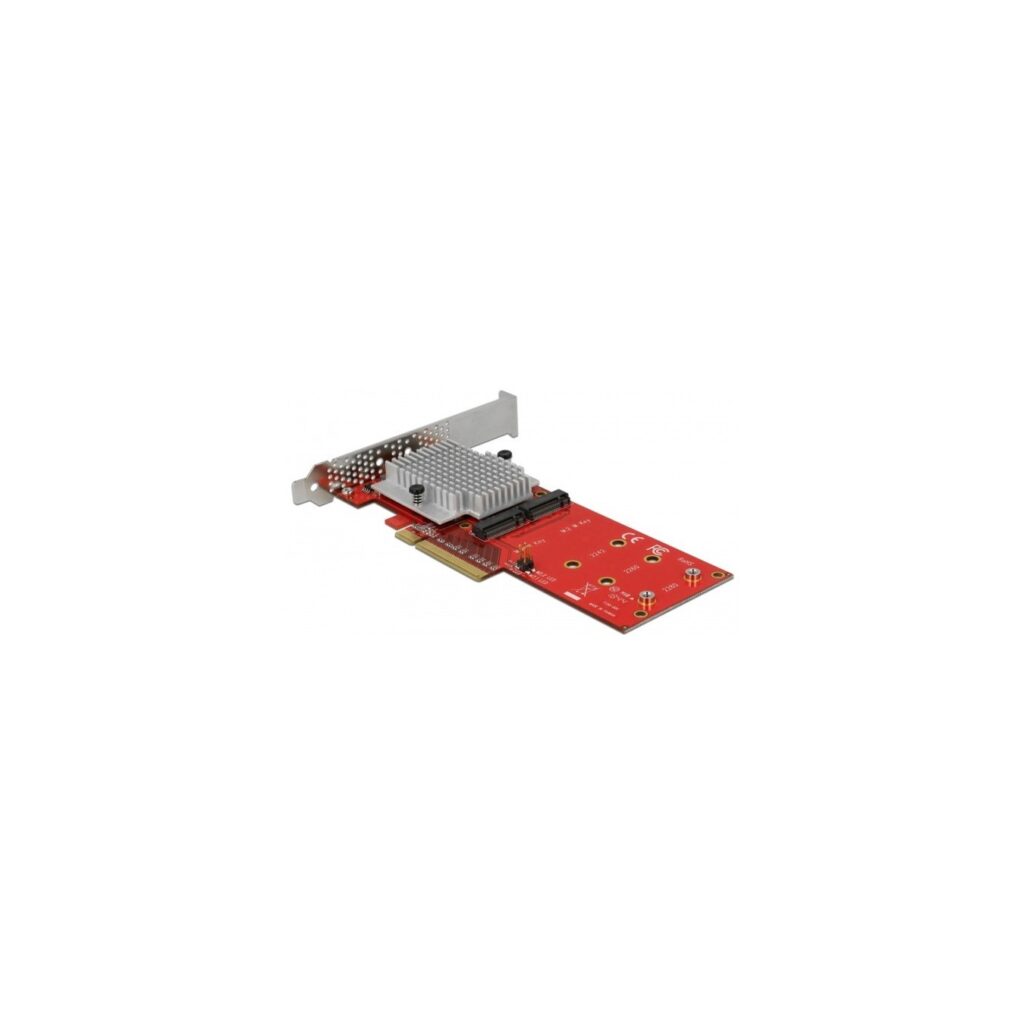

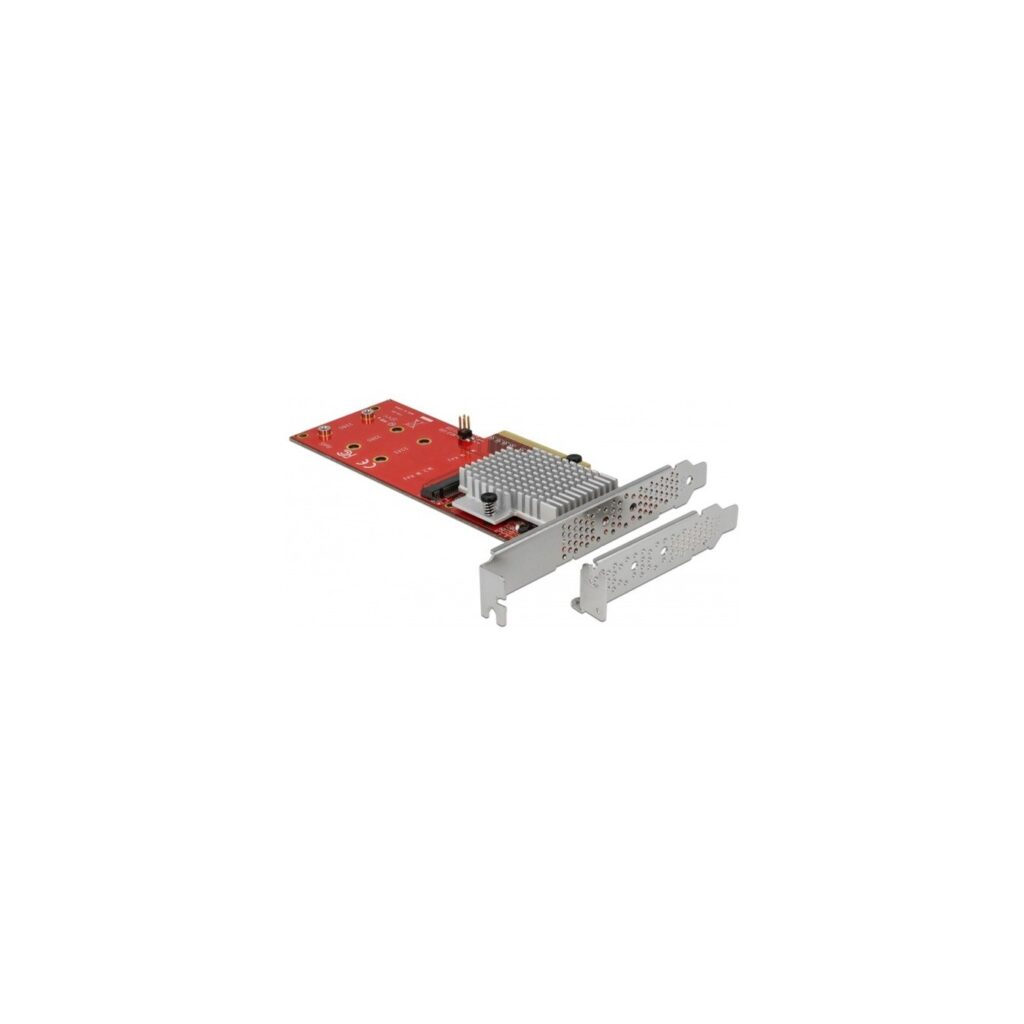

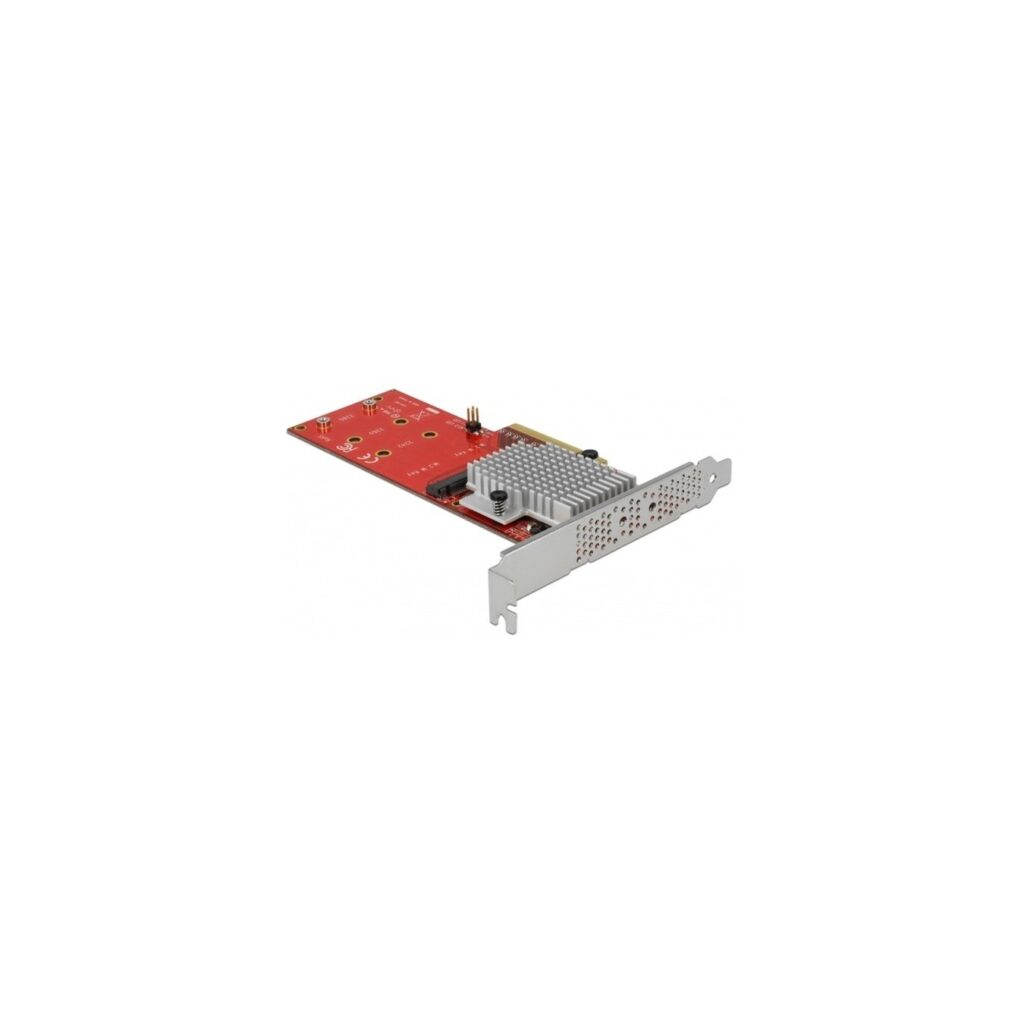

This PCI Express card from Delock expands the PC with two M.2 slots. Up to two M.2 SSDs in 2280, 2260, 2242 and 2230 format can be connected to these. Especially in the gaming and server sectors, this card is ideal for expanding the existing system with two fast M.2 NVMe slots. Both slots can be used at the same time.
| Typ | Adapter |
| EAN | 4043619903054 |
| Manufacturer no. | 90305 |
| Controller Art | M.2 |
| slot | PCIe x8 Version 3.0 |
| Chip | Asmedia ASM2824 |
| Protocol | PCIe x8 |
| Data throughput | 32 GBit/s |
| Connections - internal | 2x M.2 |
| Operating System - Supported | Windows 7, Windows 8, Windows 10 |
| Low Profile | optional |
| Feature | Maximum height of the components on the module: 1.5 mm, use of double-sided modules possible, bootable |
| More information | Supports M.2 modules in 2280, 2260, 2242 and 2230 format with Key M |
| Accessories - available | Low profile bezel, M.2 mounting material, instruction manual |
| Weight | 186 Gramm |
