PCIe Card - 4x internal M.2 B with RAID, RAID card
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Delock PCIe RAID card adds four M.2 slots (2280/2260/2242/2230) with SATA interface; supports modules on both sides.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

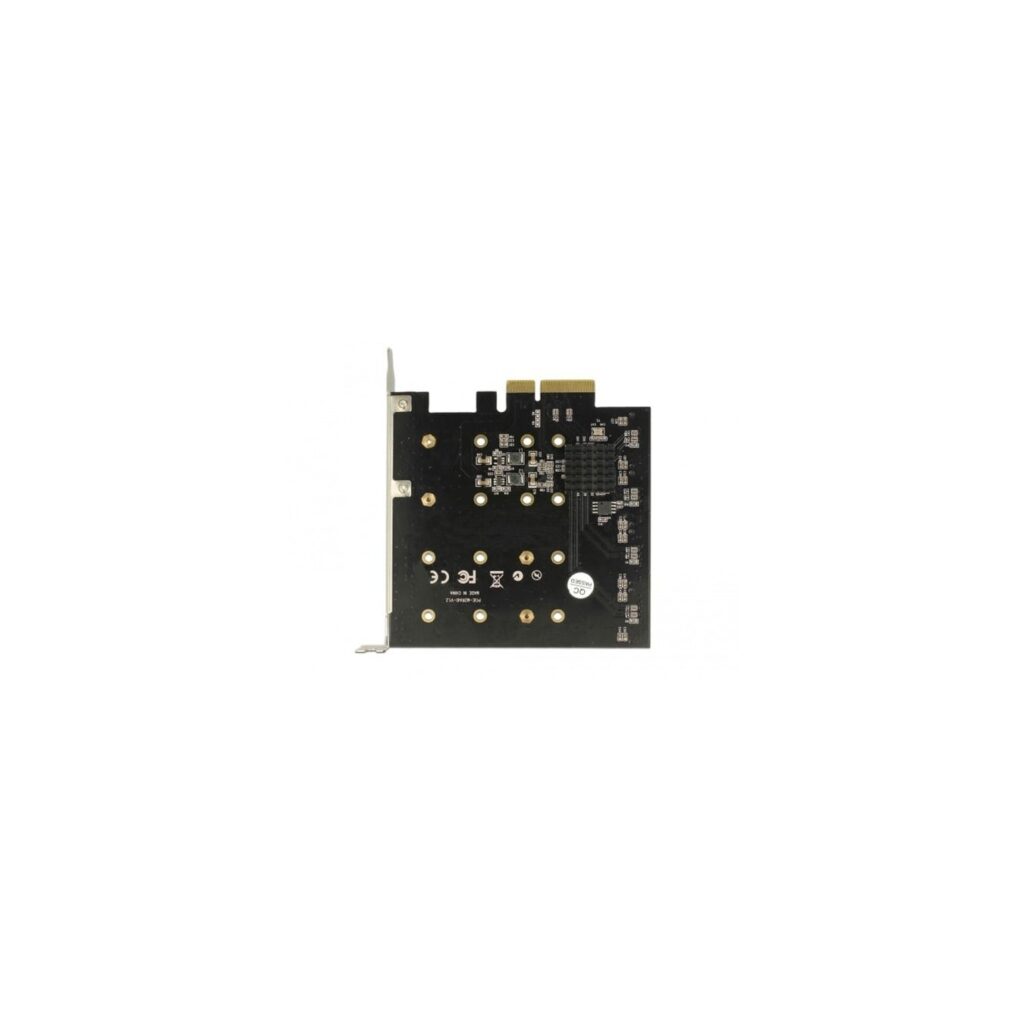

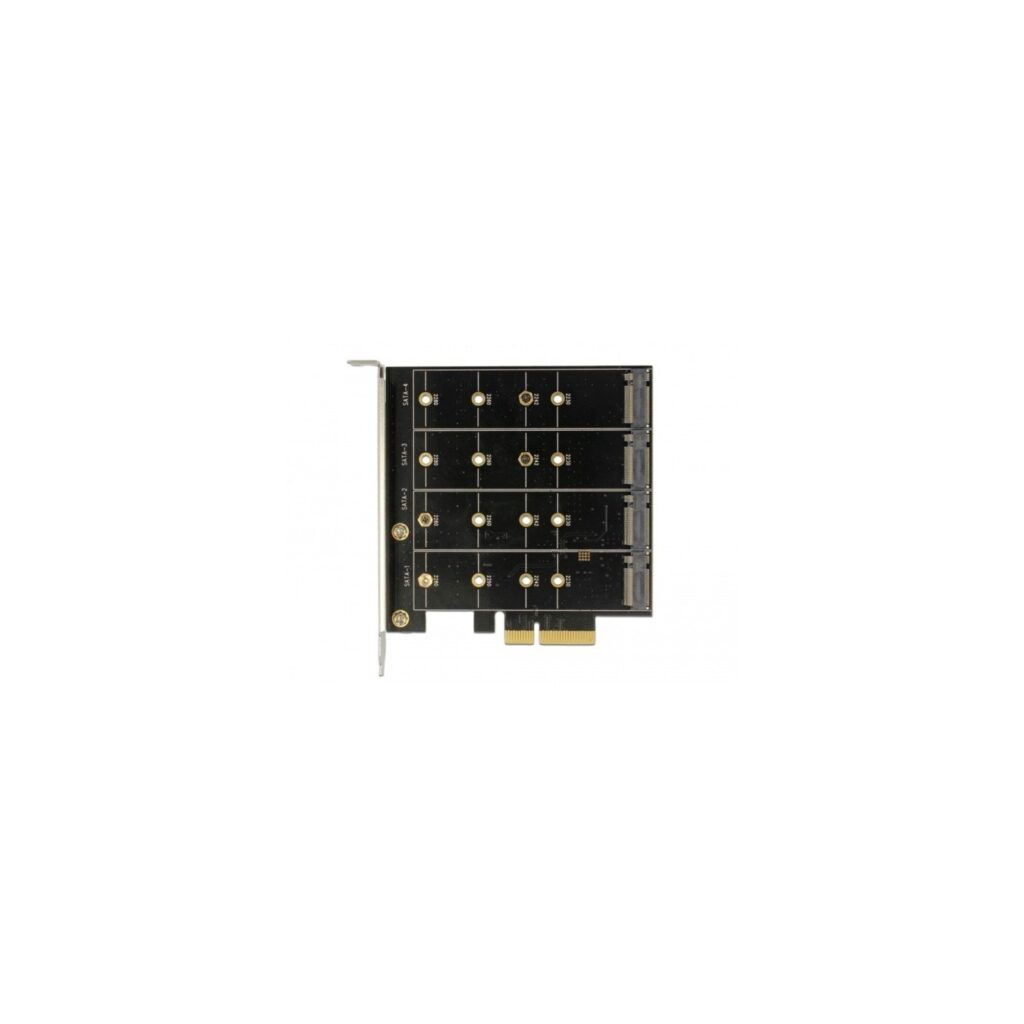

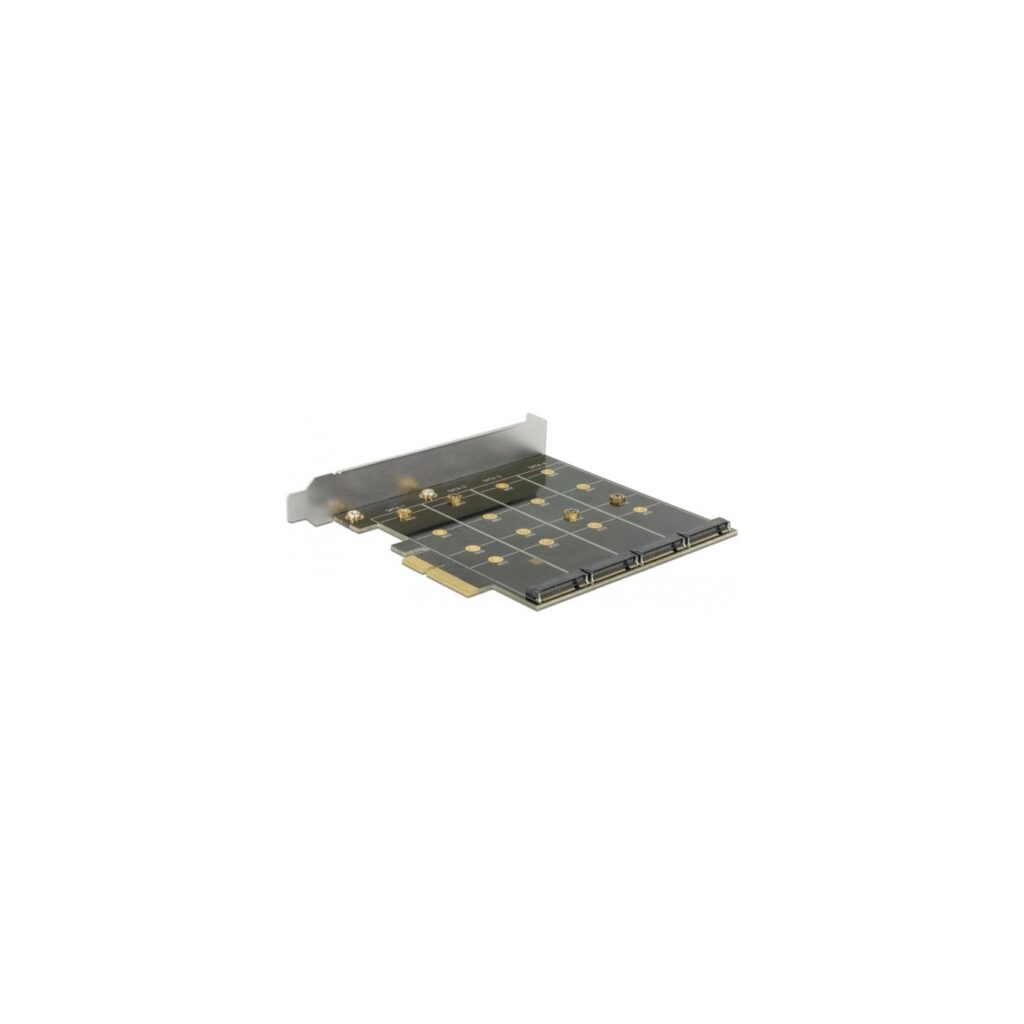

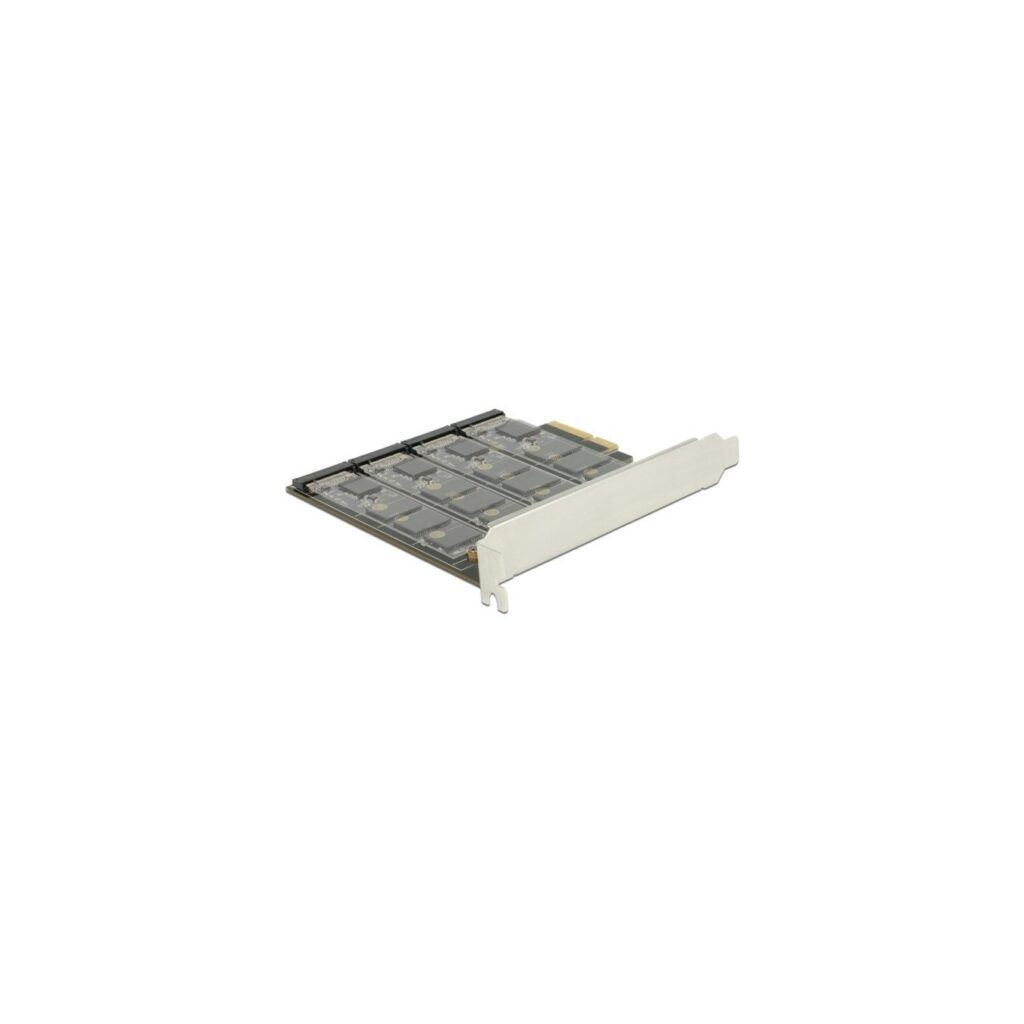

This PCI Express card from Delock expands the PC with four M.2 slots. Up to four M.2 SATA modules in 2280, 2260, 2242, 2230 format can be connected to the card. When using more than one SSD, it is possible to use different RAID levels.
| Typ | RAID-Card |
| EAN | 4043619898886 |
| Manufacturer no. | 89888 |
| Controller Art | Serial-ATA, M.2 |
| slot | Version 2.0 |
| Chip | Marvell 88SE9230 |
| Protocol | Serial-ATA/600 |
| Data throughput | 6 GBit/s |
| Operating System - Supported | Linux, Windows 8, Windows 10 |
| Raid-Level - direct | 0, 1, 10 |
| Feature | Supports M.2 modules in format 2280, 2260, 2242 and 2230 with Key B or Key B+M on SATA basis; Interface: SATA |
| More information | Use of modules equipped on both sides possible |
