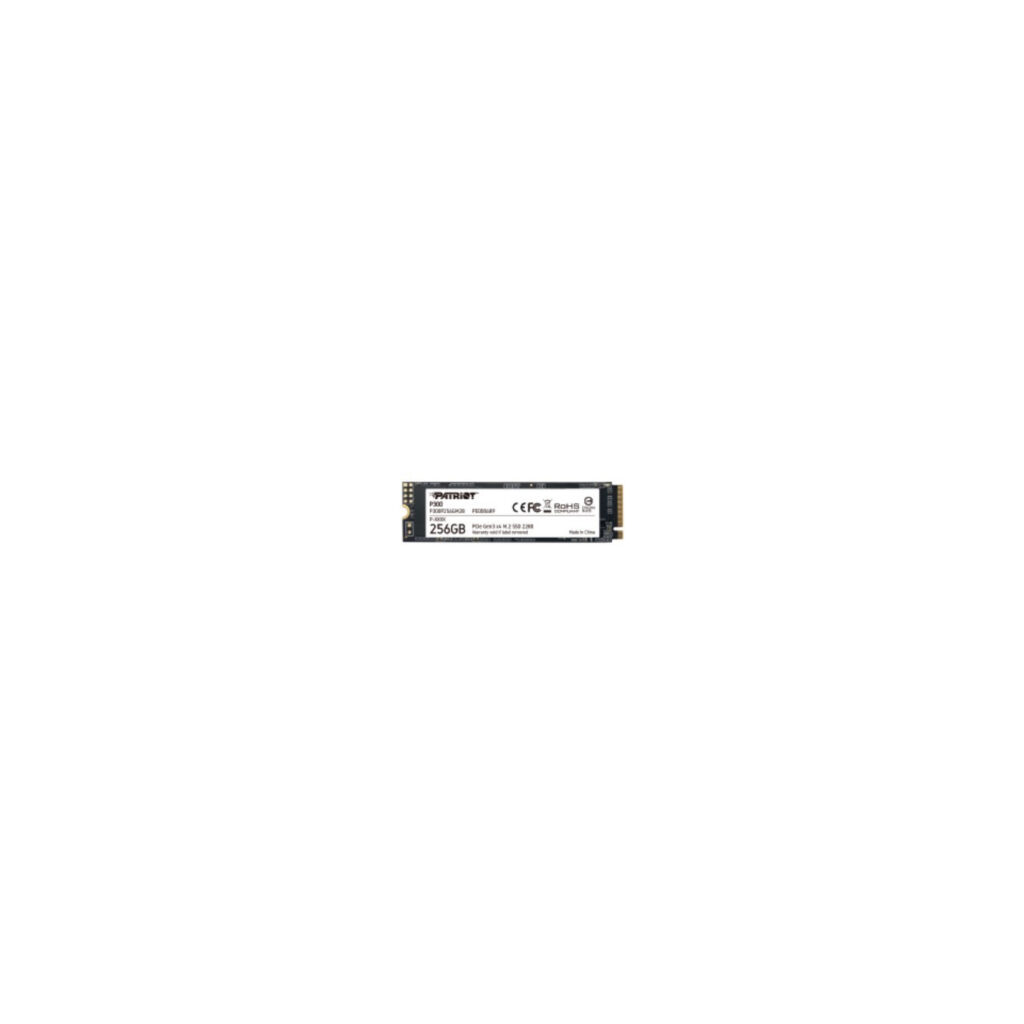

Patriot P300 M.2 NVMe SSD - P300P256GM28 - 256GB, PCIe 3.0 x4 (NVMe 1.3), M.2 2280
Login
Patriot P300 256GB M.2 2280 NVMe SSD (P300P256GM28) — PCIe 3.0 x4, NVMe 1.3, up to 1700 MB/s read & 1100 MB/s write, SMI2263XT controller, TBW 80
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Patriot Memory P300P256GM28. SSD capacity: 256 GB. SSD form factor: M.2. Component for: PC/Laptop
| NVMe version | 1.3 |
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| Interface | PCI Express |
| Feature | NVMe |
| Component for | PC/Laptop |
| Random read (4KB) | 290 IOPS |
| Random write (4KB) | 260 IOPS |
| Sequential read speed (ATTO) | 1700 MB/s |
| Sequential write speed (ATTO) | 1100 MB/s |
| Sequential read speed (CDM) | 1700 MB/s |
| Sequential write speed (CDM) | 1100 MB/s |
| Controller type | SMI2263XT |
| PCI Express interface data lanes | x4 |
| TBW rating | 80 |
| Certification | CE/FCC |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.8 mm |
| Weight | 9 g |
| Package width | 130 mm |
| Package depth | 66 mm |
| Package height | 99.6 mm |
| Package weight | 20 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84717070 |
