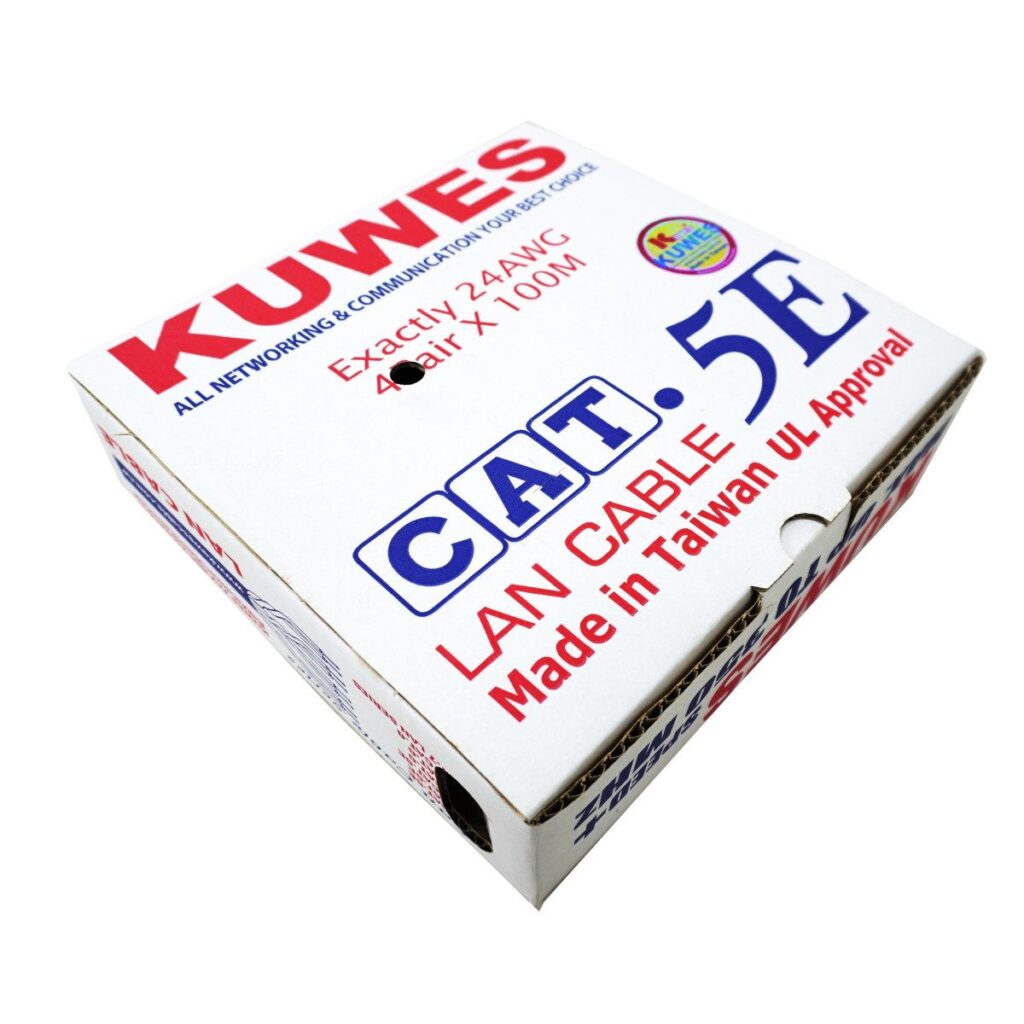

Kuwes CAT5E UTP Pure Copper Indoor 100m Grey
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Conductor: Solid Bare copper (1 x AWG24)
Insulation : HDPE
- Min. Avg. Thickness: 0.178 mm
- Min. Thickness: 0.153 mm
Color Code:
- Pair 1: Blue & White/Blue
- Pair 2: Orange & White/Orange
- Pair 3: Green & White/Green
- Pair 4: Brown & White/Brown
Jacket: 75°C PVC Compound
- Min. Avg. Thickness: 0.585 mm
- Min. Thickness: 0.458 mm
- Approximate O.D.: 5.2 mm +/- 0.3mm
Electric Requirements: (Cable length: 100M)
- Characteristic Impedance(Zo): 85～115Ω (1～350MHz)
- Other Requirements: (dB/100M)
- DC. Resistance Capacitance Unbalance: 5％
- Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
- Conductor Resistance: 9.38Ω/ 100M 20°C Max
- Mutual Capacitance: 5.6 nF/m Max
- Spark Test: 2.5KV
- Nominal Velocity of Propagation (NVP): 69 %
