Keystone Module - Cat. 8.1 - Shielded - 4 pieces
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

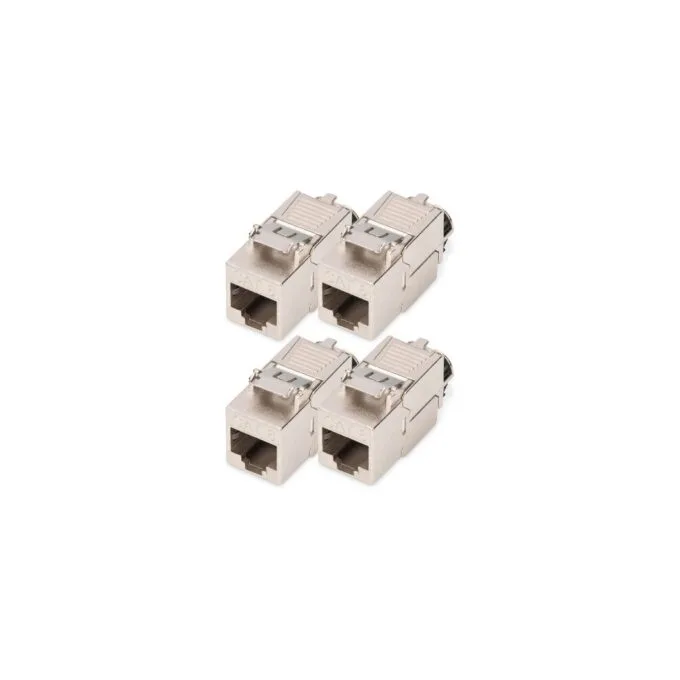

Shielded Cat. 8.1 Keystone module, 4-piece set for distribution panels and junction boxes.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Cat. 8.1 Keystone Module DN-93816 from DIGITUS is a shielded keystone module with a tool-free mounting connection that offers excellent performance and connection quality. The compact design allows a series installation of 24 pieces in a 483mm (19″) 1U panel. It offers 25 / 40GBase-T transmission speeds in permanent link up to 24 meters and channel link up to 30 meters. Especially for ToR and MoR cabling in data centers.
| Typ | Keystone-Modul |
| Color | silber |
| EAN | 4016032495192 |
| Manufacturer no. | DN-93816-4 |
| Manufactured in | China |
| Form | Keystone-Modul |
| Number | 4 pieces |
| Application example | For distribution panel and junction box assembly |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| Category - Plugs | Cat.8.1 |
| Characteristics | Set |
| Feature | Tool-free mounting connection, cable installation via LSA strips, color coded according to EIA/TIA 568 A & B |
| More information | 360° shield contact, wire intake: 22-26 AWG solid and stranded conductors, suitable for IEEE 802.3 af/at/bt - PoE, PoE+ & 4PPoE (in permanent link), up to 2000 MHz, 25/40GBase-T |
| Dimensions | Width: 14.5mm x Height: 21mm x Depth/Length: 34.5mm |
| Weight | 22 Gramm |
