IPC 5U-5512, server housing
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
The IPC 5U-5512 is the perfect case for a cost-effective mini server system. The use of high-quality materials and excellent workmanship has resulted in a variable and reliable ind…
For any questions about this item, availability, or delivery times, please contact us at 22 270068

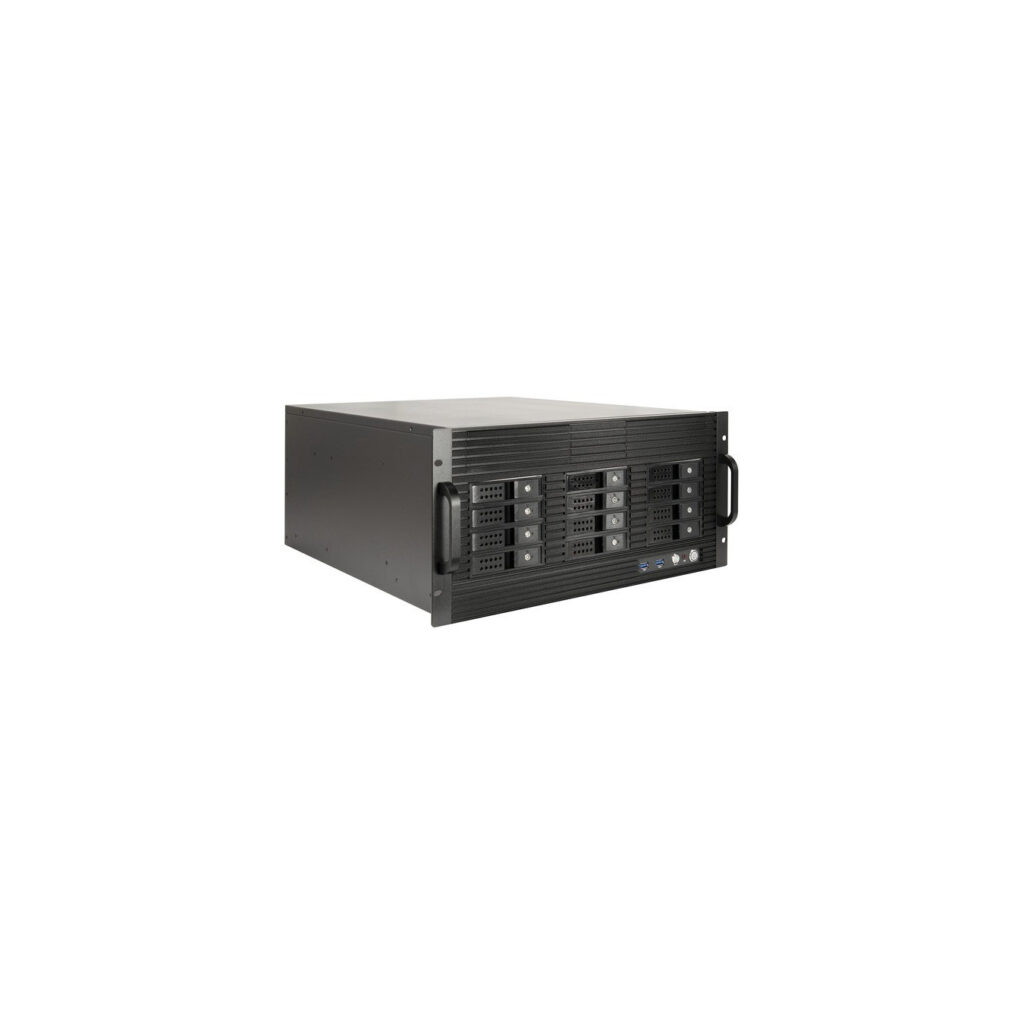

The IPC 5U-5512 is the perfect case for a cost-effective mini server system. The use of high-quality materials and excellent workmanship has resulted in a variable and reliable industrial housing. The 5U-5512 supports redundant ATX or PS/2 power supplies, up to twelve 2.5″/3.5″ hot-plug hard drives, five internal 2.5″ devices, two external 5.25″ devices and motherboards up to E-ATX size. In addition, the case has two 80mm fans and two USB 3.2 Gen1 front ports.
| Typ | Server enclosure |
| Color | schwarz |
| EAN | 4260455646444 |
| Manufacturer no. | 88887337 |
| Design | Rack |
| Mainboard Formfaktor | E-ATX, SSI-EEB |
| Material | 1.0/1.2mm steel |
| Internal dimensions - plug-in card length | maximal 250 mm |
| Drive bays - 5.25 inches | external 2 pieces |
| Slots - Full-Size | 7 pieces |

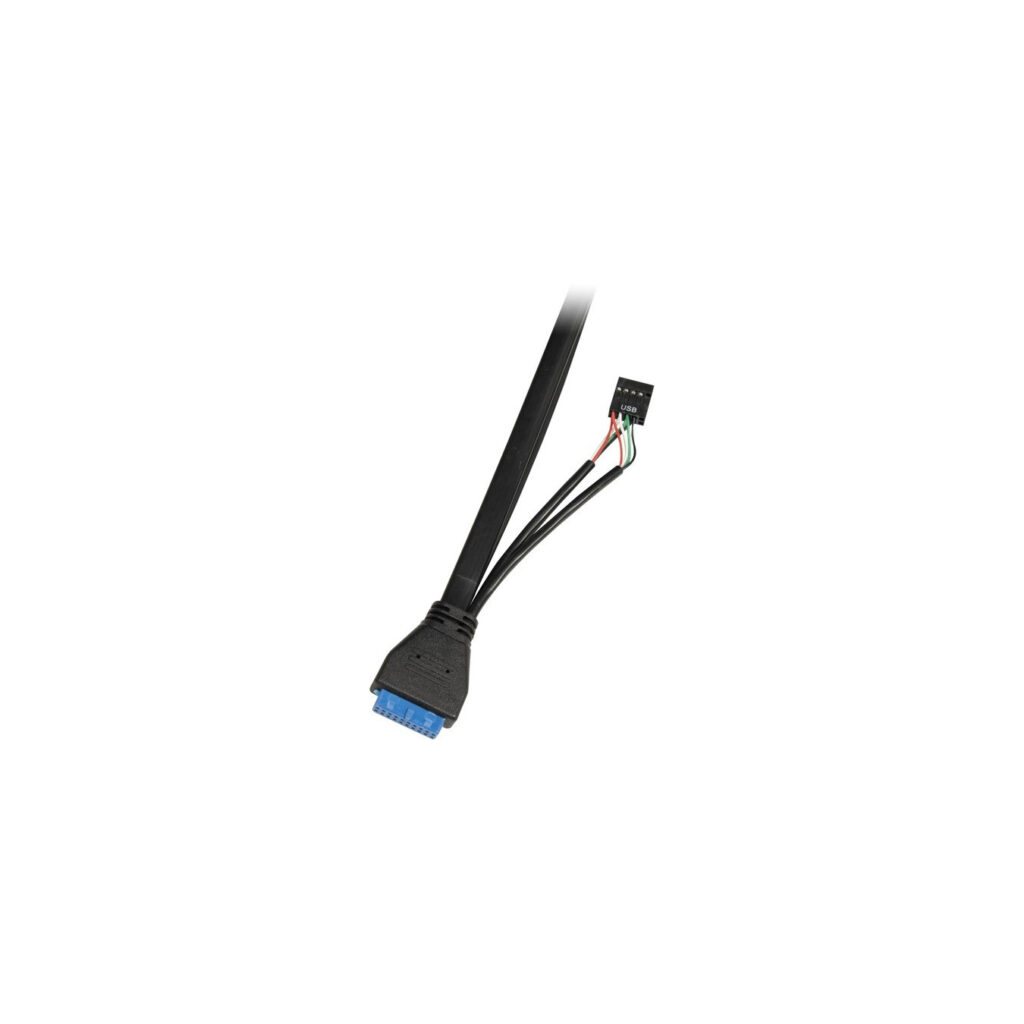

| Front connections | 2x USB-A 3.2 Gen 1 (5 Gbit/s) |

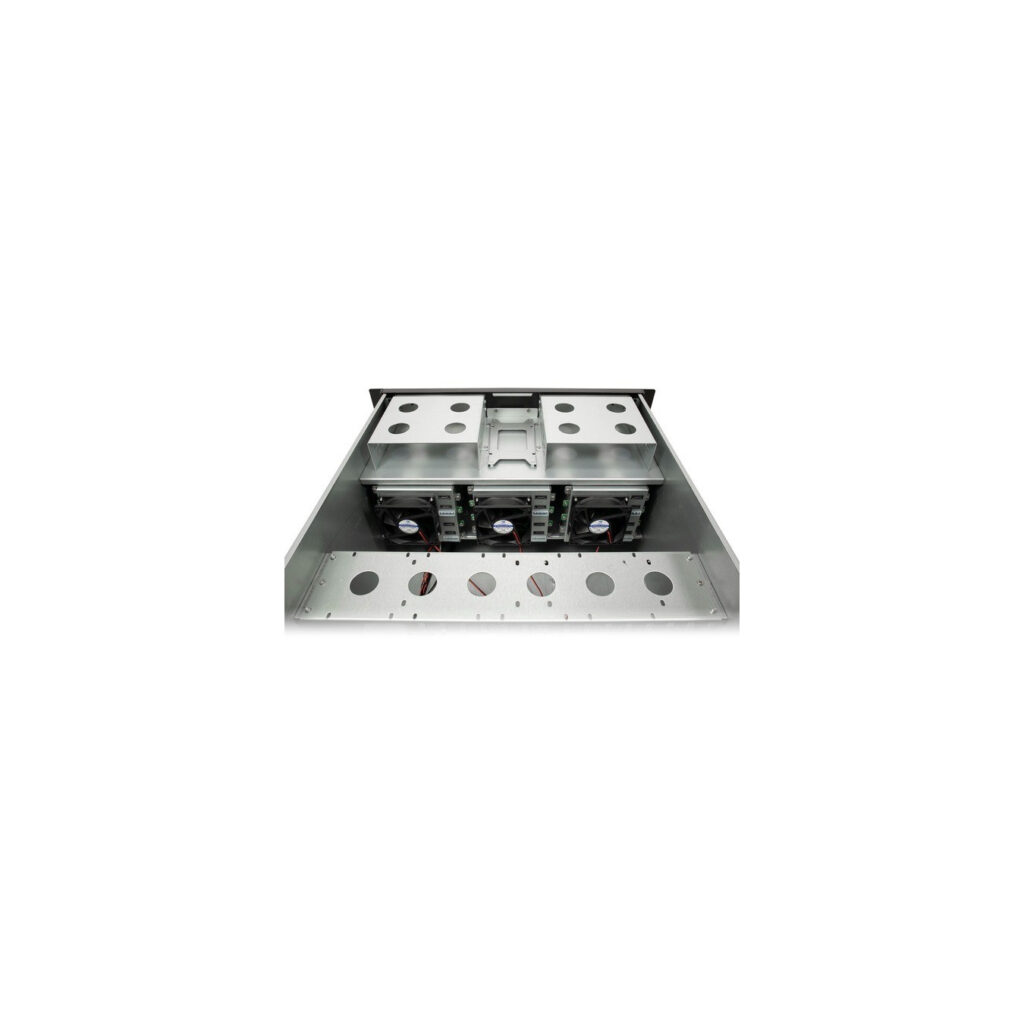

| front | Internal: 3 x 80mm fans pre-installed |
| back | 2 x 80 mm fans can be installed |

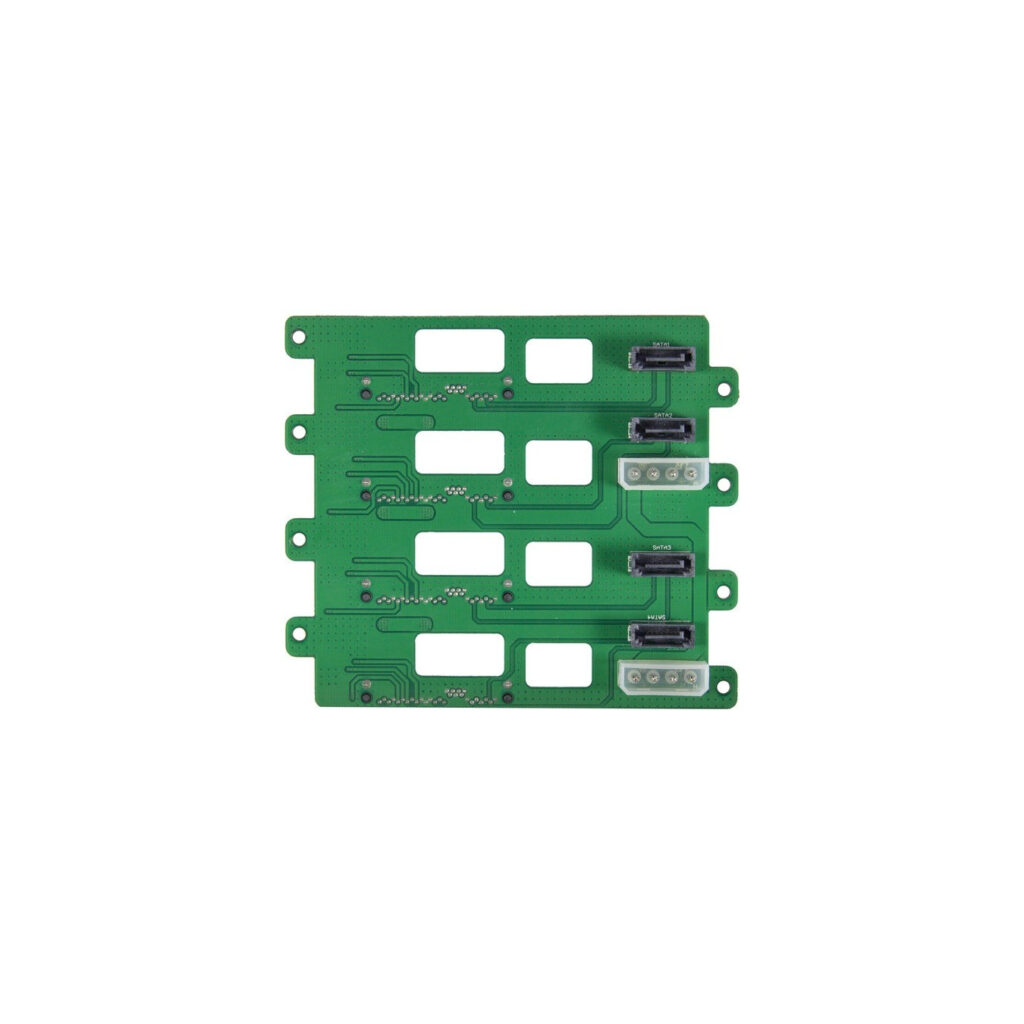

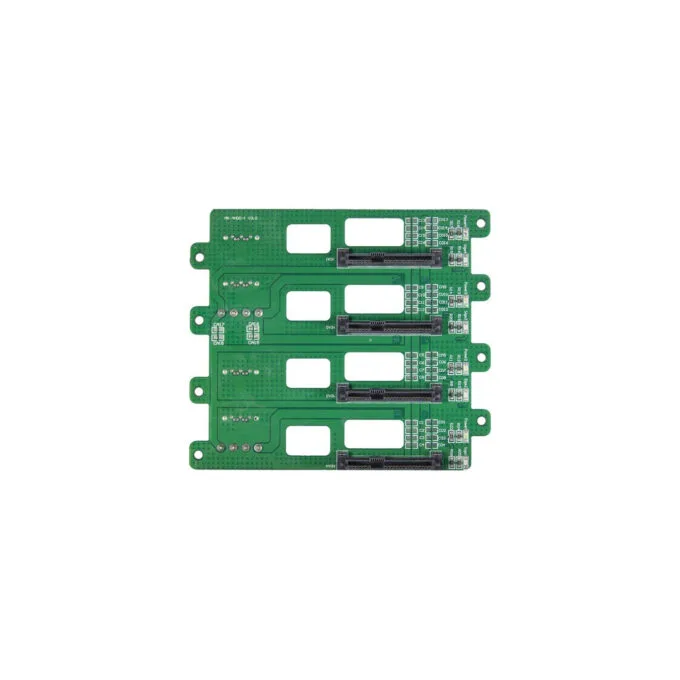

| Notes | Lockable HDD frame, three serial 80mm fans, perforated slot brackets, backplane: 4x SATA/backplane, 2x backplane, 6 Gbit/s, 12 hard drives, 3 backplanes |
| Rear connection of the mainboard | No |

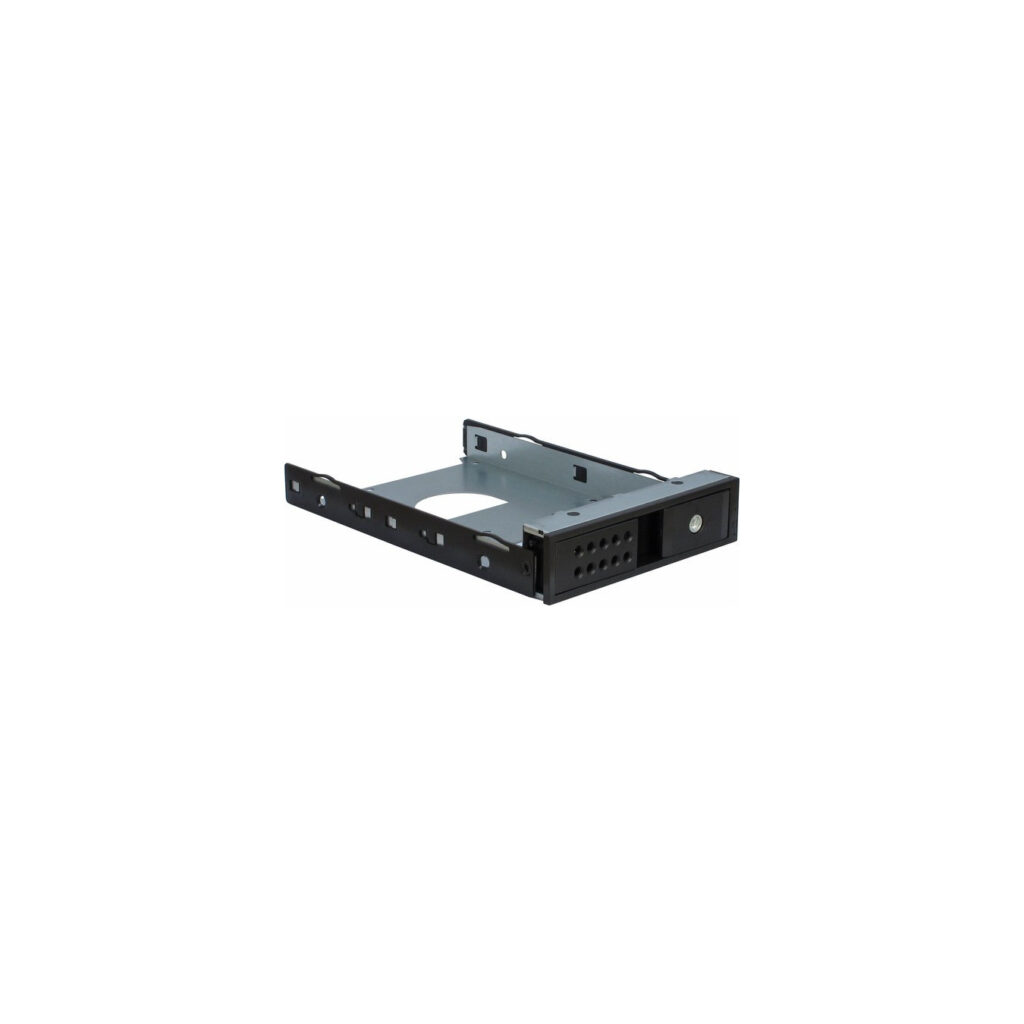

| More information | Bays: 2.5" or 3.5" external supports up to 12 (hot-swap hard drive frame) |
| Accessories - available | Case, power supply bracket for ATX (pre-installed), screws |
| Volume | 55 l |
| Dimensions | Width: 48.1 cm x Height: 22.5 cm x Depth/Length: 50.5 cm |
| Weight | 13,6 kg |
