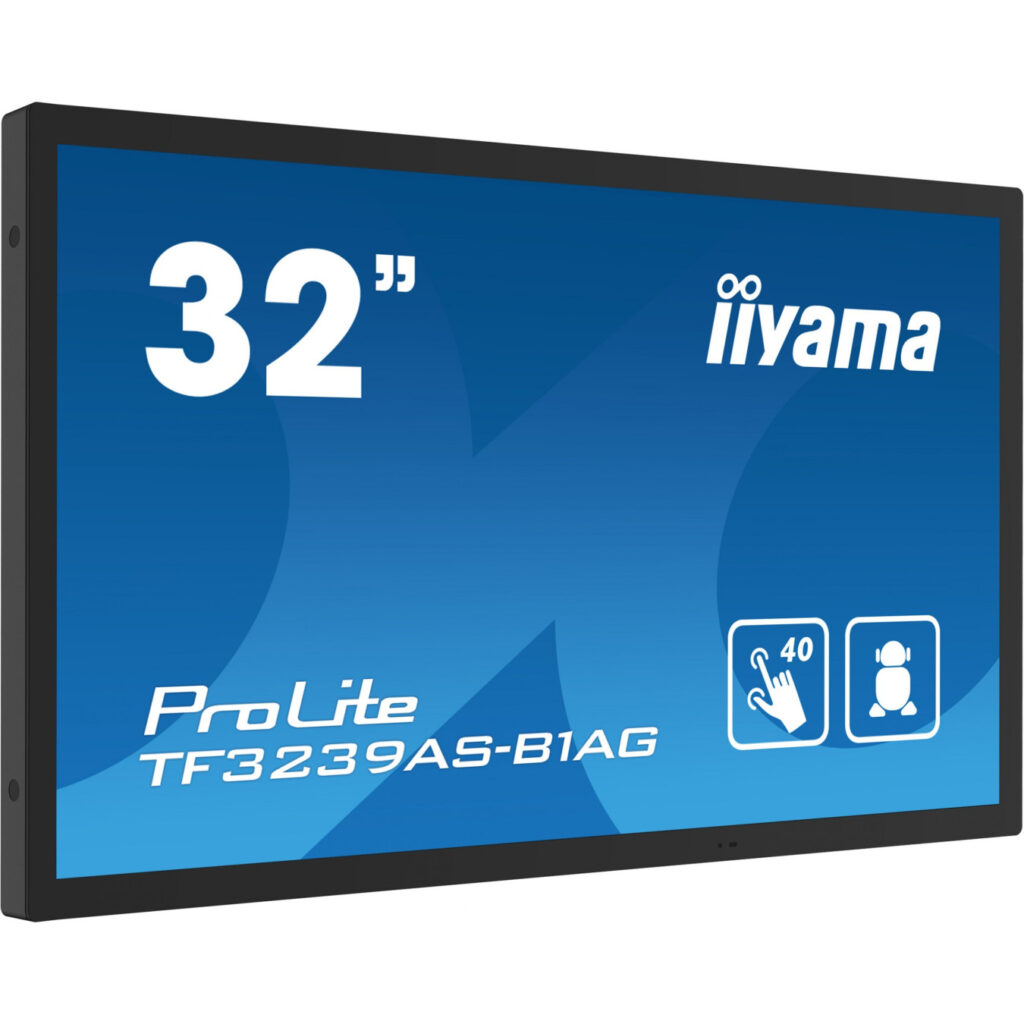

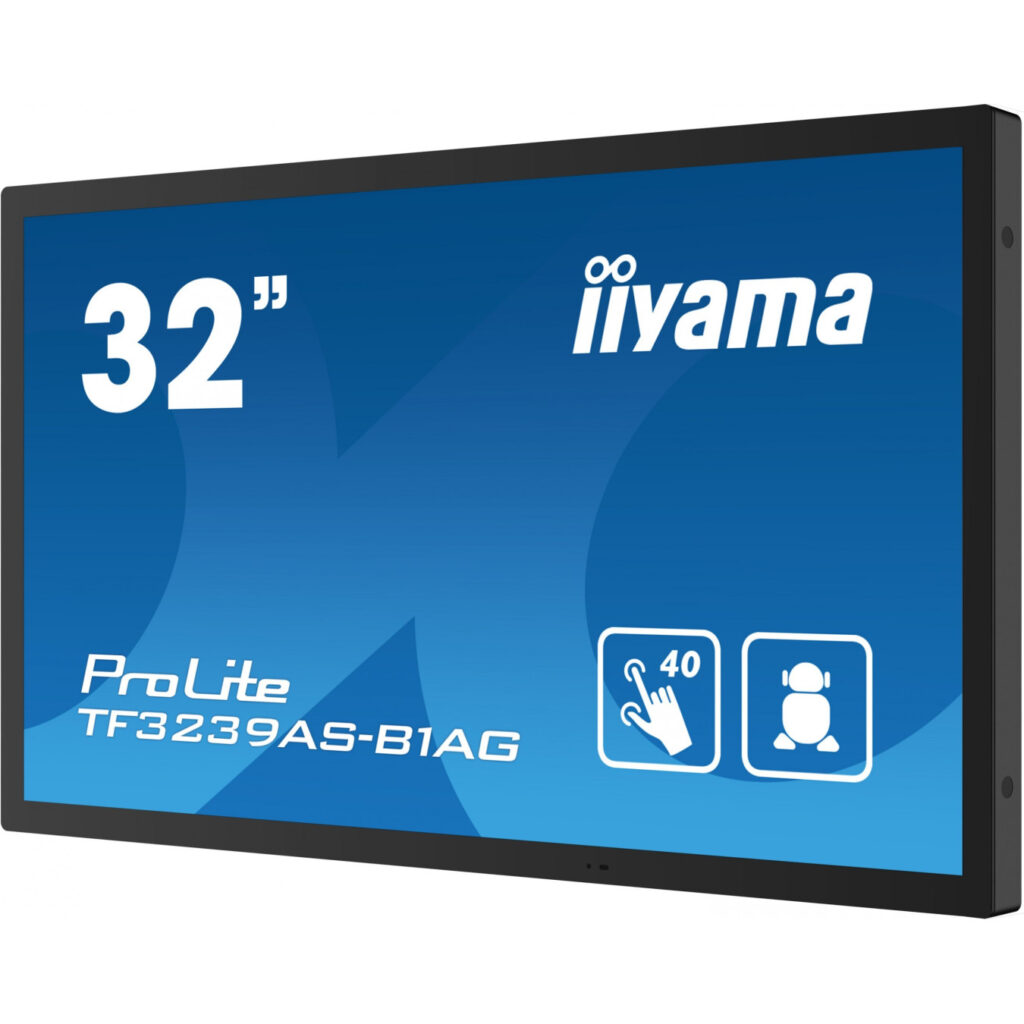

31.5″ iiyama TF3239AS-B1AG IPS PCAP interactive display, FHD 1920×1080, 40-point touch, 500 cd/m², Android 11 (4GB/32GB), 2xHDMI+DP, IP54, 24/7
For any questions about this item, availability, or delivery times, please contact us at 22 270068
iiyama 32″ All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing. Product design: Digital signage flat panel. Display diagonal: 80 cm (31.5″). Display technology: LED. Display resolution: 1920 x 1080 pixels. Display brightness: 500 cd/m². HD type: 2.4K Ultra HD. Touchscreen. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
| Panel type | IPS |
| Feature | Batteries included |
| Display diagonal | 80 cm (31.5") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| HD type | 2.4K Ultra HD |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.363 x 0.363 mm |
| Active display area (W x H) | 698.4 x 392.8 mm |
| Display diagonal (metric) | 80 cm |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Surface hardness | 3H |
| Glass thickness | 3 mm |

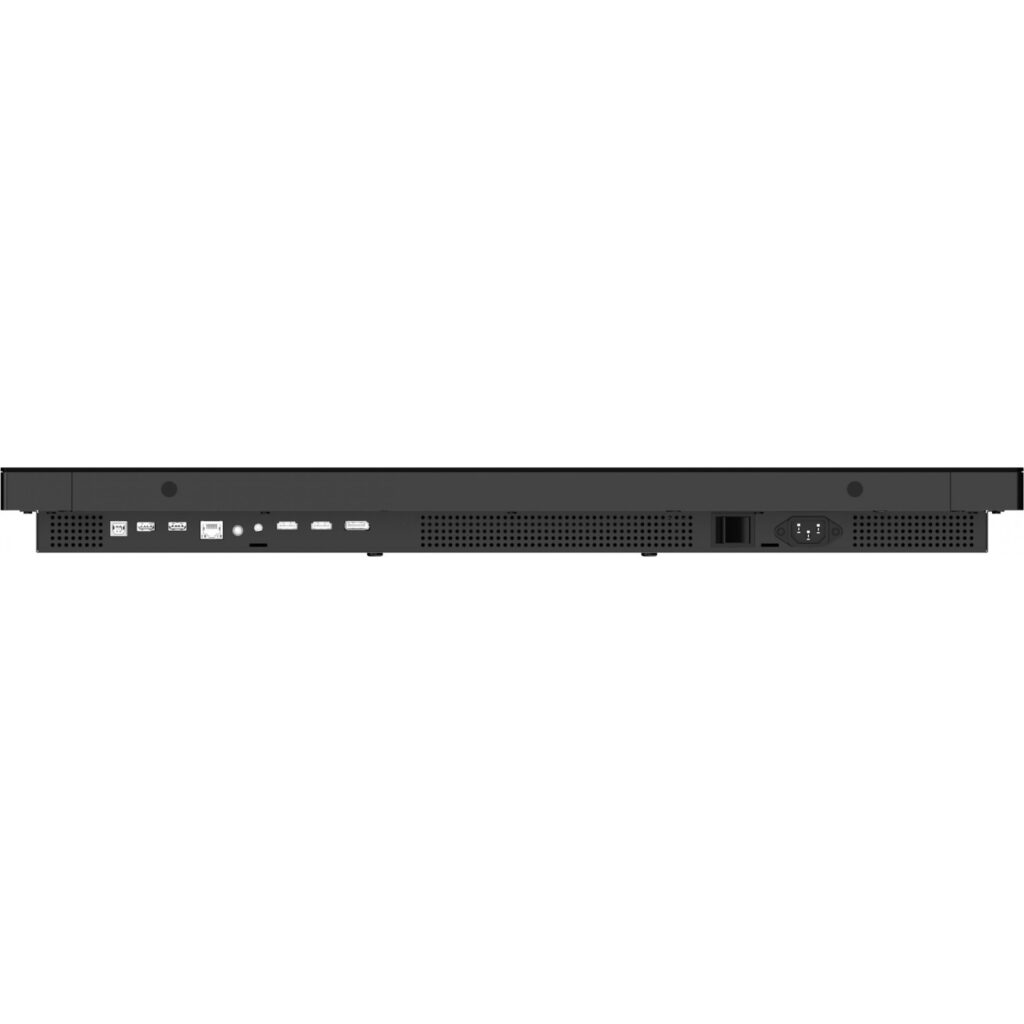

| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 3 |
| USB version | 2.0 |
| USB connector type | USB Type-A. USB Type-B |
| USB 2.0 Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |

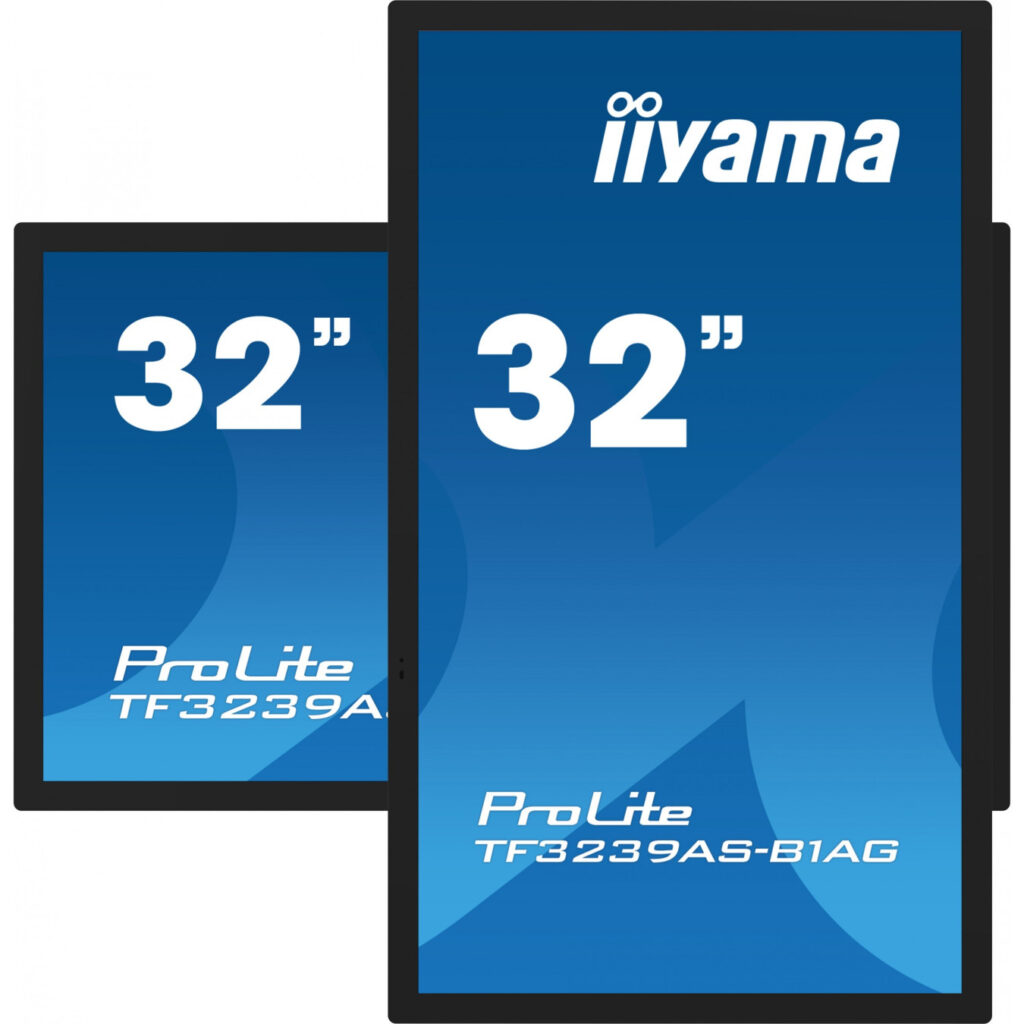

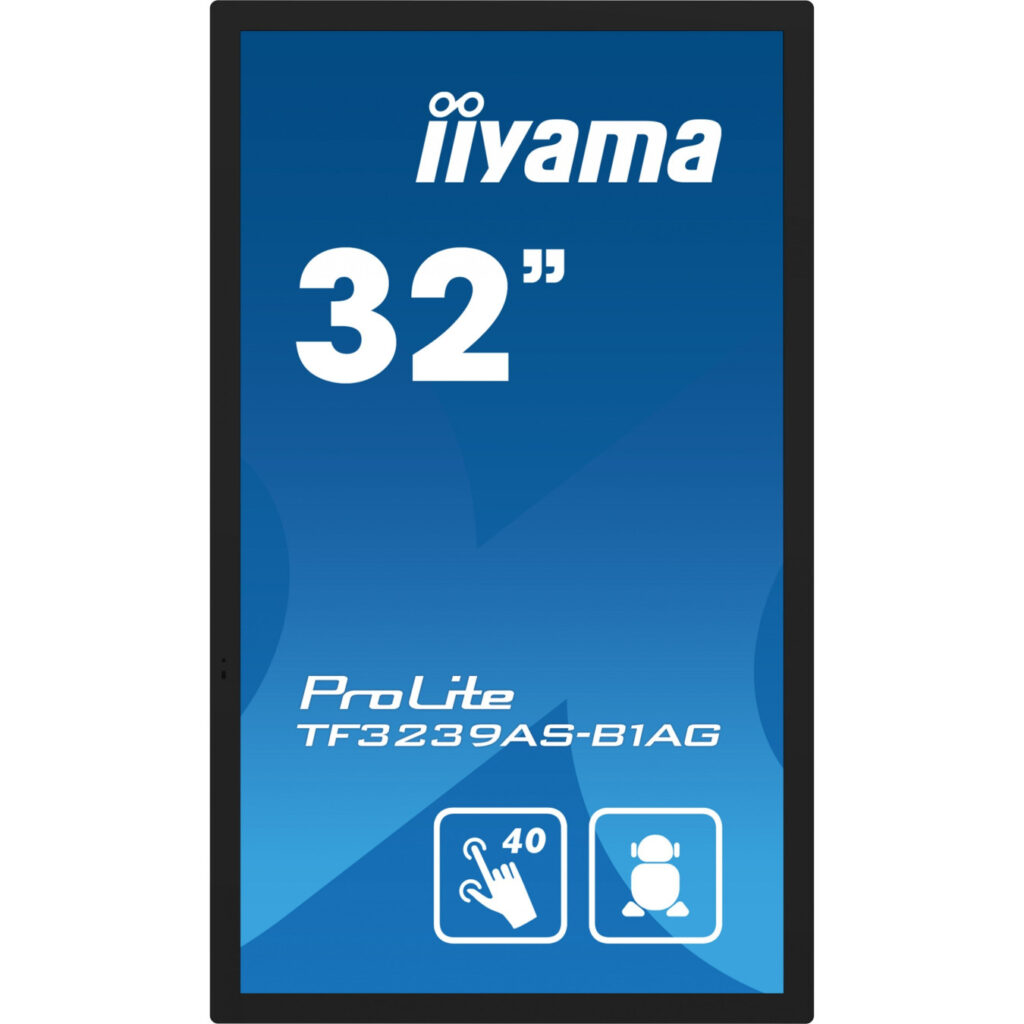

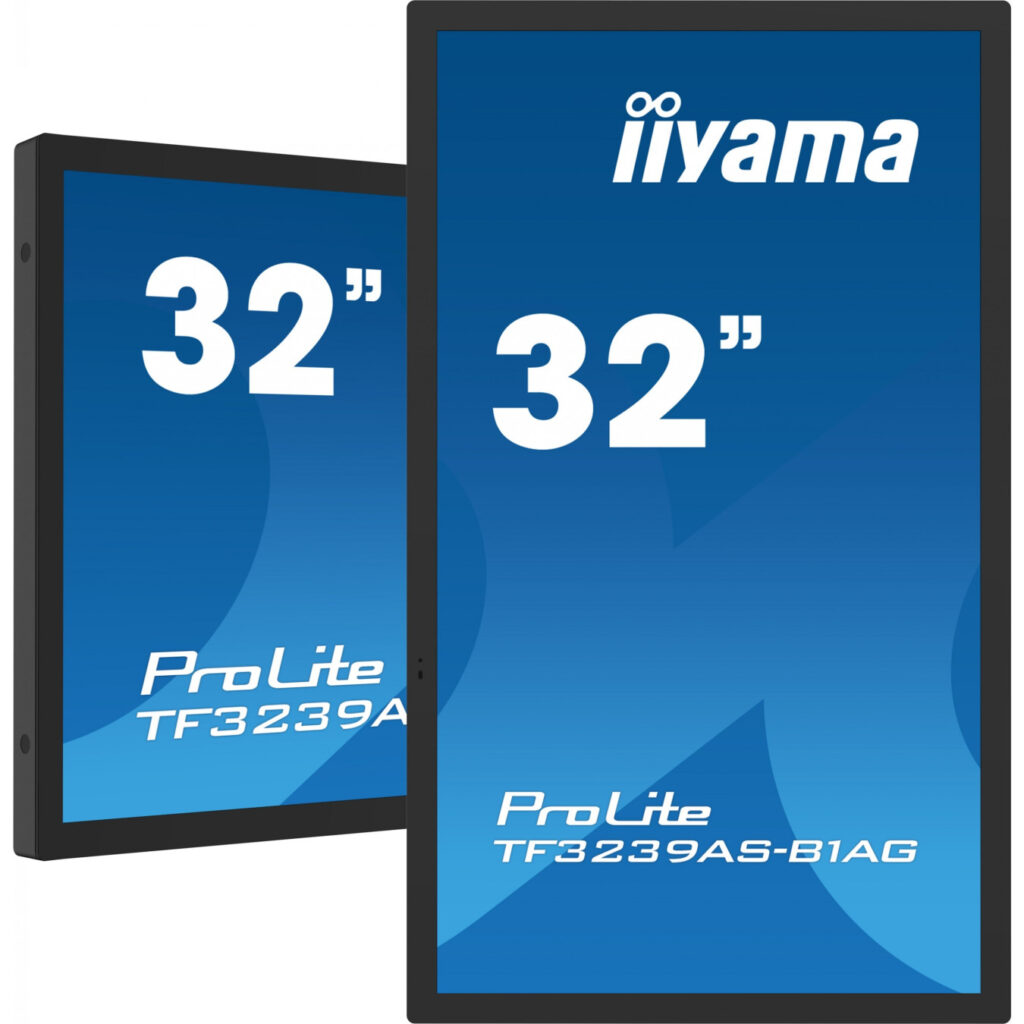

| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |

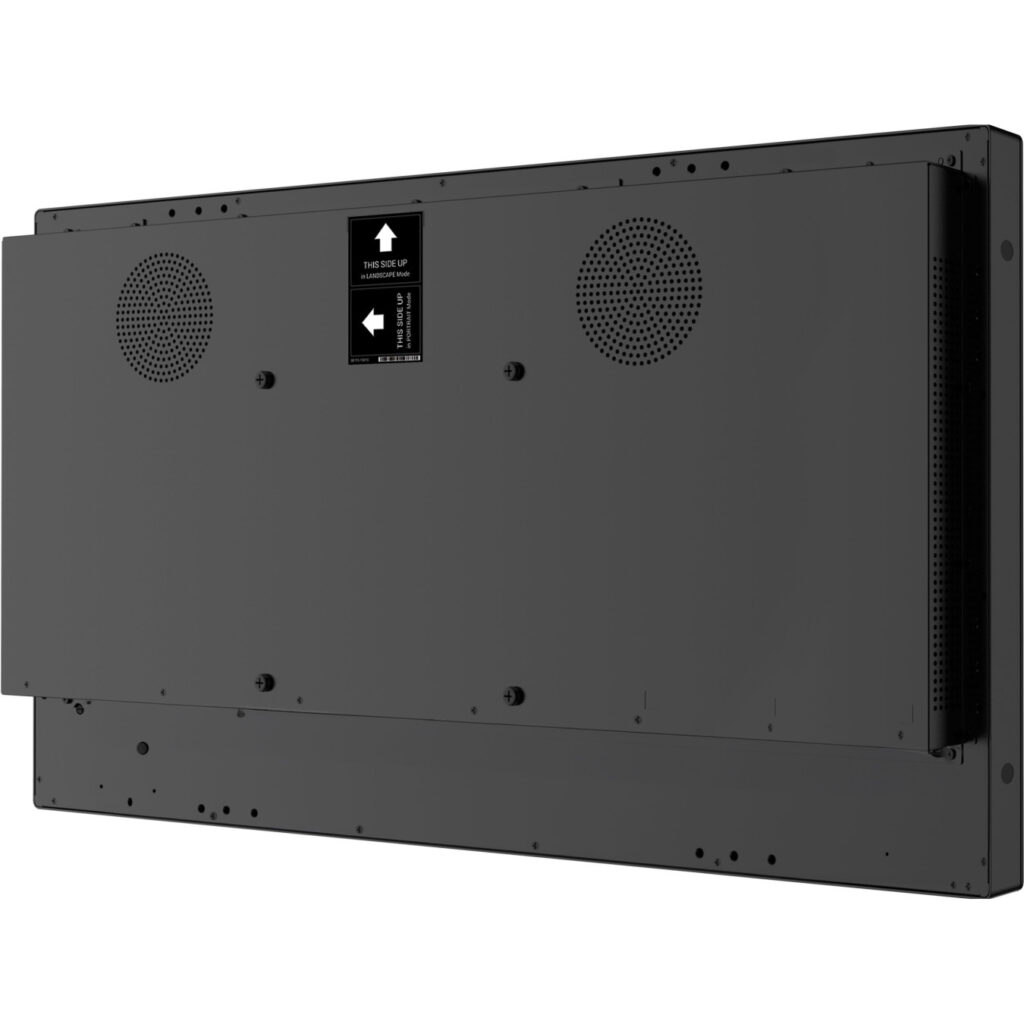

| Panel mounting interface | 200 x 200 mm |
| Bezel width (bottom) | 2.2 cm |
| Bezel width (side) | 2.2 cm |
| Bezel width (top) | 2.2 cm |
| Purpose | Universal |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Czech. Danish. German. Dutch. English. Spanish. Finnish. French. Italian. Polish. Russian. Slovenian |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP54 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 50 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 31 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Processor manufacturer | ARM |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 11 |
| Display width | 746.2 mm |
| Display depth | 62.4 mm |
| Display height | 440.7 mm |
| Display weight | 13.2 kg |
| Package width | 840 mm |
| Package depth | 149 mm |
| Package height | 560 mm |
| Package volume | 16600 cm³ |

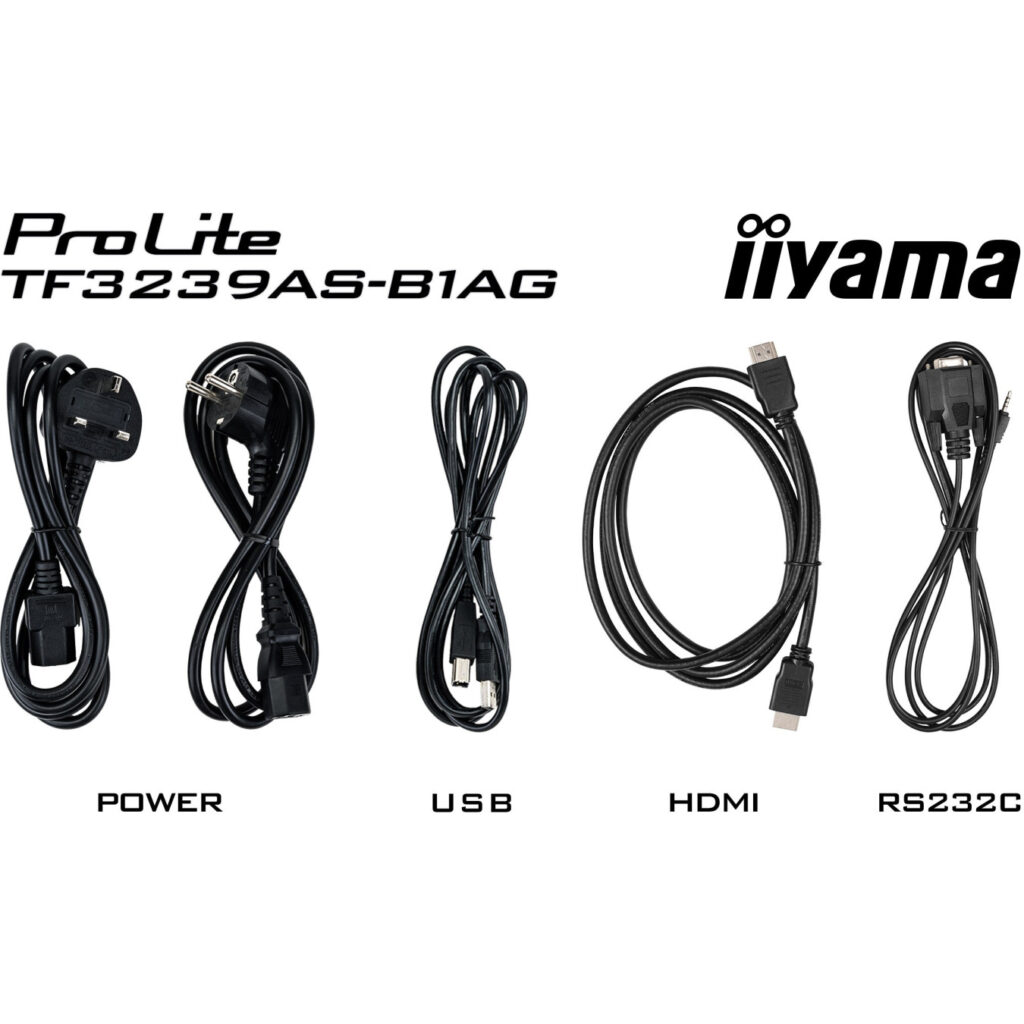

| Cables included | AC. DisplayPort. HDMI. USB |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | TCO Certified. CB. TÜV-Bauart. EAC. RoHS support. ErP. WEEE. REACH |
