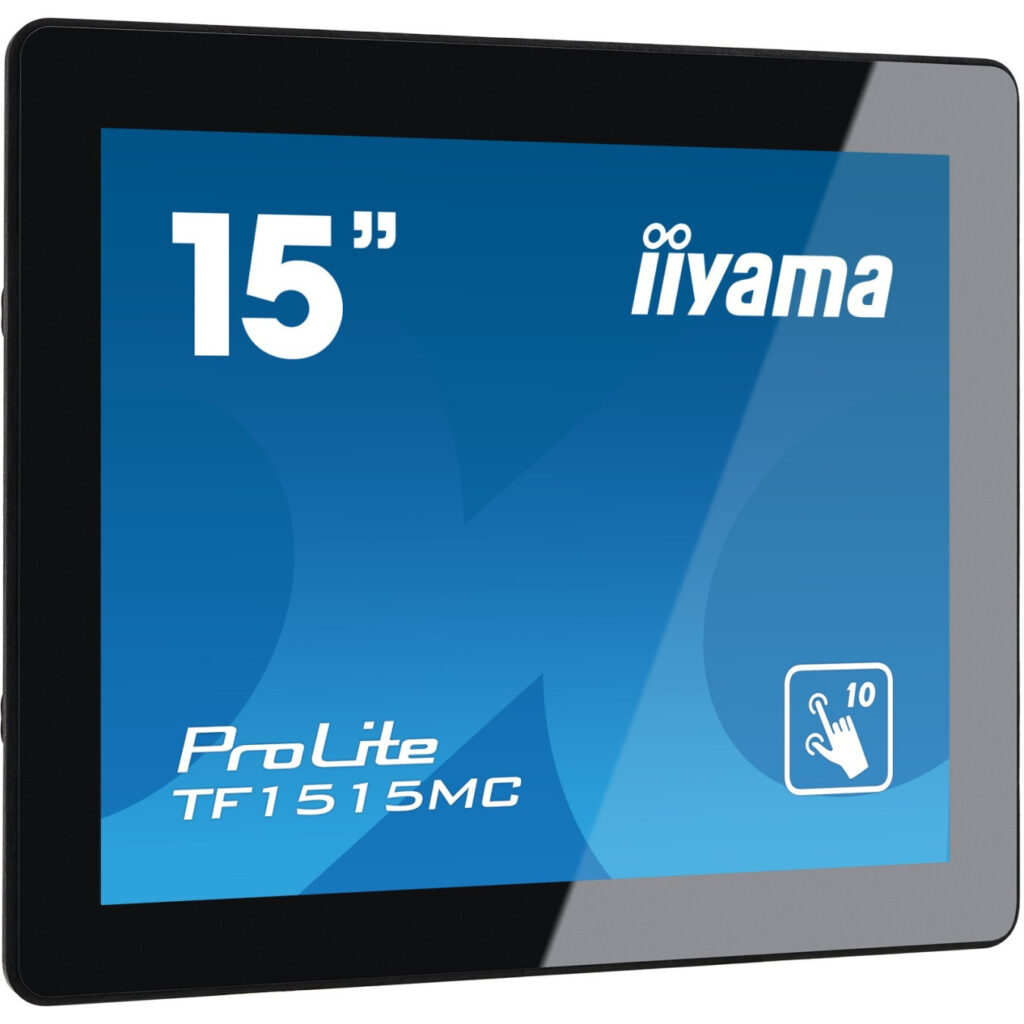

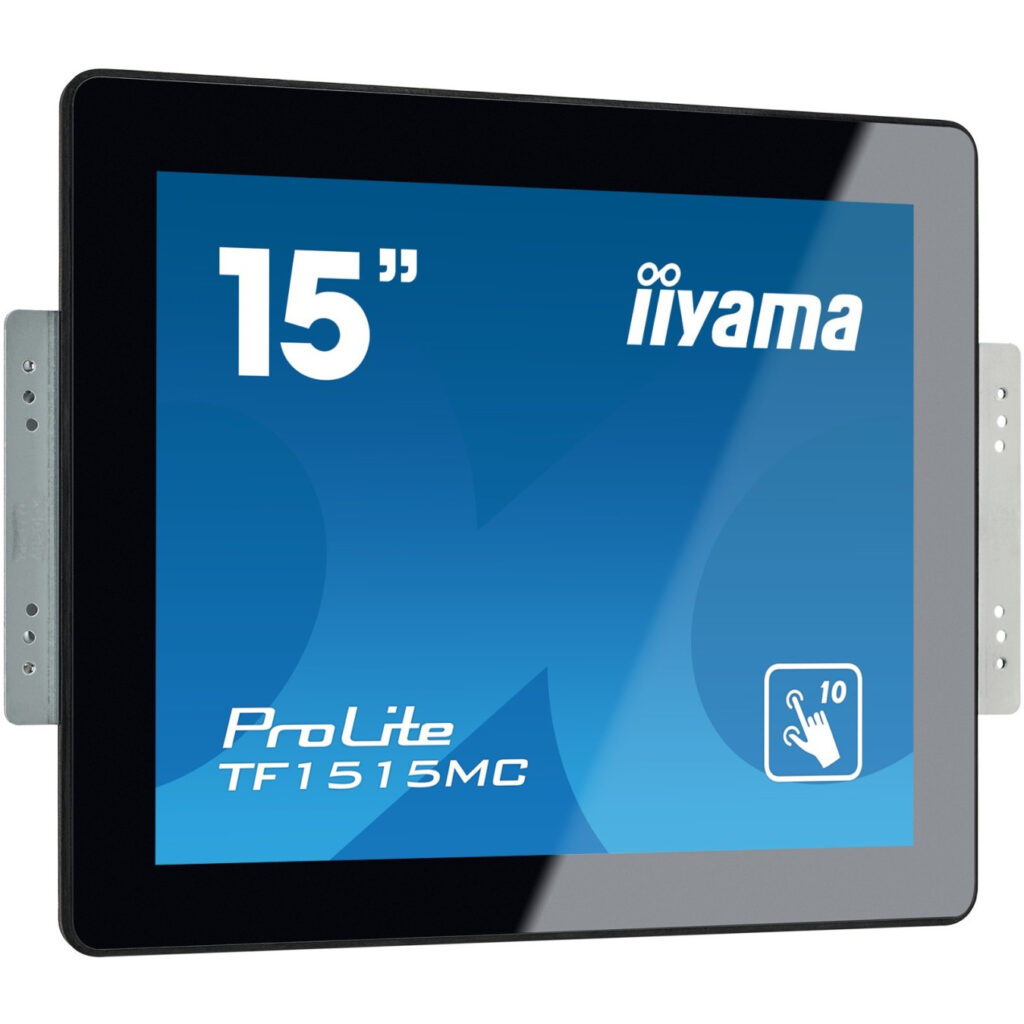

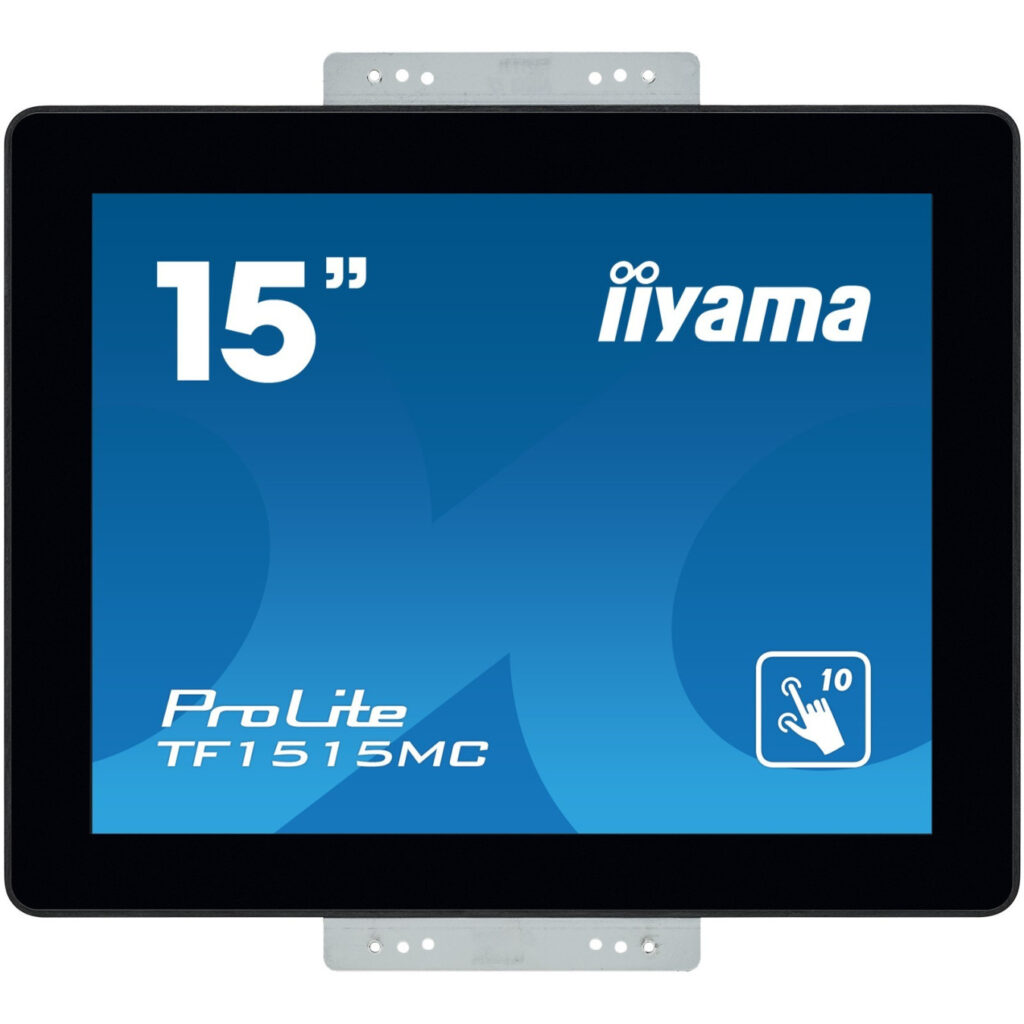

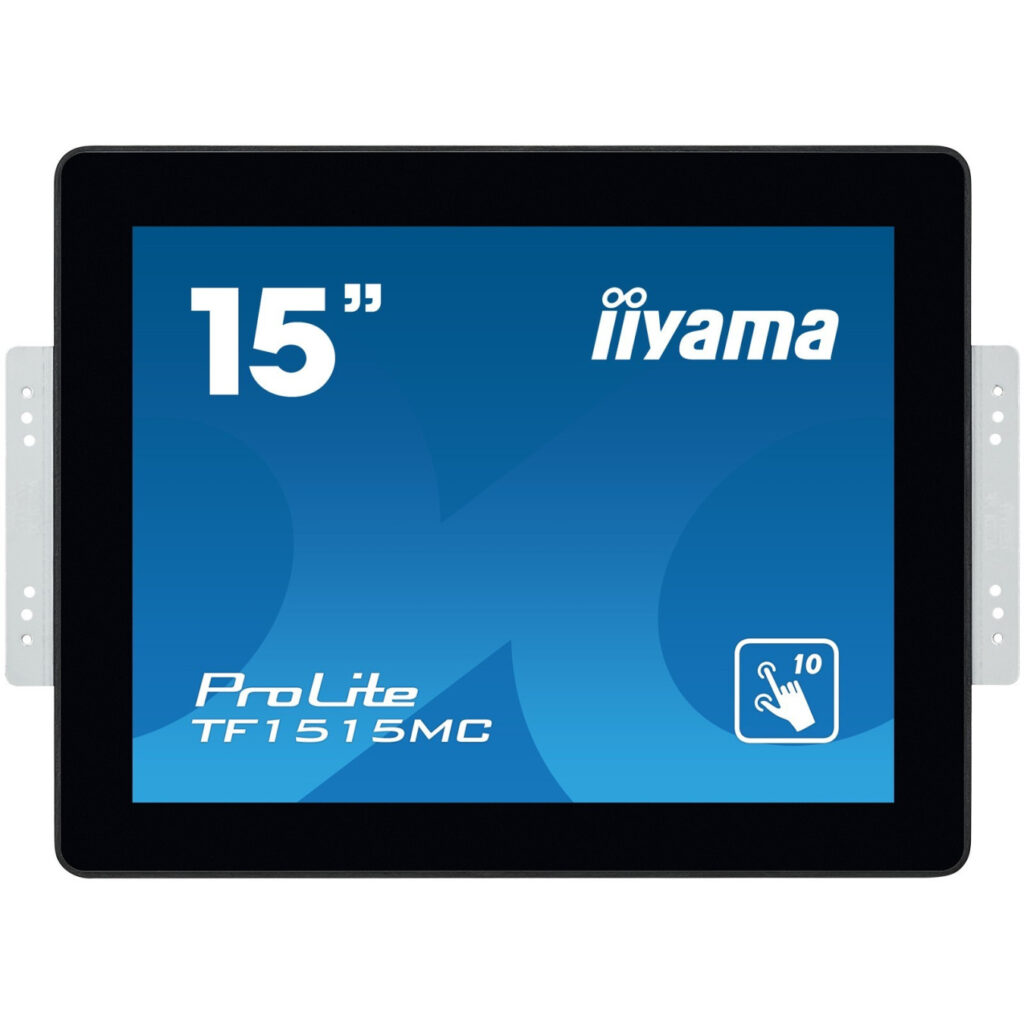

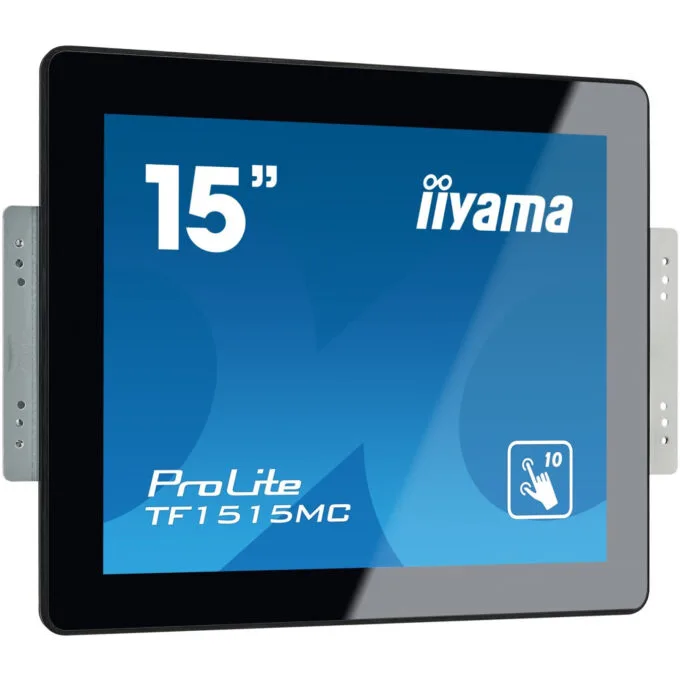

iiyama TF1515MC-B2 - 15" Open Frame PCAP Touchscreen (Black) - 4:3 XGA LED, HDMI & DisplayPort
Login

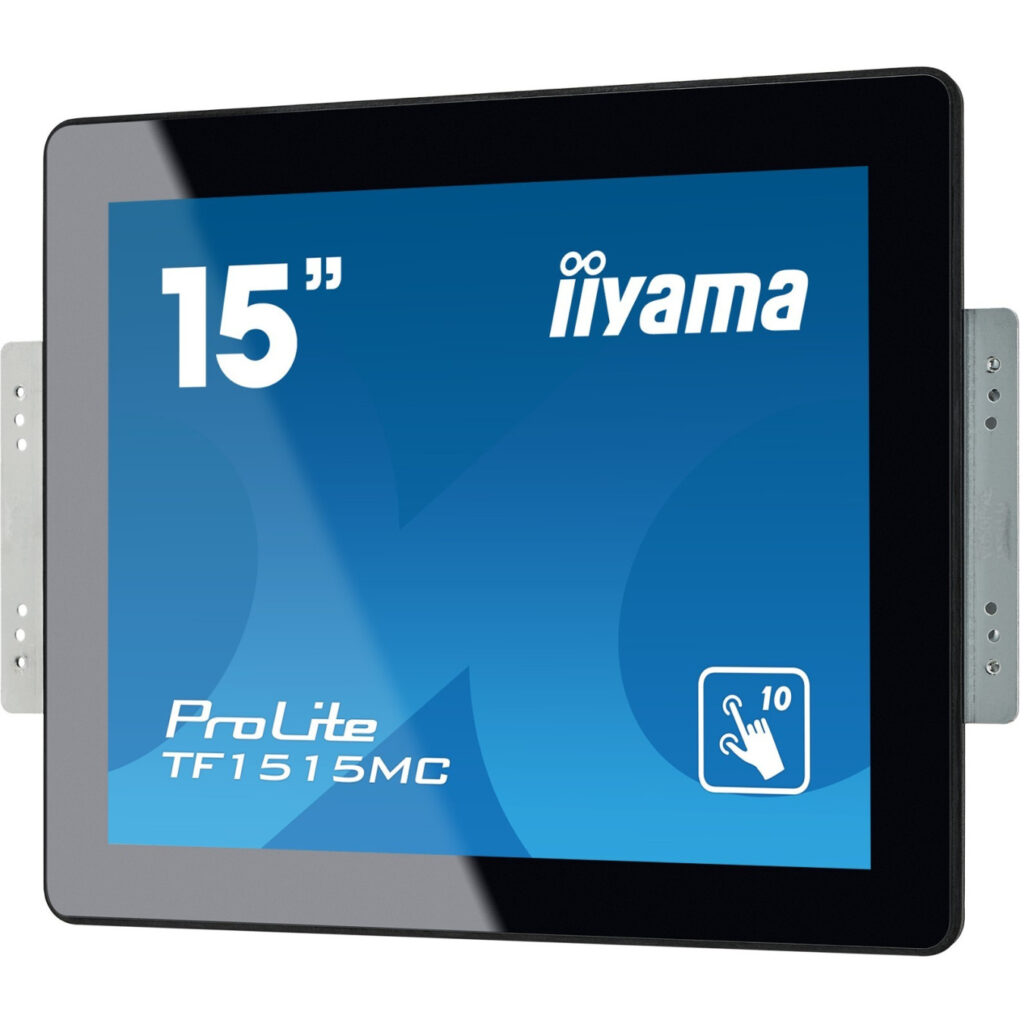

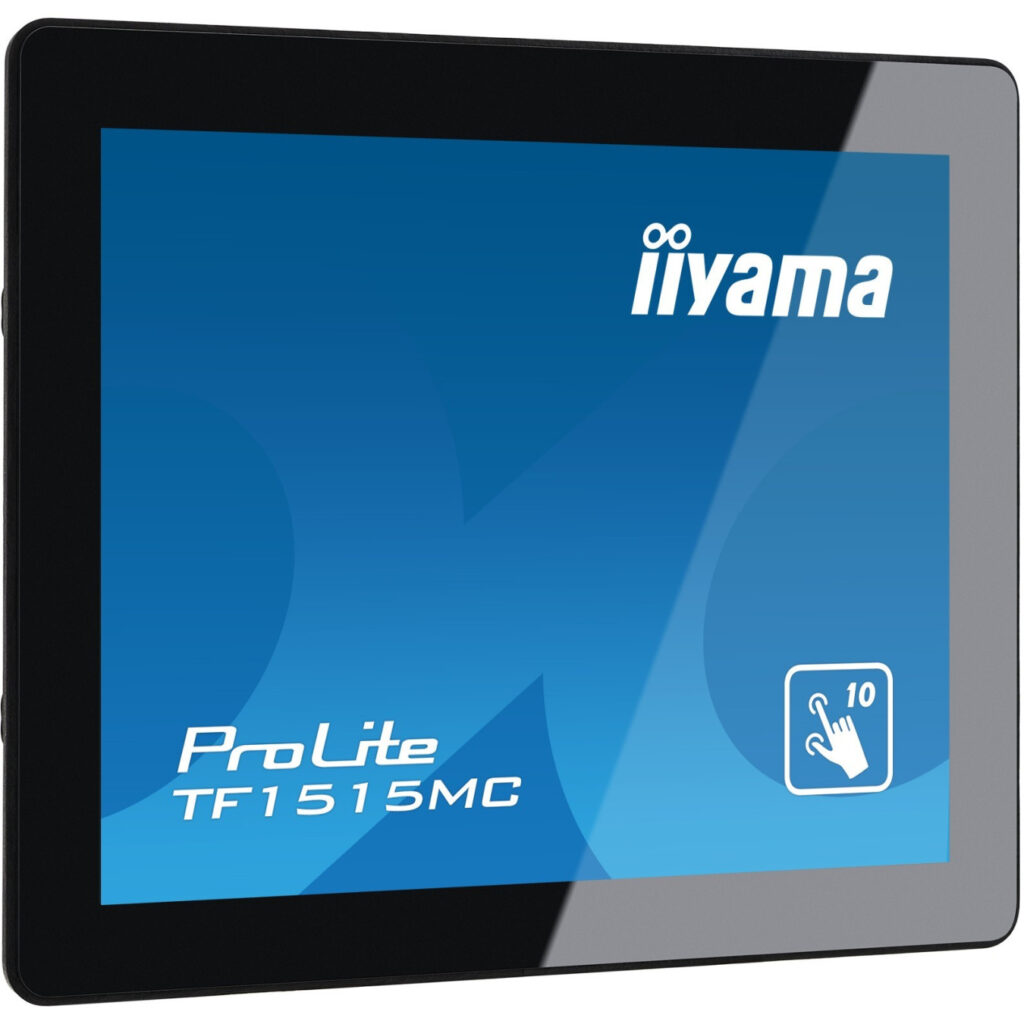

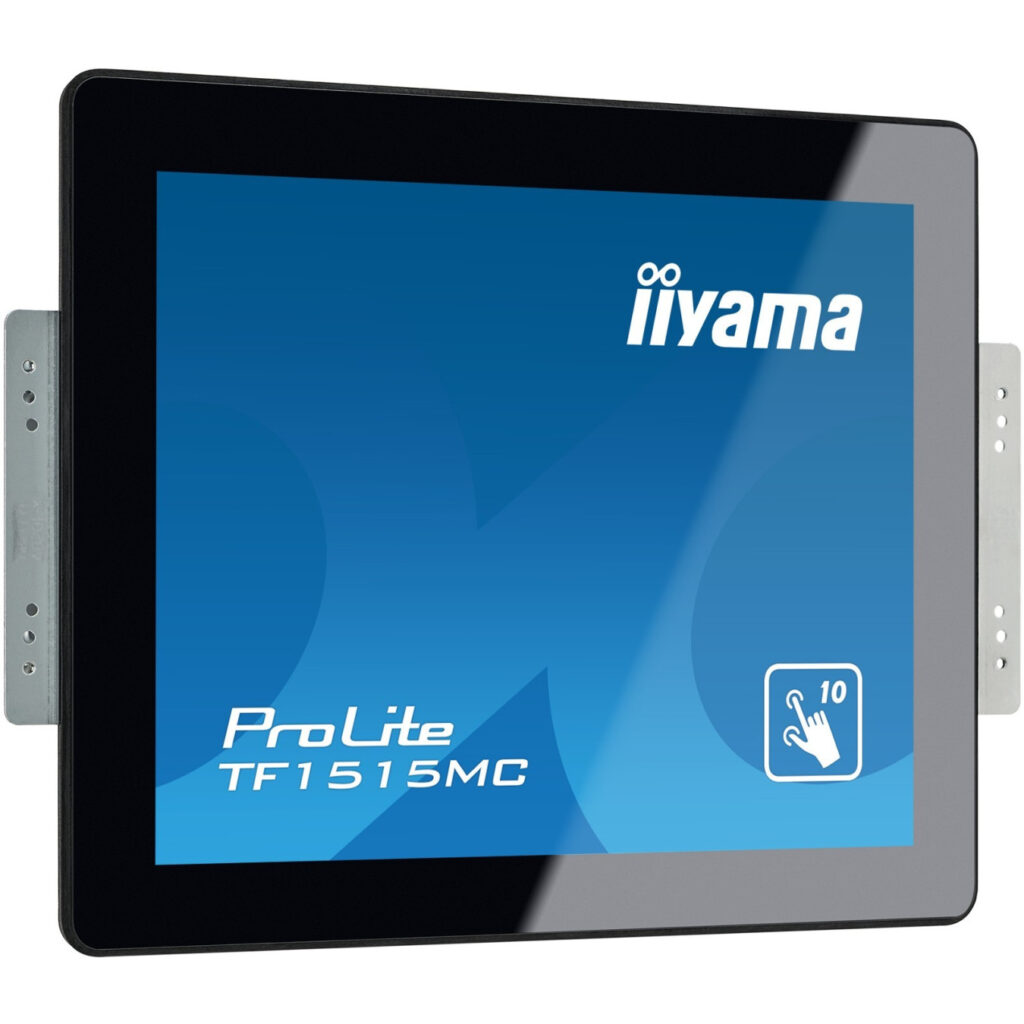

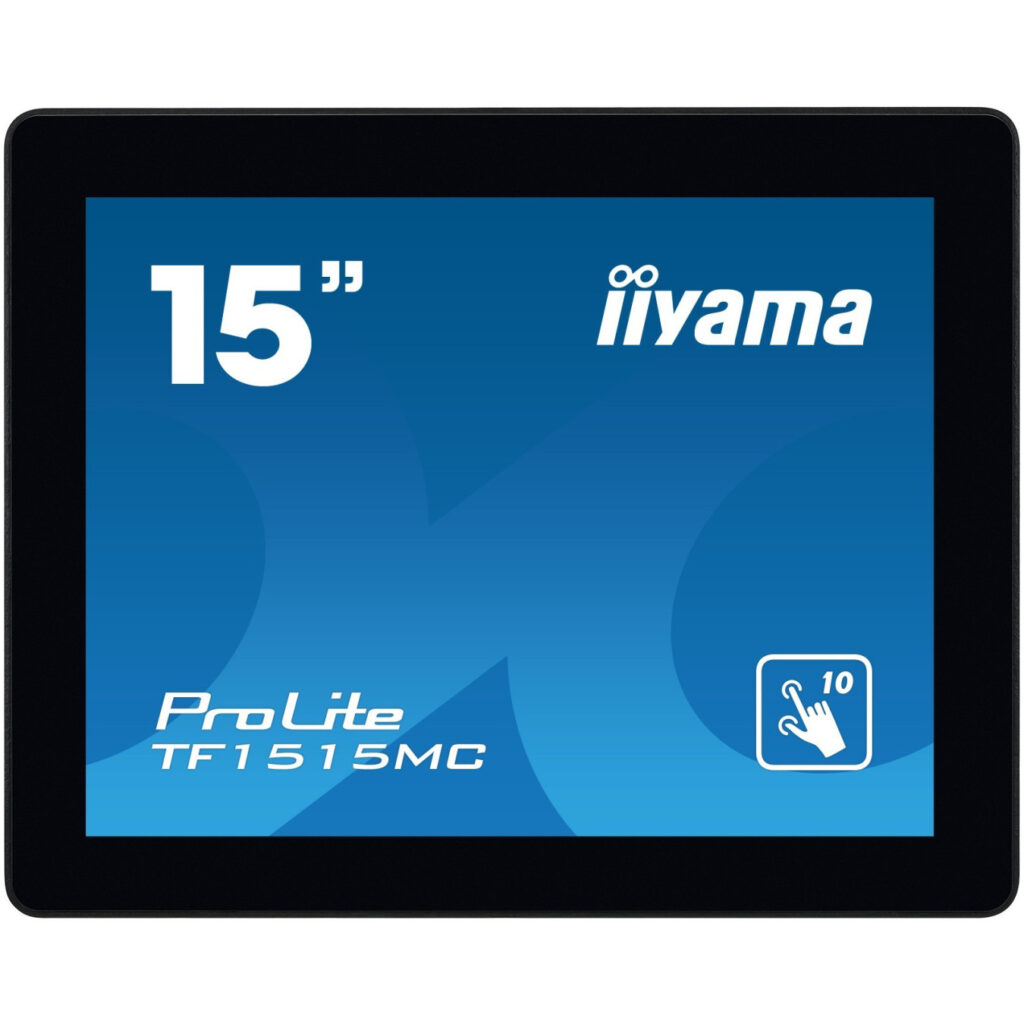

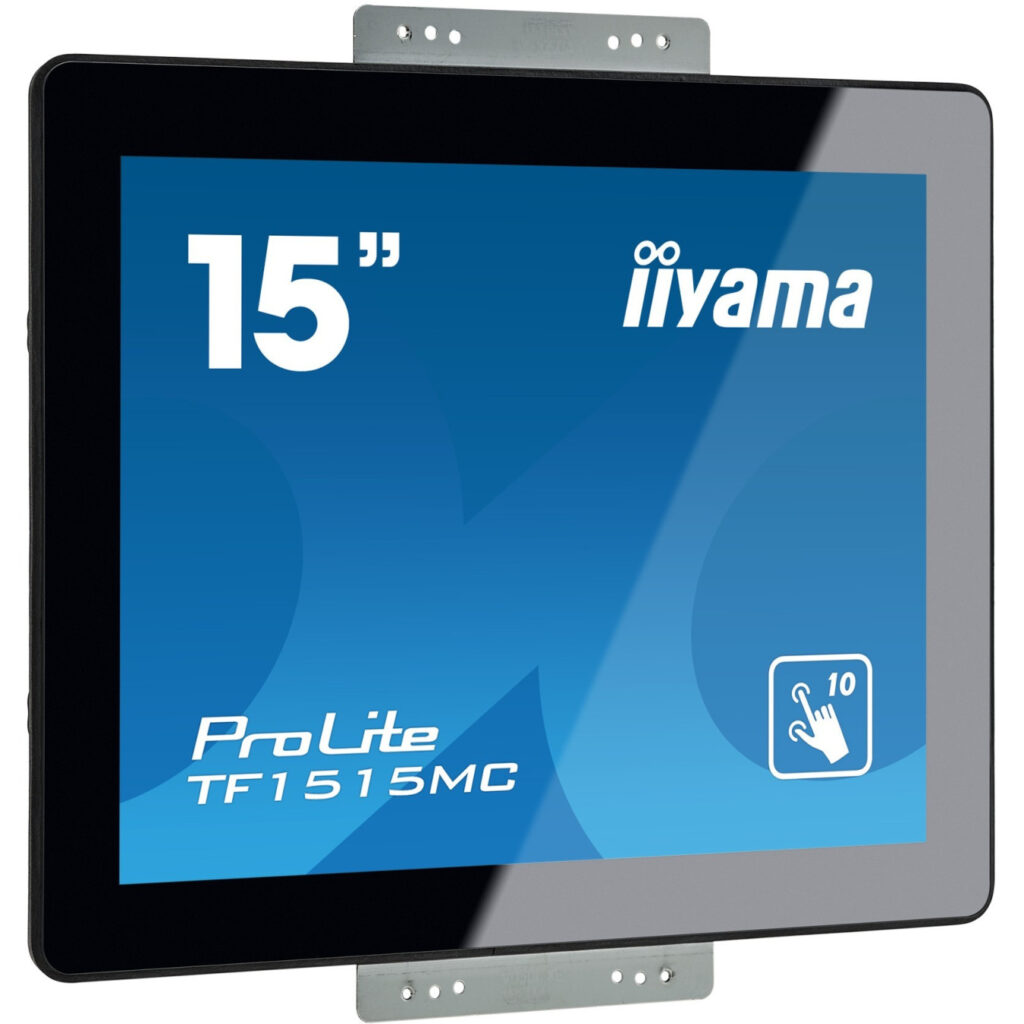

15″ iiyama TF1515MC-B2 open-frame PCAP 10-point touchscreen, touch-through-glass, 1024×768 (XGA), 350 cd/m², IP65 front, HDMI + DisplayPort, 75 Hz, LED TN panel.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
iiyama Open Frame PCAP 10 point touch screen equipped with touch through glass function. Display diagonal: 38.1 cm (15″). Display technology: LED. Display resolution: 1024 x 768 pixels. Display brightness: 350 cd/m². HD type: XGA. Touchscreen. Product colour: Black
| Panel type | TN |
| Display diagonal | 38.1 cm (15") |
| Display technology | LED |
| Display resolution | 1024 x 768 pixels |
| Display brightness | 350 cd/m² |
| HD type | XGA |
| Feature | Plug and Play |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 4:3 |
| Response time | 8 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle. horizontal | 160° |
| Viewing angle. vertical | 150° |
| Pixel pitch | 0.297 x 0.297 mm |
| Glass thickness | 6 mm |

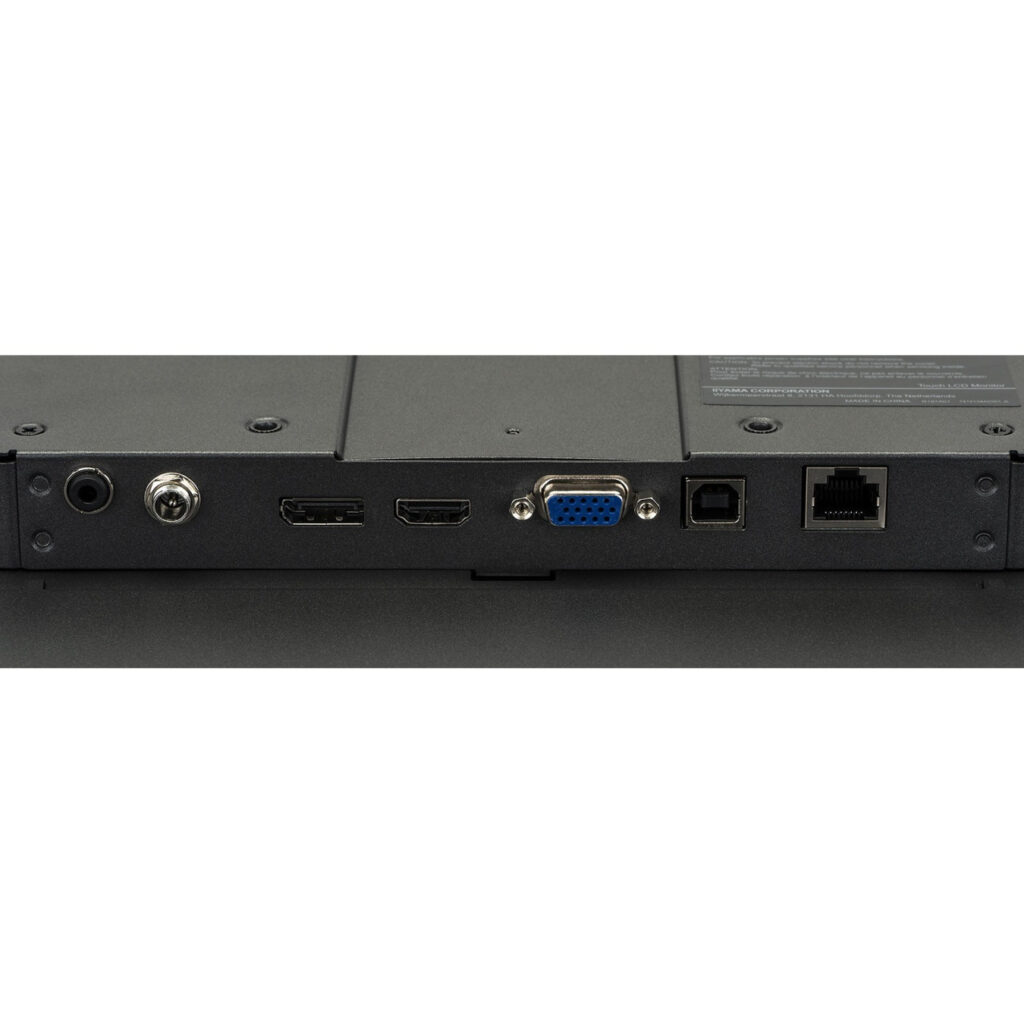

| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |

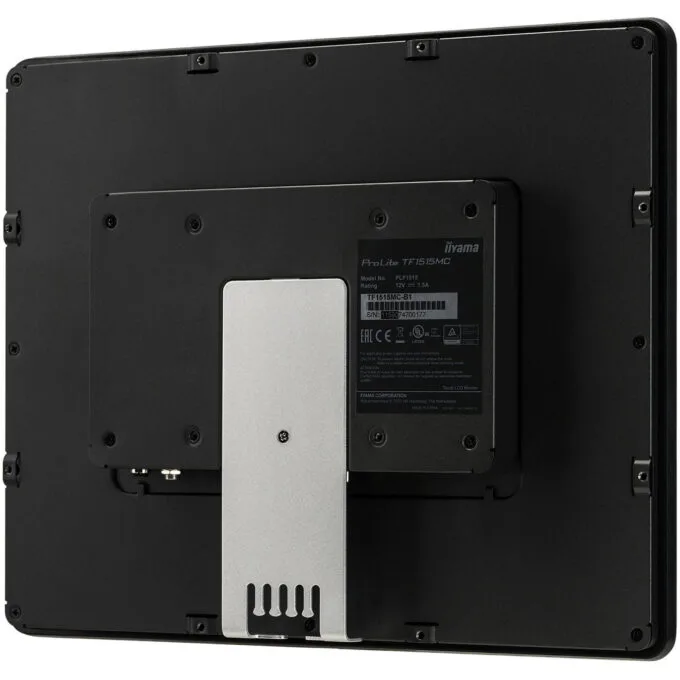

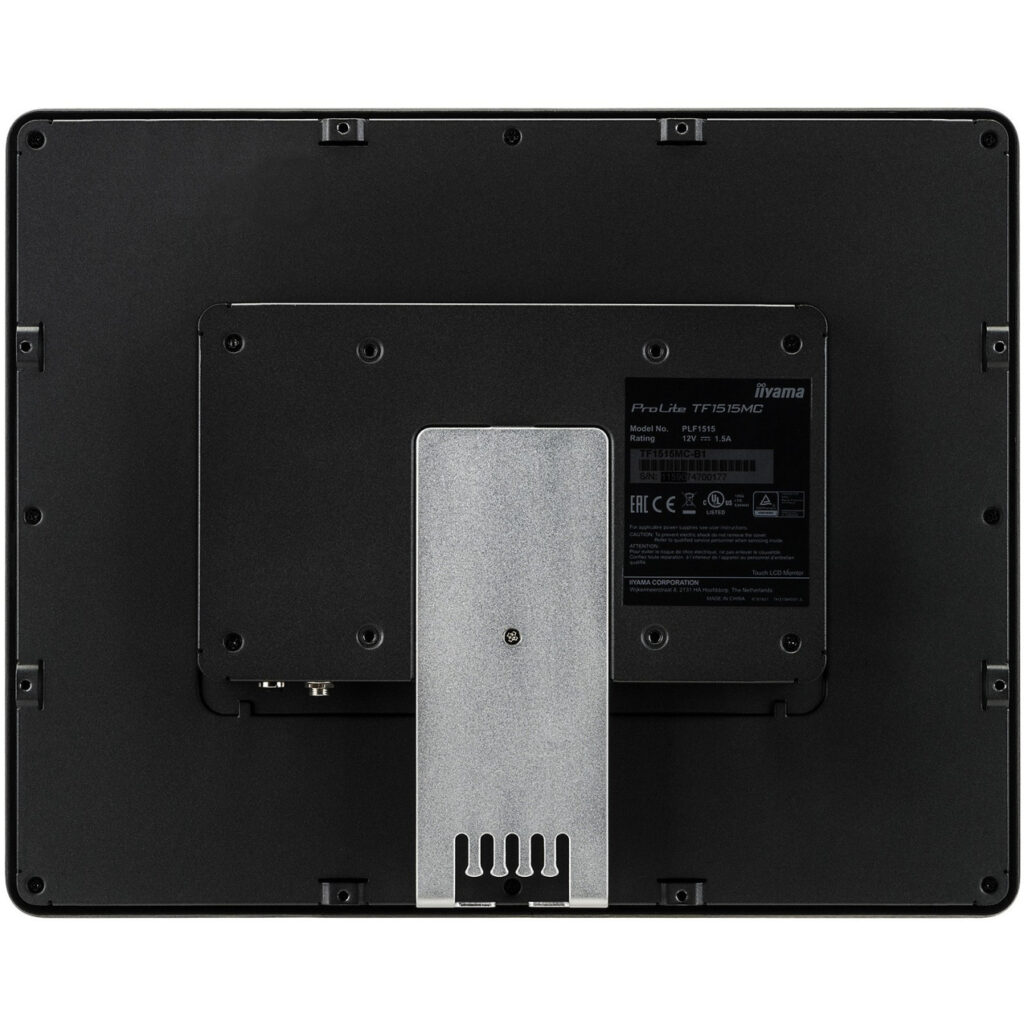

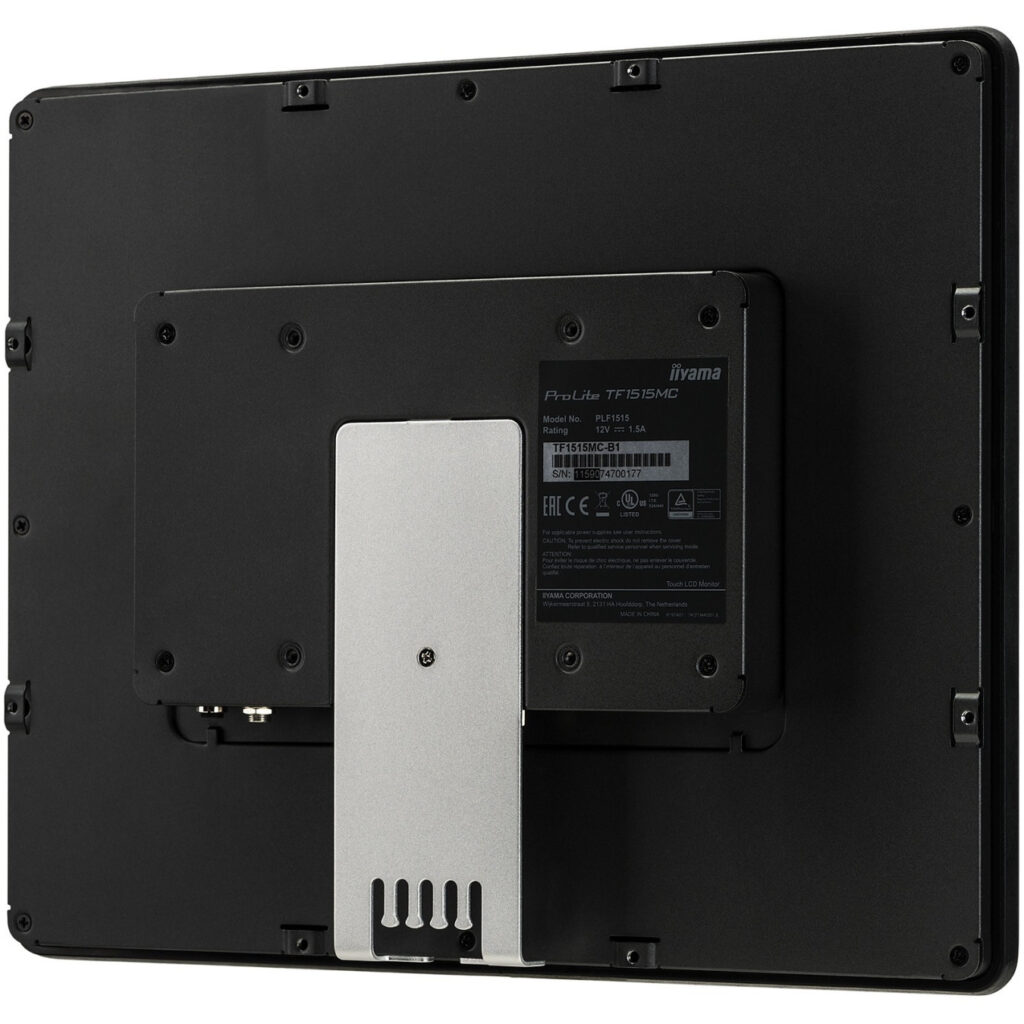

| Panel mounting interface | 100 x 100 mm |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese. German. English. Spanish. French. Italian. Japanese |
| International Protection (IP) code | IP65 |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 1.2 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Energy efficiency scale | A to G |
| Package width | 460 mm |
| Package depth | 175 mm |
| Package height | 470 mm |
| Package weight | 4.6 kg |

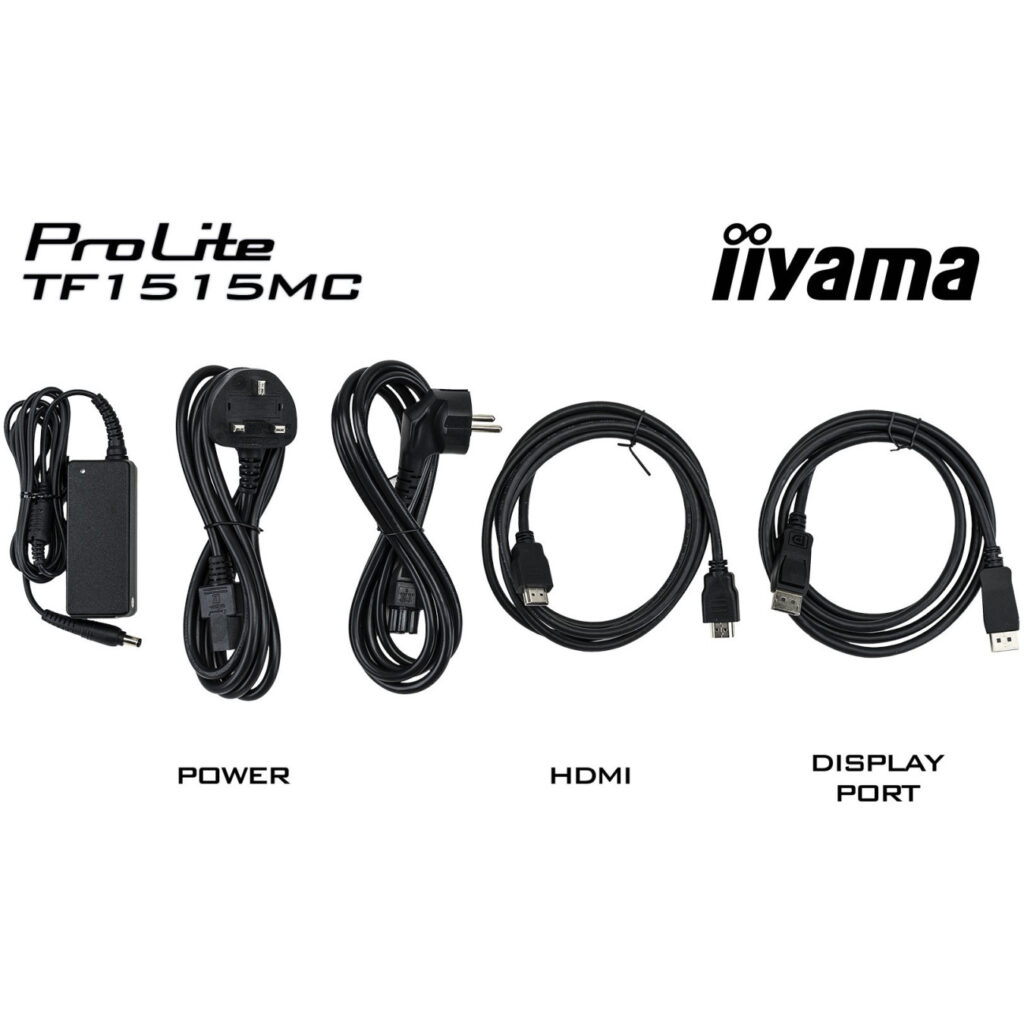

| Cables included | AC. DisplayPort. HDMI. USB |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CB. CE. TÜV-Bauart. EAC. cULus |
| Harmonized System (HS) code | 85285210 |
| European Product Registry for Energy Labelling (EPREL) code | 378636 |
| Maximum refresh rate | 75 Hz |
| Aspect ratio | 4:3 |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| Height (without stand) | 41.5 mm |
| Weight (without stand) | 2.9 kg |
| Depth (without stand) | 291 mm |
| Power supply type | AC/DC |
