HDL Panel SOURCE 7 Touch Screen Black
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Output channel : KNX interface: 2CH, 5A/CH Resistive load: ≤660W/CH Capacitive load: ≤200W/CH
- Communication protocol: HDL LINK, WiFi, RJ45
- Master chip: PX30
- Storage capacity: 2+8GB
- Operating frenquency: 2.4GHz, 5GHz
- Operating system : Android
- Ethernet interface: RJ45
- TF card : Max 64GB

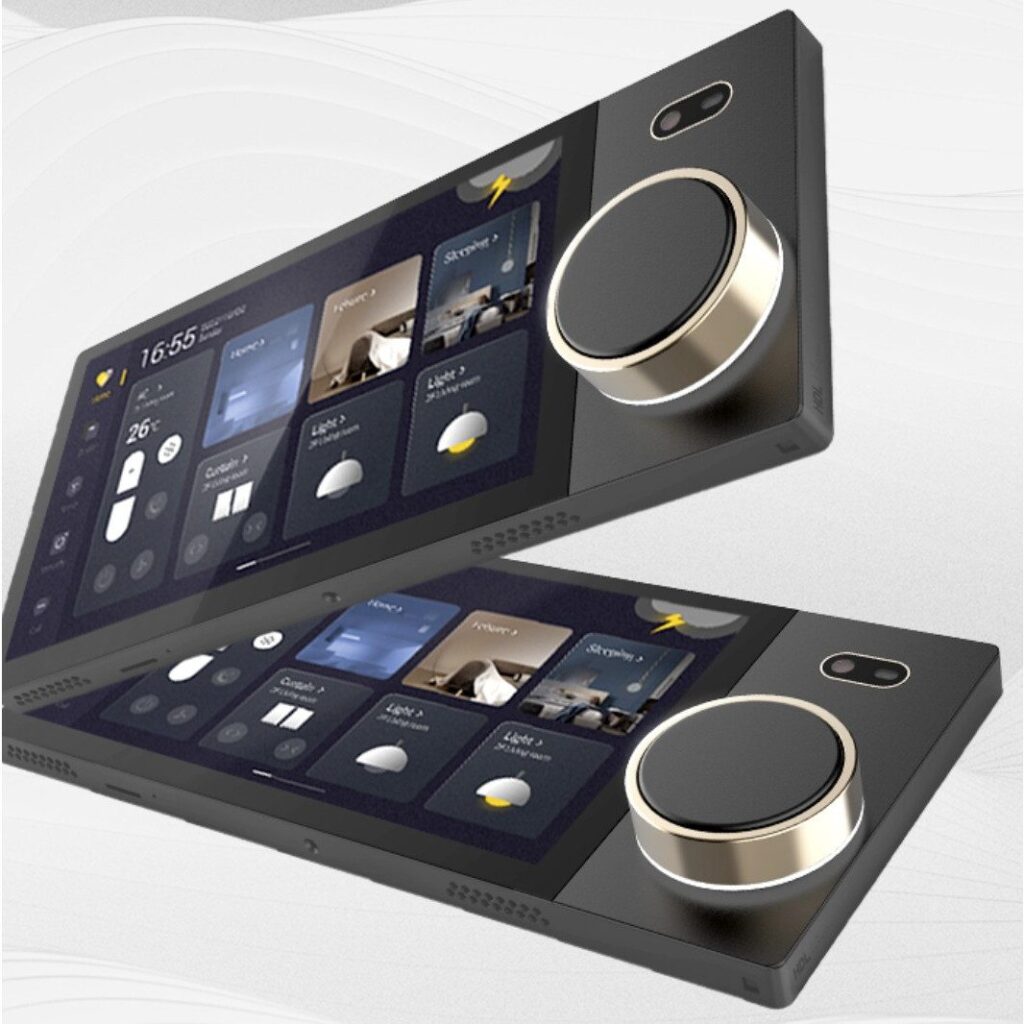

- Touch screen: 7-inch capacitive touch screen, available for multi-touch; Resolution: 1280*720
- Knob: Users can turn the knob to adjust the light brightness, curtain open/close percentage, media volume, temperature, or fan speed. Knob-operated control: turn clockwise/counter-clockwise, short press, long press. The knob lighting is with RGB lamp beads.
- Camera: 5-megapixel camera; manual-operated on/off
- Microphone: Four microphones are located at the top of the touch screen. The voice detecting range is within 3m around the touch screen.
- Speaker: Dual speaker, 0.8W*2
- Proximity sensor : Once the sensor detects near human motion, touch screen automatically wakes up. The detecting range is within 15cm around the touch screen.
- Temperature & humidity sensor: Real-time monitor environment status
- Knob-operated control, including turn clockwise/counter-clockwise, short press, long press
- Temperature & humidity monitoring: built-in temperature & humidity sensor for monitoring real-time environment status.
- Proximity detection: Built-in proximity sensor for detecting human motion. Once the sensor detects near human motion, the touch screen automatically wakes up.
Requires Power Interface MPWS2R1ETH-KT.18 (not included)
https://www.mstronics.com/p/22235/hdl-mpws2r1eth-kt-18-source-knx-interface.html
