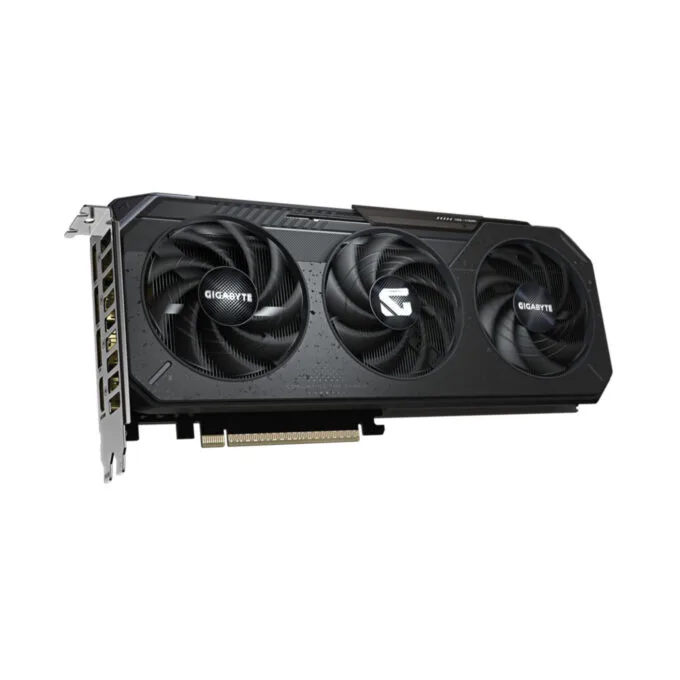

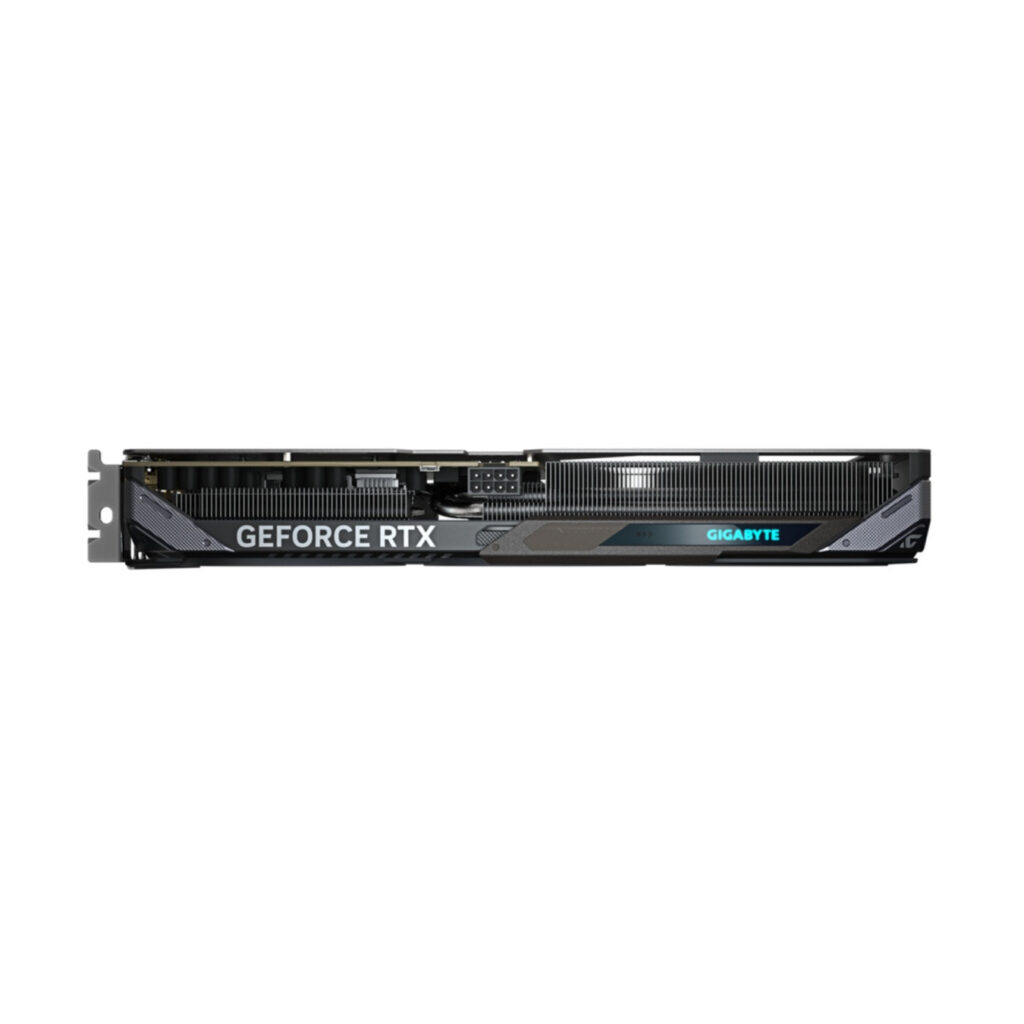

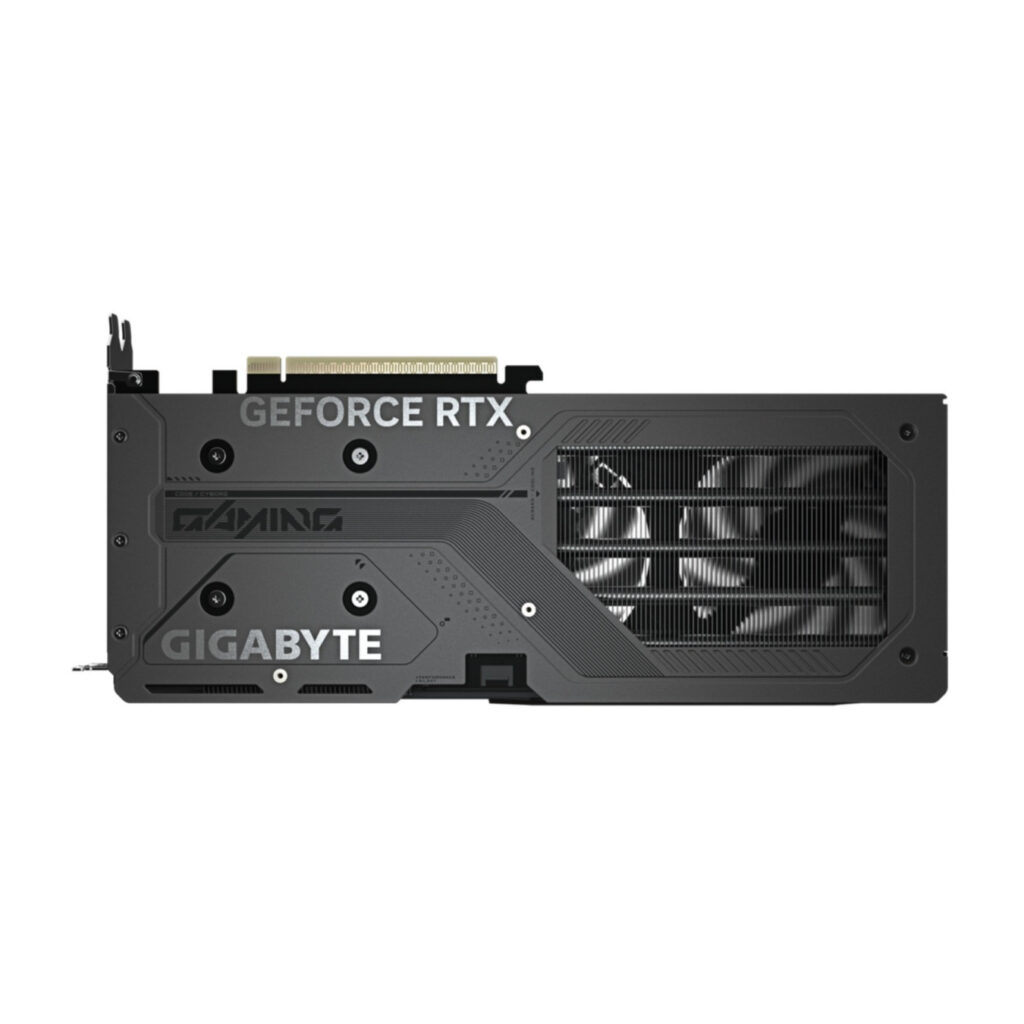

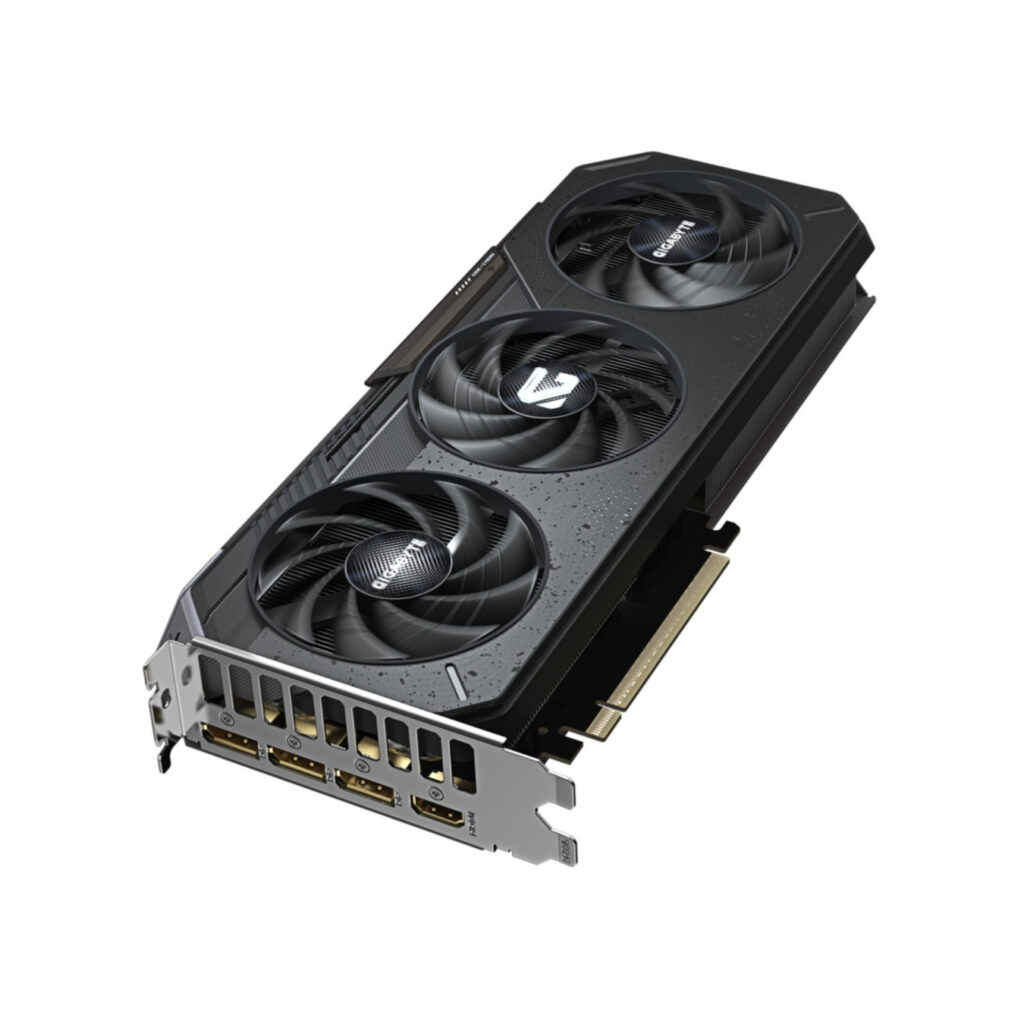

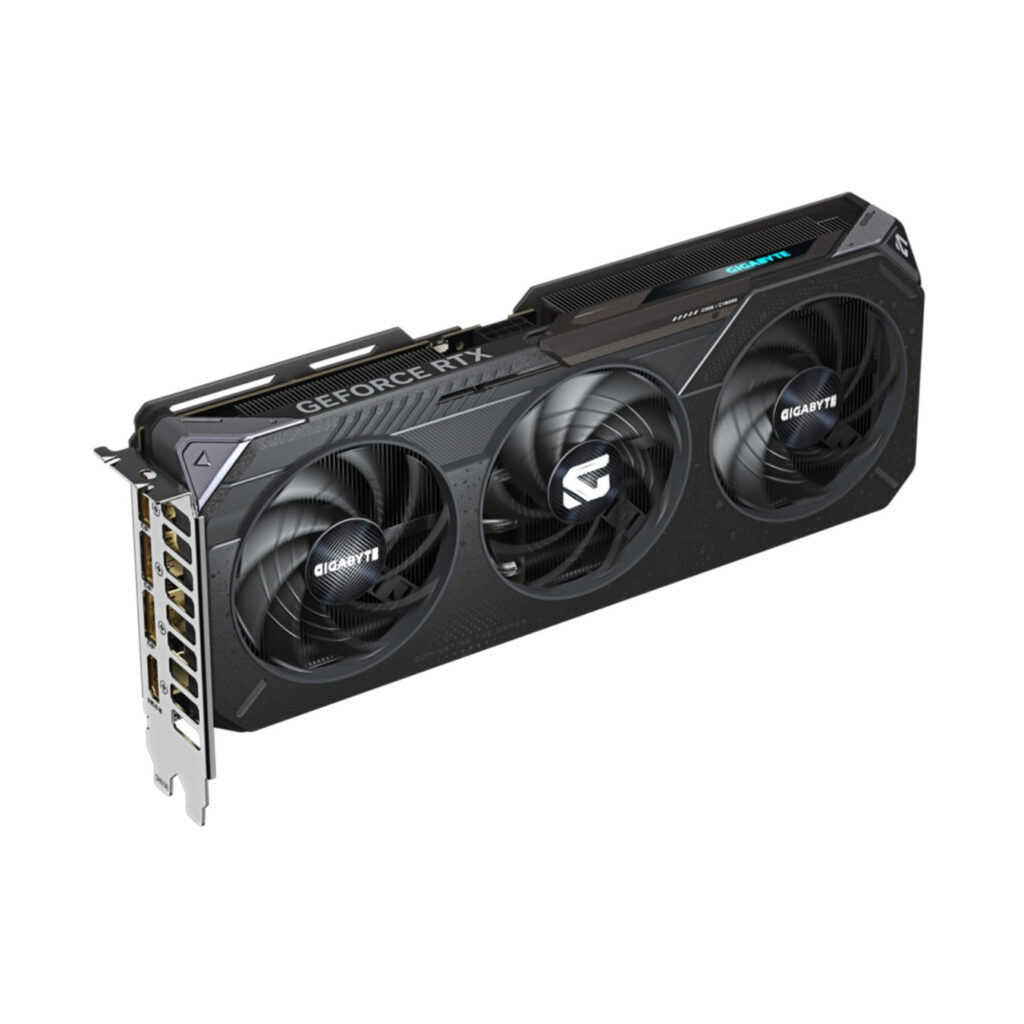

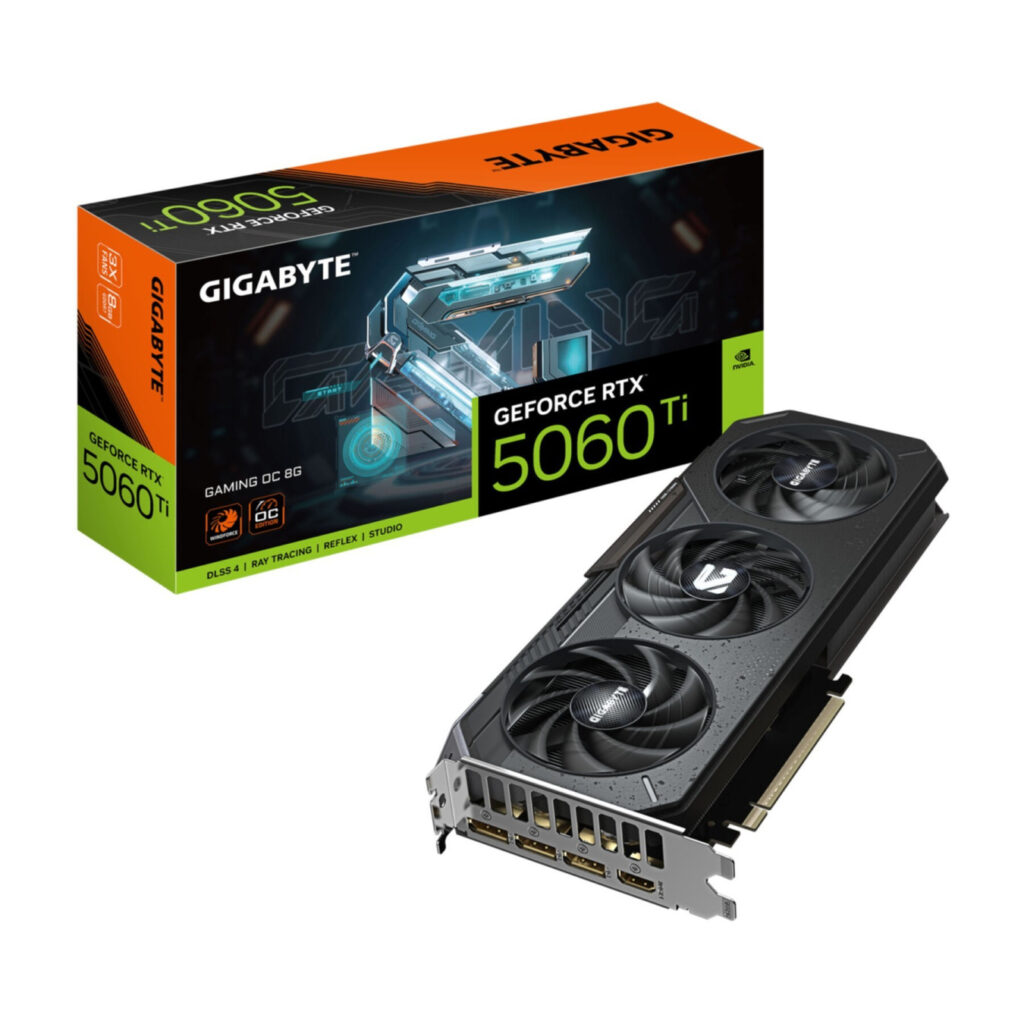

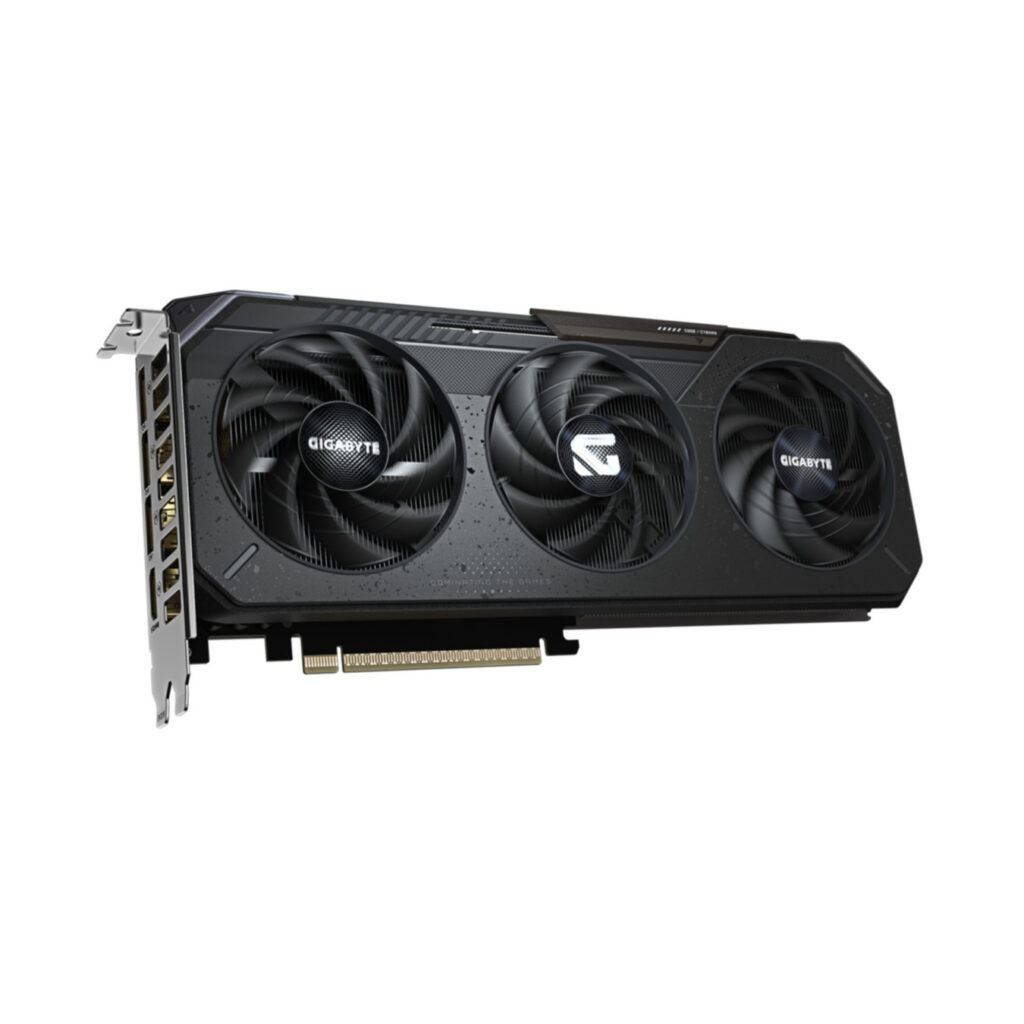

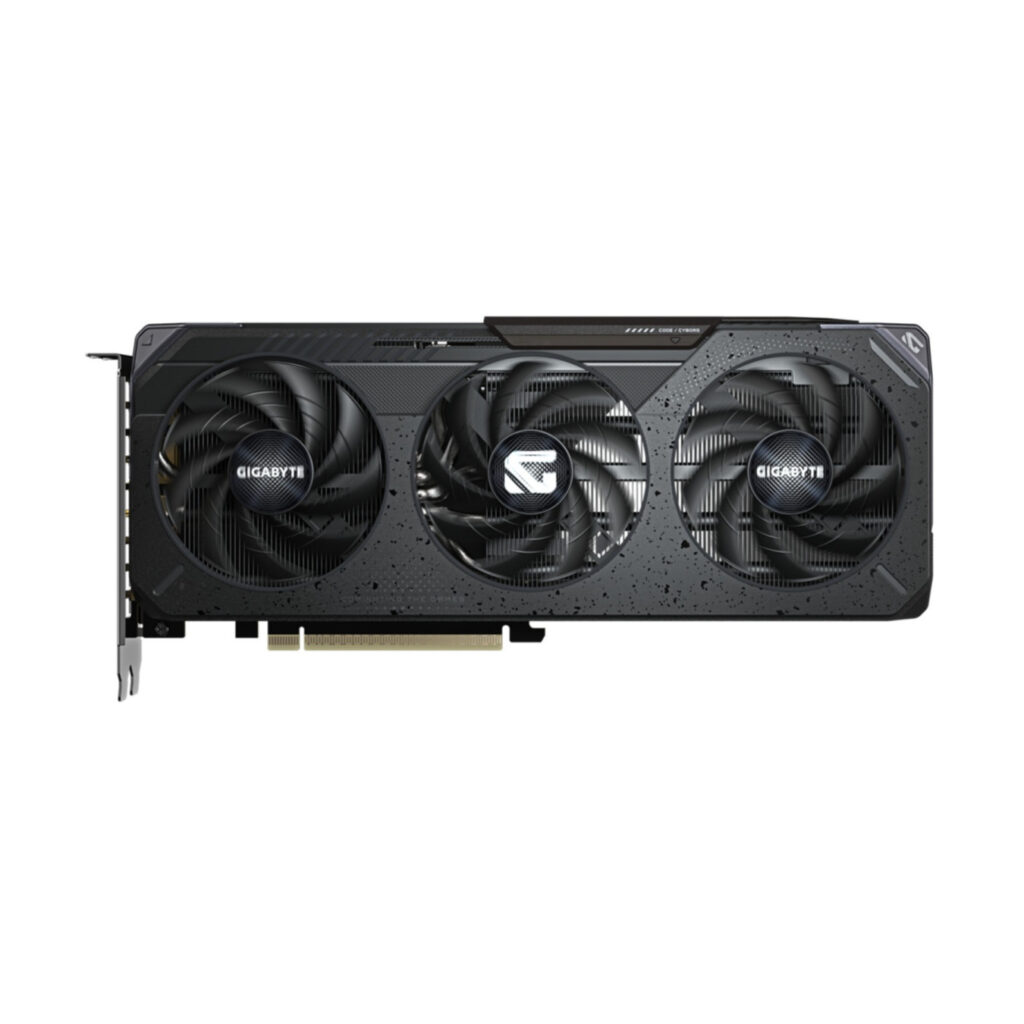

GIGABYTE GeForce RTX 5060 Ti Gaming OC 8GB GDDR7 2647MHz Black WINDFORCE 3X
GeForce RTX 5060 Ti Gaming OC: 8GB GDDR7 (128-bit/28Gbps), 2647MHz boost, PCIe 5.0 x8, WINDFORCE 3X cooling. 1xHDMI 2.1b, 3xDP 2.1b. Blackwell arch w/DLSS 4. 650W PSU. 281mm length.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The GIGABYTE GeForce RTX 5060 Ti GAMING OC 8G delivers next-gen performance powered by NVIDIA Blackwell architecture. Featuring 8GB GDDR7 memory on a 128-bit bus at 28Gbps, it boosts up to 2647MHz for smooth 1440p/4K gaming with DLSS 4 Multi Frame Generation and full ray tracing via 4th-gen RT Cores.
WINDFORCE 3X cooling with Hawk fans and server-grade thermal gel keeps temps low under load. Composite heat-pipe and large vapor chamber ensure optimal heat transfer. Dual BIOS offers Performance/Silent modes, RGB lighting adds style. Supports 4 displays at 7680×4320 max resolution.
- 4608 CUDA Cores for AI-accelerated tasks & gaming
- PCIe 5.0 x8 interface, 1x 8-pin power (650W PSU recommended)
- HDMI 2.1b x1, DisplayPort 2.1 x3
- DirectX 12 Ultimate, OpenGL 4.6, NVIDIA Reflex 2
- 2-slot design: 281 x 119 x 40 mm, 800g
| Overclocked (OC) edition | Yes |
| CUDA cores | 4608 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 Ti |
| Processor frequency | 2647 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express x8 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Warranty period | 3 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Black |
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 180 W |
| Weight | 800 g |
| Length | 281 mm |
| Depth | 40 mm |
| Height | 119 mm |
| Package width | 182.5 mm |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package weight | 1.35 kg |
| Package type | Box |
| Products per shipping (inner) case | 1 pc(s) |
| Architecture | Blackwell |
| DLSS Support | DLSS 4 |
