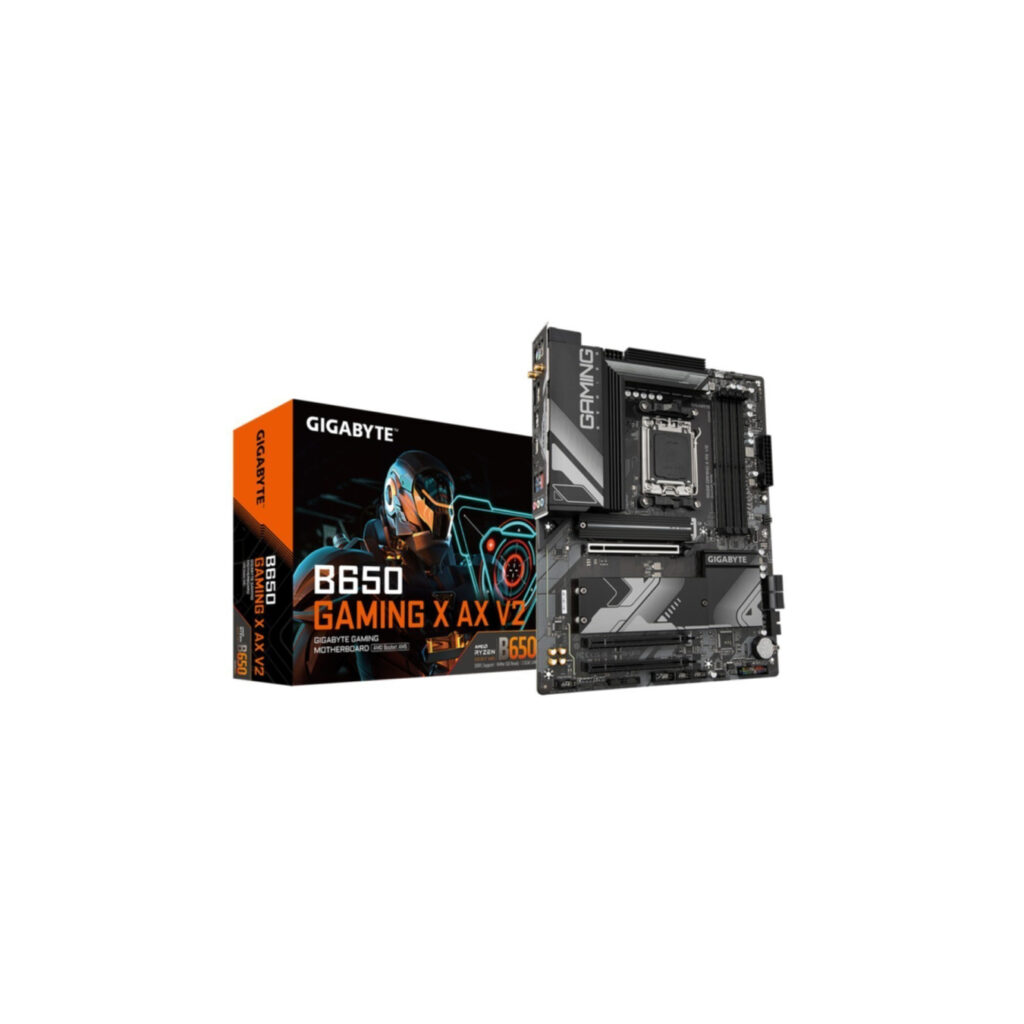

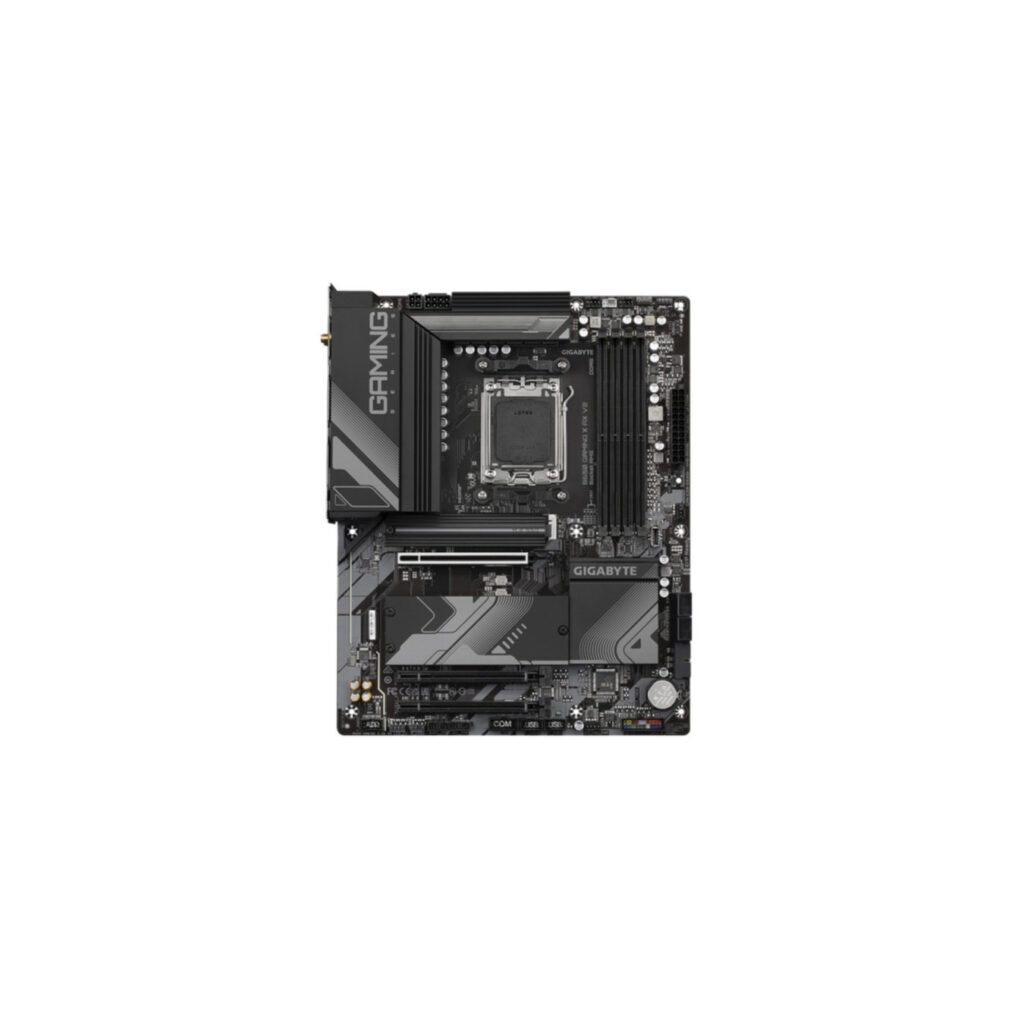

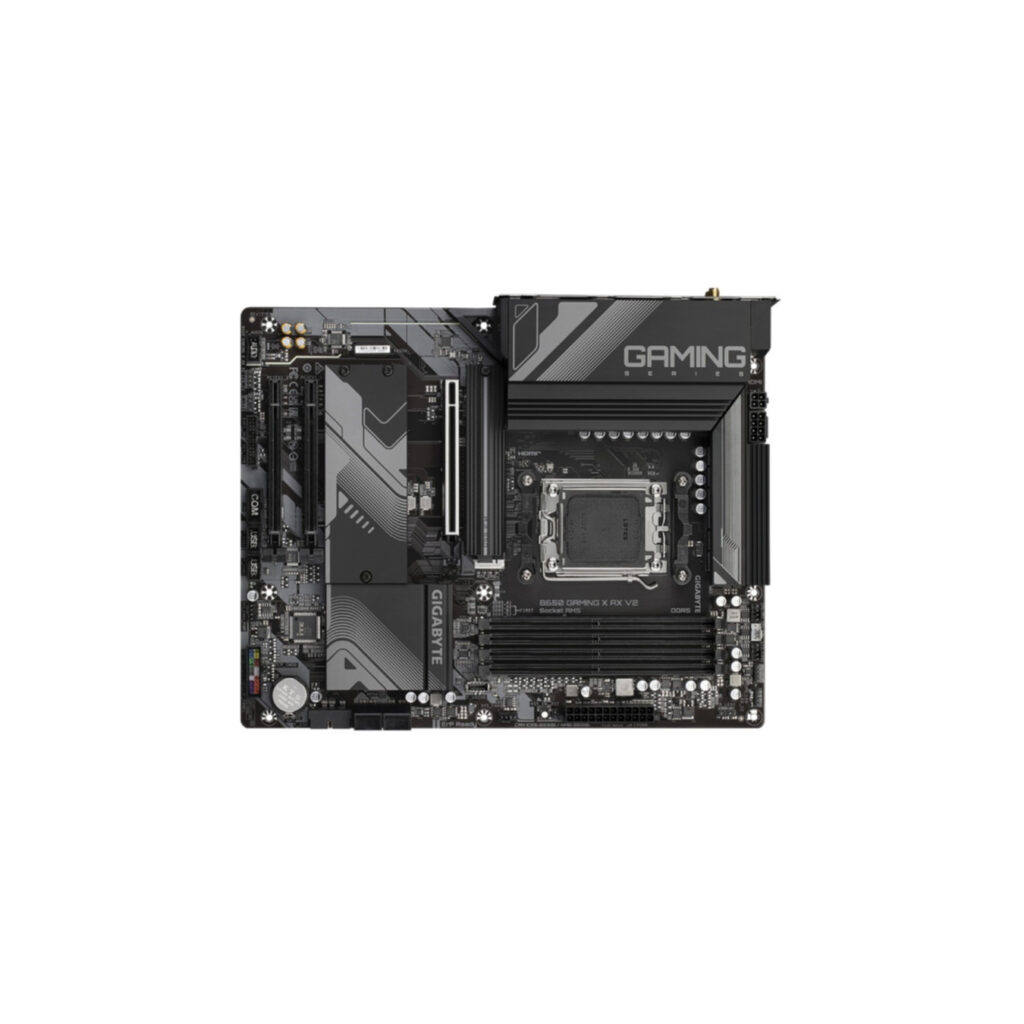

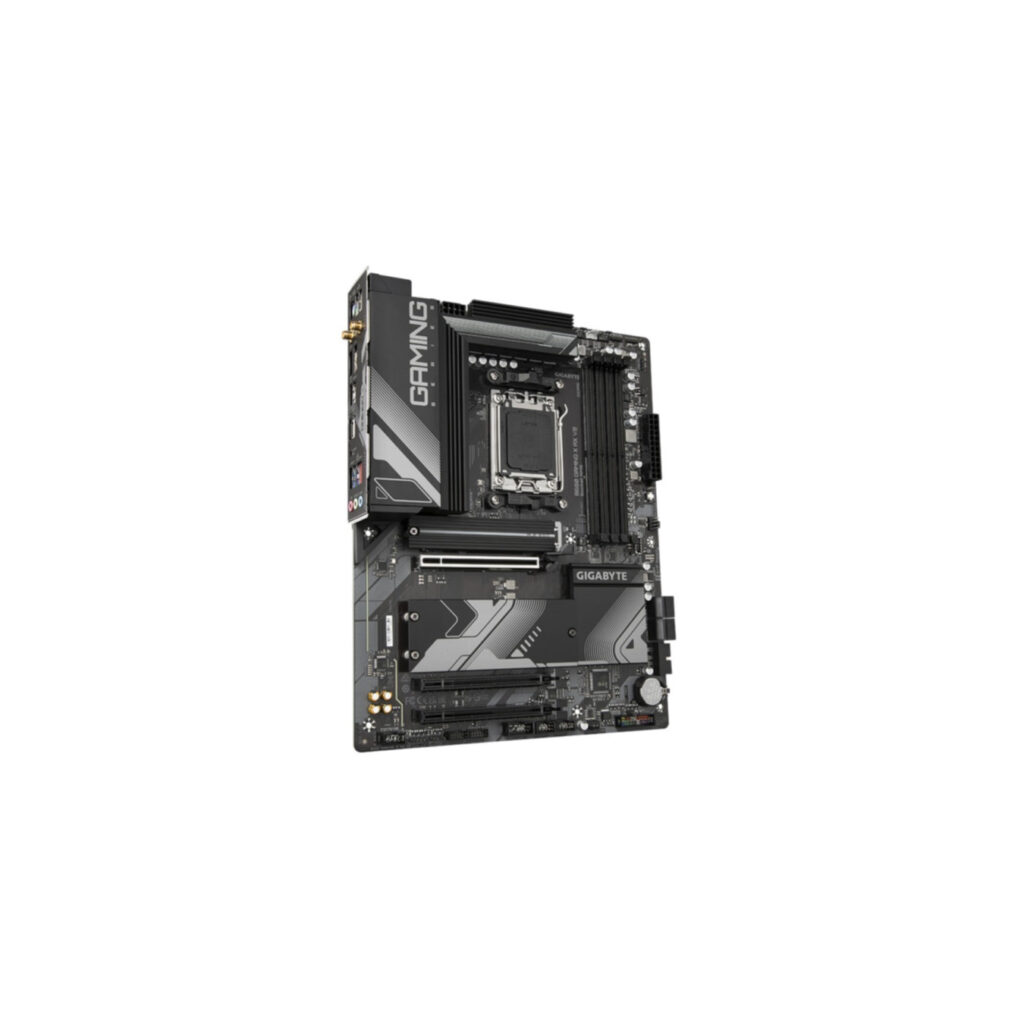

GIGABYTE B650 Gaming X AX V2 AM5 ATX DDR5 Motherboard
AMD B650 ATX motherboard for AM5 socket. Supports Ryzen 7000/8000/9000, DDR5 up to 256GB, PCIe 5.0 M.2, WiFi 6E, 2.5GbE. 8+2+2 VRM, EXPO/XMP, Q-Flash Plus.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The GIGABYTE B650 Gaming X AX V2 delivers robust performance for AMD Ryzen 7000/8000/9000 series processors on the AM5 platform. Featuring a direct 8+2+2 phase digital VRM with advanced thermal design, it ensures stable power delivery even under heavy loads or overclocking. Dual-channel DDR5 support with 4 DIMM slots (up to 256GB) includes AMD EXPO and Intel XMP profiles for easy memory overclocking.

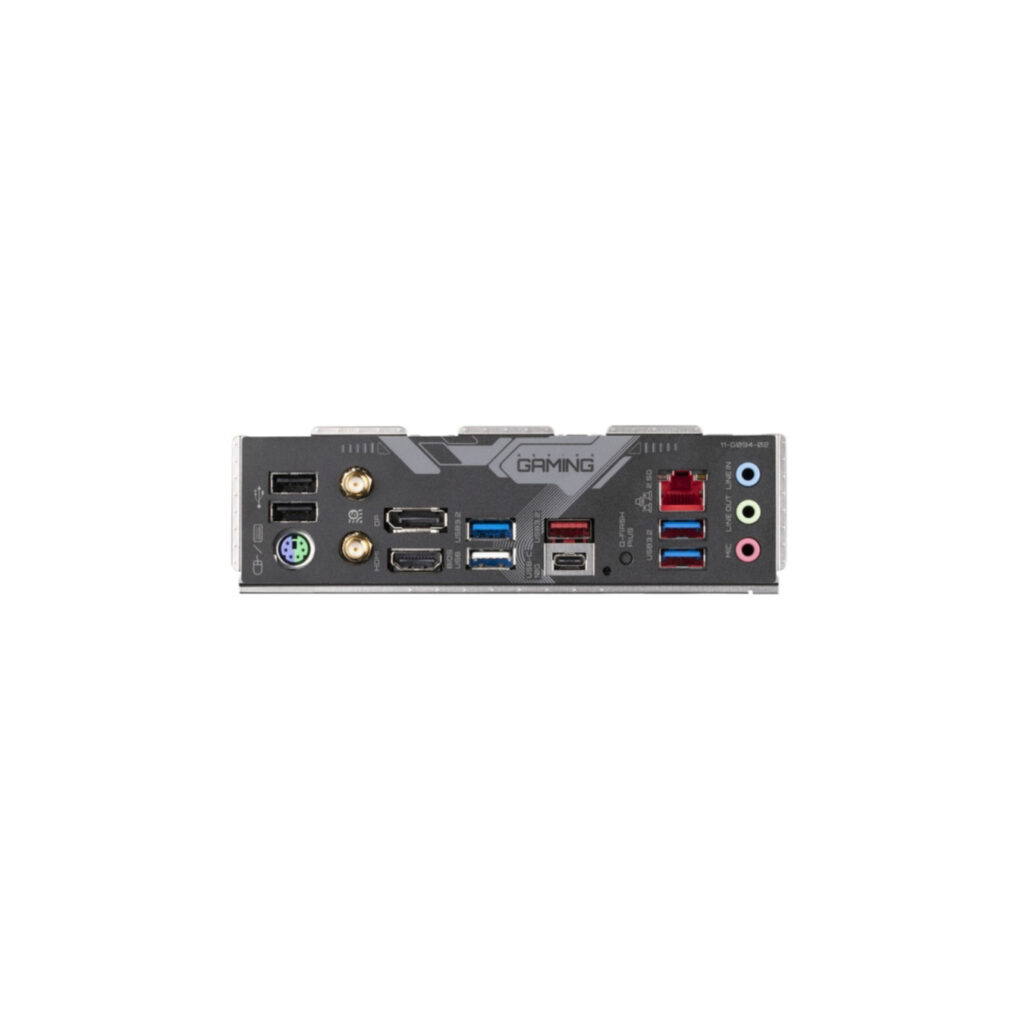

Storage options are future-proofed with 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) featuring M.2 Thermal Guard, plus 4x SATA III ports. Connectivity shines with Realtek 2.5GbE LAN, Wi-Fi 6E (MediaTek MT7922), Bluetooth 5.3, rear USB-C 10Gbps, front USB-C 20Gbps header, HDMI 2.1, and DisplayPort 1.4. Smart Fan 6 provides hybrid fan headers with FAN STOP for quiet operation.
- ✅ PCIe 5.0 M.2 + Q-Flash Plus for BIOS updates without CPU/RAM/GPU
- ✅ EZ-Latch PCIe x16 slot for easy GPU installation
- ✅ 5x ARGB + RGB headers for custom lighting
- ✅ Hi-Fi audio with Realtek ALC897 7.1-channel and noise guard
- ✅ Over 2600 reviews averaging 4.5 stars for reliability[1][5]
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 8000 MHz (OC) |
| Number of M.2 (M) slots | 3 |
| 1st M.2 highest PCI Express generation | 5.0 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| VRM Phases | 8+2+2 Digital |
| Memory Profile Support | AMD EXPO, Intel XMP |
| BIOS Flashback | Q-Flash Plus |
| Fan Headers | Multiple Hybrid with Smart Fan 6 |
| RGB LED pin headers | 5 |
| Audio chip | Realtek ALC897 |
| Package weight | 2.16 kg |
| Warranty period | 3 year(s) |
