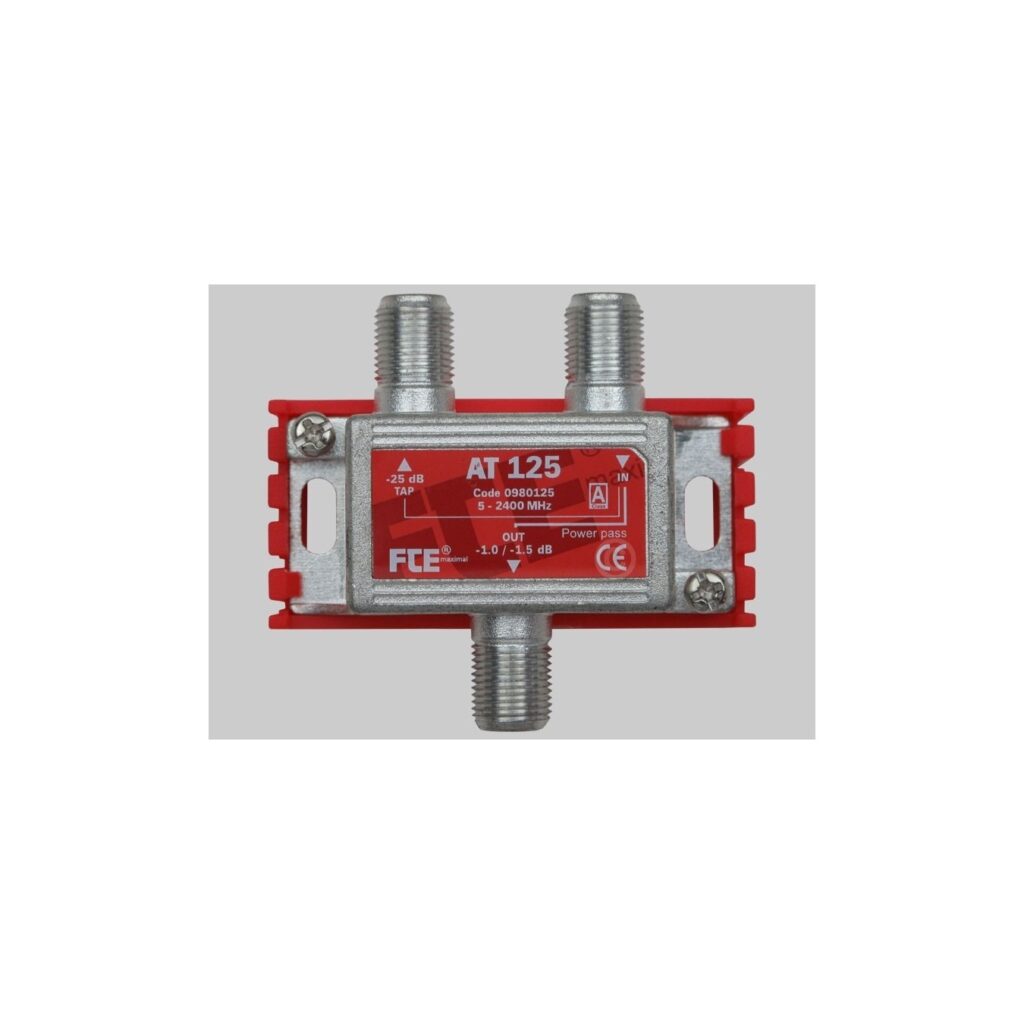

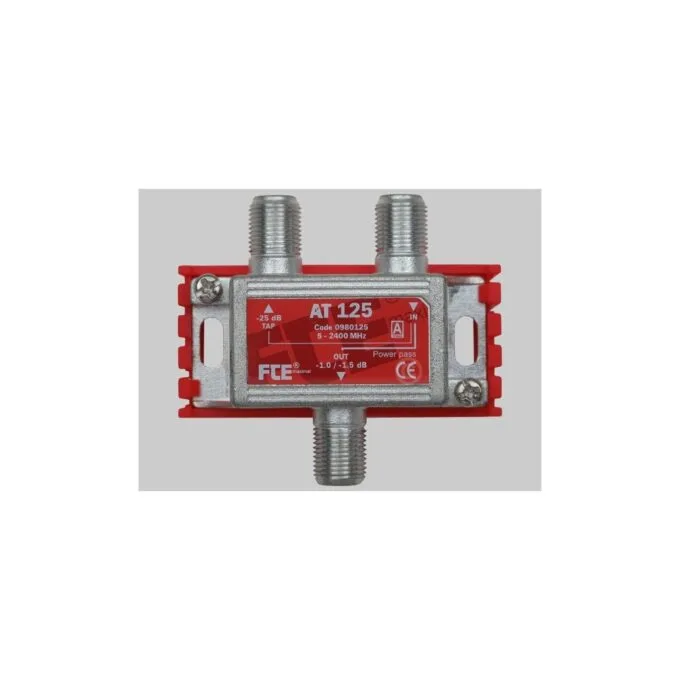

FTE Tap - AT125 - 1-Way Tap 5-2400MHz
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
RF distribution tap covering 5-2400 MHz with return path support (5-30 or 5-65 MHz) in IN-OUT and OUT-IN directions.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
This range of taps covers bands of terrestrial TV and satellite TV between 5 and 2400 MHz, including any frequency range of return line (5-30 or 5-65 MHz) as well in several directions (IN-OUT, OUT-IN, IN-TAP and TAP-IN). They have one tap output, F type connectors. Decoupling between outputs is very high avoiding that problems generated in one of the outputs affect the rest of users. Availability of 6 values of tap attenuation let make a cascade perfectly compensated. All references have plastic wall support insertable and a ground connection.
- Covered Band (MHz) 5-2400
- Return band (MHz) 5-30 / 5-65
- Nr. of TAPS 1
- Distribution attenuation (dB) Freq.(MHz) Typ Max 5-470 25,0 26,0 470-862 25,5 27,0 950-2400 25,5 27,5
- Distribution pass (dB) 5-470 0,8 1,0 470-862 0,8 1,0 950-2400 1,2 1,5
- Decoupl. between outputs (dB) 5-470 470-862 950-2150
- Return loss (dB) IN > 20 OUT > 20 TAP > 18
- Screening factor (dB) > 100
- Impedance (Ω) 75
- Current pass IN – OUT
- Connectors F female
- Plastic support included
- Dimensions (mm) 10 pcs: 165 x 125 x 70 120 pcs: 330 x 250 x 210
| Type | Tap |
| Tap Outputs | 1 |
| Frequency | 5-2400Mhz |
| Series | AT |
