FSP Hydro PTM PRO HPT2-1350M 1350W ATX 3.1 80+ Platinum
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
FSP Hydro PTM PRO HPT2-1350M 1350W ATX 3.1 PSU. 80+ Platinum, full modular, 2x 12V-2×6 PCIe5, 4x 6+2pin, 135mm FDB fan, Japanese caps. Single +12V rail 112.5A. Efficiency ≥92%. OCP/OVP/OPP/SCP/OTP/UVP.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

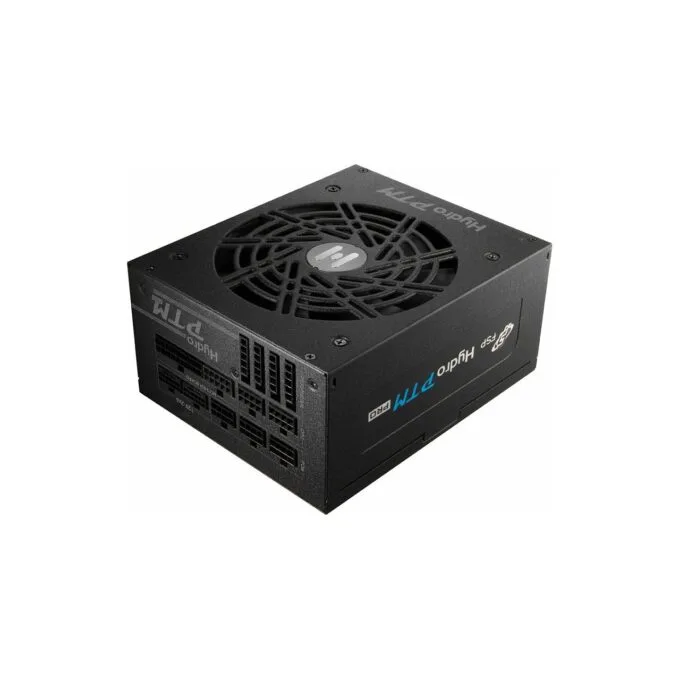

The FSP Hydro PTM PRO HPT2-1350M is a premium 1350W power supply unit compliant with ATX 3.1 and EPS12V 2.92 standards, featuring the latest 12V-2×6 (PCIe Gen5) connectors for next-gen GPUs like NVIDIA RTX 40 series. This fully modular PSU delivers exceptional efficiency with 80 PLUS Platinum certification (≥92% at typical load) and a single +12V rail providing 112.5A / 1350W for high-power systems.
Key highlights include a quiet 135mm FDB fan with semi-fanless ECO mode, Japanese electrolytic capacitors for longevity, ribbon cables for clean builds, and changeable side stickers for customization. It offers comprehensive protection: OCP, OVP, OPP, SCP, OTP, UVP. Compact dimensions (150 x 86 x 180 mm) fit most cases. Backed by a 10-year warranty.
- Connectors: 1x 20+4pin ATX, 2x 4+4pin EPS, 2x 12V-2×6 (Gen5), 4x 6+2pin PCIe, 12x SATA, 4x Molex
- Active PFC, 110-240V input, DC-DC design for +5V/+3.3V
- Semi-passive cooling, full-bridge topology
| Model | HPT2-1350M |
| Rated Output Power | 1350W |
| Form Factor | ATX |
| 80 PLUS Certification | Platinum |
| ATX Version | 3.1 |
| EPS Version | 2.92 |
| Input Voltage | 110-240V |
| Input Current | 15-8A |
| Input Frequency | 50-60Hz |
| PFC | Active |
| Efficiency | ≥92% at typical load |
| Fan Type | 135mm FDB, semi-fanless |
| Dimensions (W x H x D) | 150 x 86 x 180 mm |
| Main Connector | 20+4 pin ATX |
| EPS/CPU Connectors | 2x 4+4 pin |
| PCIe 12V-2x6 Connectors | 2x |
| PCIe 6+2 pin Connectors | 4x |
| SATA Connectors | 12x |
| Molex Connectors | 4x |
| Max Output Current (+3.3V) | 20A |
| Max Output Current (+5V) | 20A |
| Max Output Current (+12V) | 112.5A |
| Max Output Current (-12V) | 0.3A |
| Max Output Current (+5Vsb) | 3A |
| Combined Power (+3.3V +5V) | 120W |
| Combined Power (+12V) | 1350W |
| Combined Power (-12V) | 3.6W |
| Combined Power (+5Vsb) | 15W |
| Protection | OCP/OVP/OPP/SCP/OTP/UVP |
| Modularity | Fully modular |
| Fan Bearing | FDB |
| Warranty | 10 years |
