DigitMX Enclosed Power Supply - DMX-BPSU1215B - 12V 15A
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

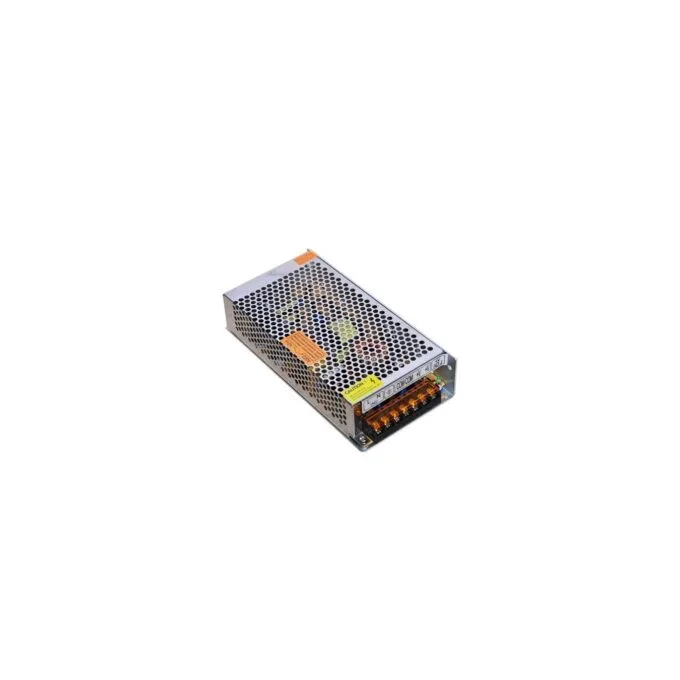

Enclosed power supply with 110/220VAC input (50-60Hz) and 12V output at 15A (180W).
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Input:110/220VAC 50-60Hz
- Output:12V15A 180W
- AC input selectable by switch
- AC input voltage range: 110/220V AC, 50-60Hz
- AC inrush current: 30-75A
- Output voltage: 12V
- Output current: 15A
- Leakage current: <0.7Ma/230V AC
- DC adjustment range: ±10%
- Over load protection: 105-135% rated output power
- Over-voltage protection: 105-135% hiccup mode, auto-recovery
- Withstand voltage:
- I/P-O/P: 3kV AC
- I/P-FG: 1.5kV AC
- O/P-F/G: 0.5kV AC
- Working temperature: -20 to +70°C
- Certifications: CE, RoHS Directive-compliant, FCC
- Output type: DC
| Type | Bare |
| Voltage | 12V |
| Ampers | 15A |
| Current | 15A |
