DeltaMate Rotary - 90°, connection
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

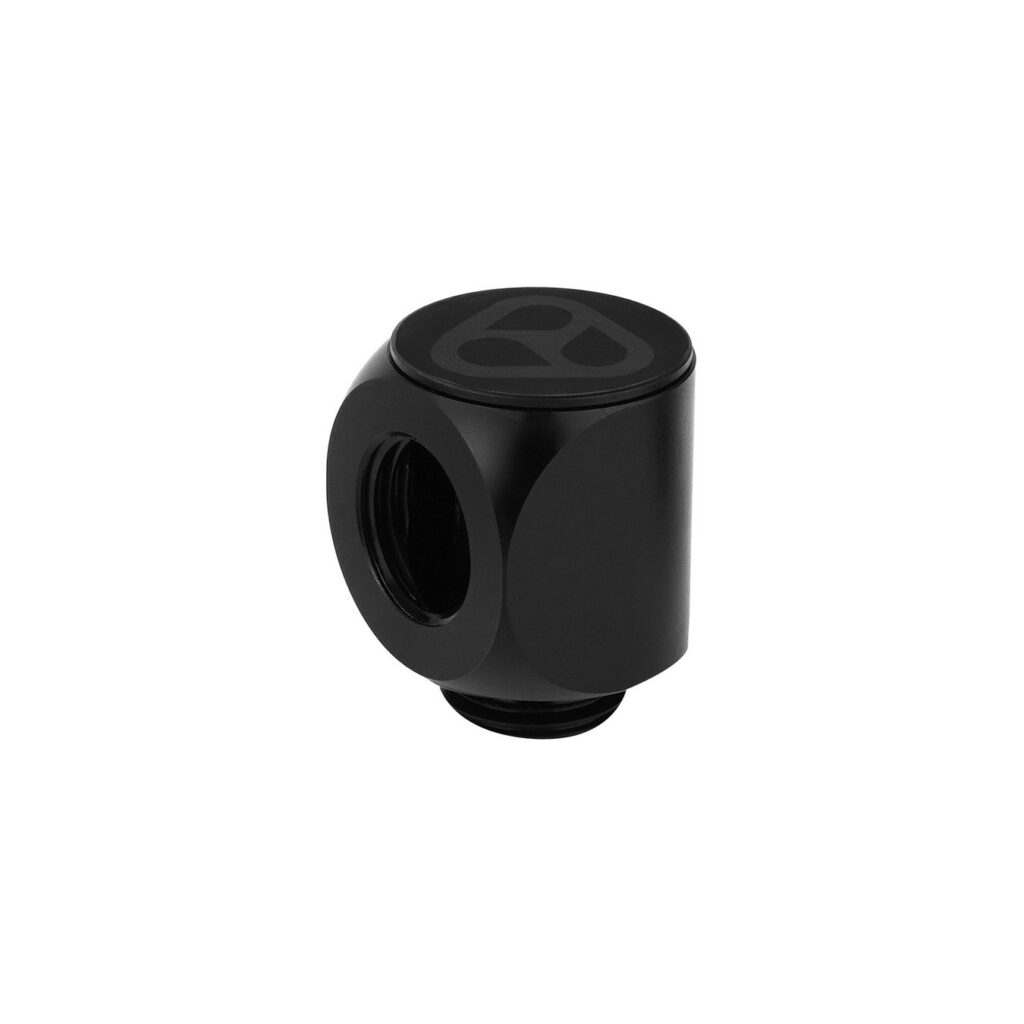

Compact DeltaMate Rotary – 90° connection in Black for modular use with other DeltaMate rotary and extender fittings.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Thanks to its compact dimensions, the DeltaMate Rotary – 90° in black enables a modular combination with other DeltaMate rotary and extender fittings. The DeltaMate Rotary – 90° has a G1/4″ external (male) and internal (female) thread and offers a high-quality finish in the form of a matt black chrome coating, which is also easy to clean. When additional fittings are used, the rotary joint is mechanically locked to ensure maximum safety. An optional, rotating cover cap with the DeltaMate logo for visual enhancement is included in the scope of delivery.
| Color | schwarz |
| EAN | 4260711991769 |
| Manufacturer no. | TG-DM-FIT-0003 |
| Art | Connection |
| Fitting | 90° Shop |
| Feature | Includes optional cover cap with DeltaMate logo that can be rotated in any orientation. |
| Notice | Maximum thread depth 4.5 mm! An 8mm straight end hex wrench is required for assembly. |
| Dimensions - Total | Width: 20.6 mm x Height: 26.1 mm x Depth: 20.6 mm |
| Weight - Total | 39 Gramm |
