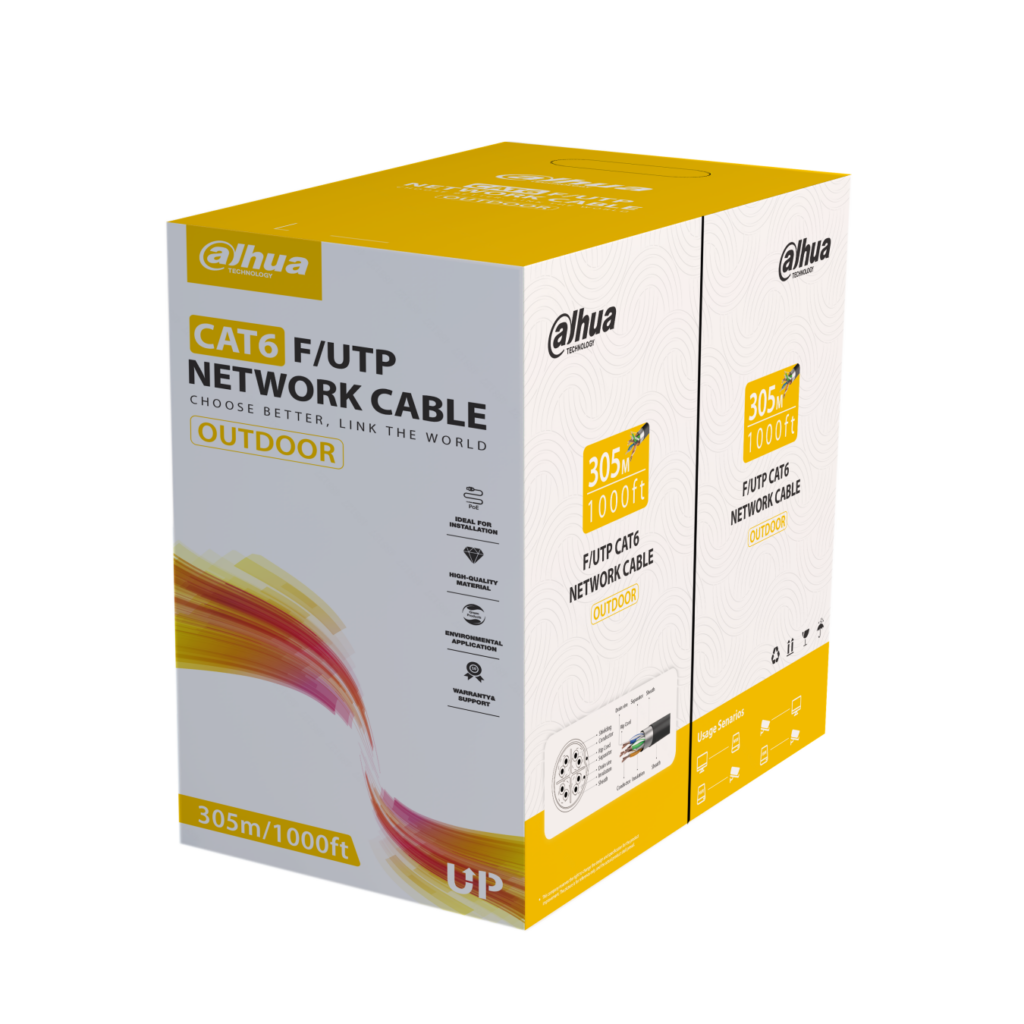

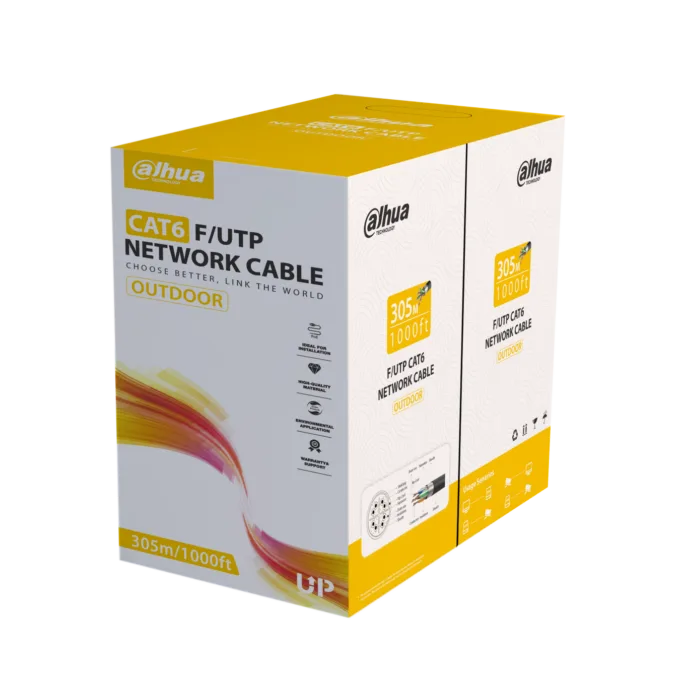

Dahua CAT6 OFC FTP Cable 305m 0.57mm Black Outdoor - PFM920-6F - Cat6, OFC, FTP, 305m, 0.57mm, Black, Outdoor

• 305m/carton outdoor F/UTP CAT6, power over Ethernet, compatible with one cable
• High-purity oxygen-free copper conductor material
• Customized MDPE outer sheath,certain degree of waterproof
• Environmentally friendly and all materials used are RoHS compliant.
• 10-year warranty

Conductor

• Material : Oxygen free copper (99.97% purity)
• Diameter : 0.57 mm ± 0.02 mm (0.0224″ ± 0.0008″)
• Wire Gauge : 23 AWG

Insulation

• Material : HDPE
• Min. Average Thickness : 0.21 mm (0.0083″)
• Diameter : 1.02 mm ± 0.06 mm (0.04″ ± 0.0024″)
• Color : 8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown

Rip Cord

• Material : Polyester
• Specification : 500D

Drain Wire

• Material : Tinned copper
• Specification : 7/0.16 mm (0.006″)

Separator

• Material : PE
• Specification : Translucent 4.5 mm × 0.4 mm (0.18″ × 0.0157″)

Wrapping Tape

• Material : Polyester tape (transparent)
• Thickness : W: 20 mm ± 2 mm × T: 0.026 mm ± 0.02 mm (W: 0.79″ ± 0.08″ × T: 0.0010″ ± 0.0008″)

Outer Shield

• Material : Aluminum foil
• Specification : 0.063 mm × 25 mm (0.002″ × 0.98″)

Sheath

• Material : MDPE
• Min. Average Thickness : 0.7 mm (0.0276″)
• Diameter : 6.2 mm ± 0.4 mm (0.24″ ± 0.0157″)
• Color : Black

Electrical

• Max. DC Resistance of a Single Conductor : 7.35 Ω / 100 m
• Min. Insulation Resistance : 5000 MΩ·km
• Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
• Dielectric Strength : No breakdown with 1kV DC for 1 min

Transmission

• Characteristic Impedance : 100 Ω ± 15 Ω
• Near-end Crosstalk : ≥39.3 dB / 100 m @ 250 MHz
• Max. Attenuation : 32.8 dB / 100 m @ 250 MHz
• Return Loss : ≥17.3 dB / 100 m @ 250 MHz

Mechanical

• Tensile Strength : Sheath ≥13.5 MPa, Insulation ≥16 MPa
• Elongation at Break : Sheath ≥150%, Insulation ≥300%
• Installation Bending Radius : >15 times of outer cable diameter
• Conductor Elongation at Break : ≥15%

Environmental

• Shrinkage of Insulation : ≤5%
• Color Migration Resistance of Insulation : No migration
• Sheath Tensile Strength and Elongation at Break after Aging : ≥9.6 MPa, rate of change ≤20%
• Low Temperature Bending Test : No cracking after the test
• Heat Shock Test : No cracking after the test
• Operating Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Installation Temperature : 0 °C to +50 °C (32 °F to 122 °F)
• Storage Temperature and Humidity : –10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Packaging

• Cable Length : 305.0 m ± 2 m (1000.66 ft ± 6.56 ft)
• Packaging Method : 305 m (1000 ft) a carton, one carton with 2 inner cartons
• Packaging Dimensions : 436 mm × 436 mm × 222 mm (17.17″ × 17.17″ × 8.74″) (L × W × H)
• Transport Package Dimensions : 470 mm × 470 mm × 470 mm (18.50″ × 18.50″ × 18.50″) (L × W × H)
• Net Weight : 11.7 kg ± 0.6 kg (25.79 lb ± 1.32 lb)
• Gross Weight : 12.7 kg ± 0.6 kg (28.00 lb ± 1.32 lb)

Compliance

• Executive Standards : YD/T 3296.2-2018, ANSI/TIA 568.2-D
