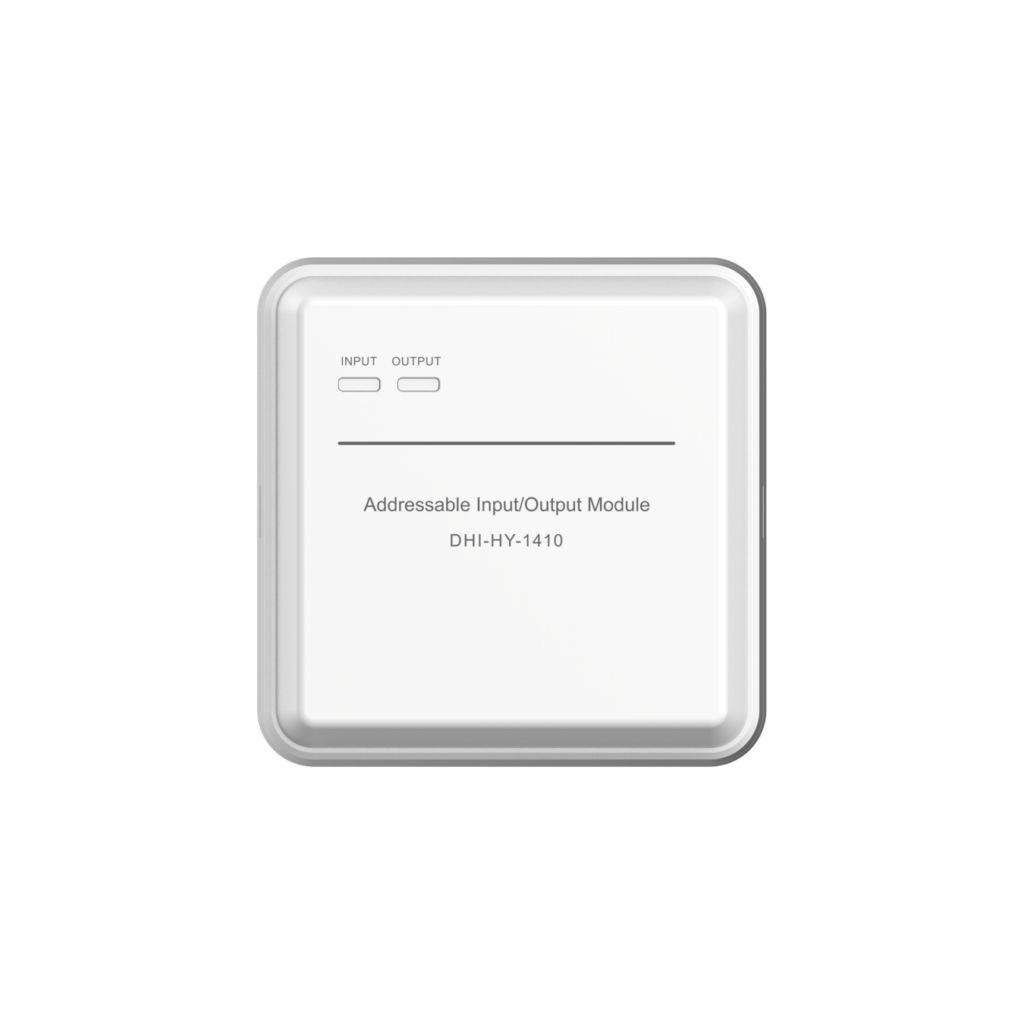

Dahua Addressable Fire Alarm Module Input Output - HY-1410-CTXF - Without Base
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Two-wire, polarity-free addressable fire alarm I/O module with built-in microprocessor for stable communication, ultra-low monitoring and alarm currents, and plug-in installation.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Convenient wiring: two-wire, polarity-free
- Reliable communication: built-in microprocessor, stable performance
- Ultra-low power consumption: ultra-low monitoring current and alarm current
- Simple installation: with a plug-in structure, easy to install and construct
Electrical
- Working Voltage : 24V DC
- Current : Monitoring current: ≤ 150μA / Operating current: ≤ 9mA
- Indicator : Input indicator: Red LED flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned / Output indicator: Red LED is constantly off when works normally, and flashes once every 2 seconds when malfunctioned
Communication
- Wiring : Two-wire, polarity-free
- Addressing Method : Electrical encoder
- Address Range : 1–254
-
Communication Distance : ≤ 1500 m
Environment
- Operating Temperature : –10°C to +55°C (+14°F to +131°F)
- Storage Temperature : –20°C to +65°C (–4°F to +149°F)
- Operating Humidity : ≤ 95% RH (no condensation)
Construction
- Color : White
- Dimensions (with base) : 90 mm × 90 mm × 37 mm (3.54″ × 3.54″ × 1.46″)
- Weight (with base) : 120 g (0.23 lb)
- Compliance Standard : EN54-18
