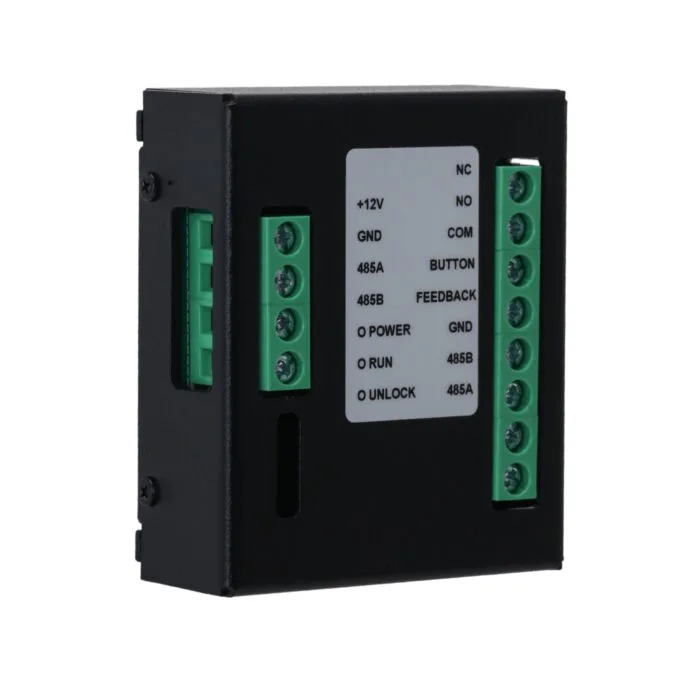

Dahua AC Extension Module - DEE1010B-S2
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Expansion module for access control that works with access control terminal and door station; RS-485; connects to electronic or magnetic locks; features 3 indicators.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Used to expand access control functions by working with access control terminal and door station
- Supports RS-485 communication
- Connects to electronic or magnetic locks to bolster security
- Offers 3 indicators to indicate when the device is on or off, functioning, and the status of the door
Port
- RS-485 : 2
- Exit Button : 1
- Door Status Detection : 1
- Lock Control : 1
General
- Power Supply : 12 VDC, 1 A (not included)
- Power Consumption : ≤ 0.9 W (standby), ≤ 1 W (working)
- Product Dimensions : 58.2 mm × 49.2 mm × 20.2 mm (W × H × D)
- Operating Temperature : –10 °C to +60 °C
- Operating Humidity : 0%–95% (RH), non-condensing
- Net Weight : 0.09 kg
- Gross Weight : 0.12 kg
- Certifications : CE; FCC
