CANYON H-100, GAN 100W charger Input:100V-240V Output: USB-C1/C2: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A USB-A 1/A2, 4.5V/5A, 5V/4.5A, 9V/3A, 12V/2.5A, 20V/1.5A C1+C2, 65W + 30W, C1+A1, 65W + 30W, C1+A2, 65W + 30W, C1+A1+A2, 65W
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
CANYON H-100, GAN 100W charger Input:100V-240V Output: USB-C1/C2: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A USB-A 1/A2, 4.5V/5A, 5V/4.5A, 9V/3A, 12V/2.5A, 20V/1.5A C1+C2, 65W + 30W, C1+A1, 65W + 30W, C1+A2, 65W + 30W, C1+A1+A2, 65W

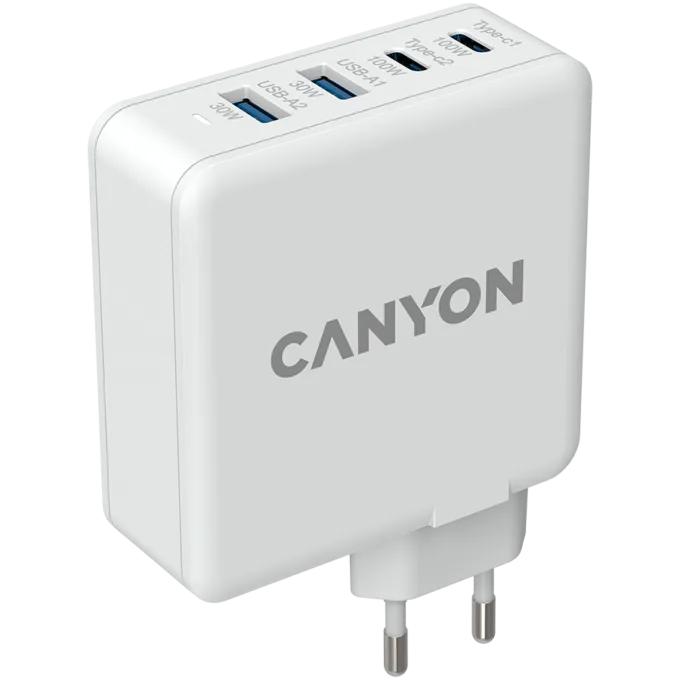

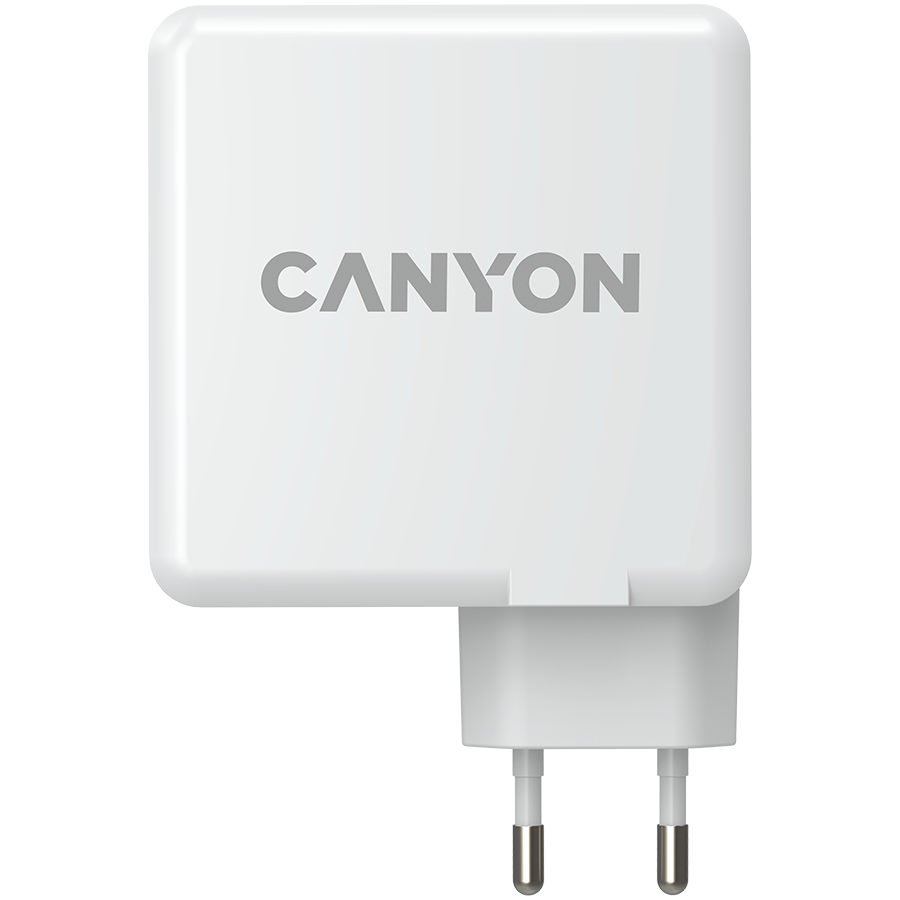

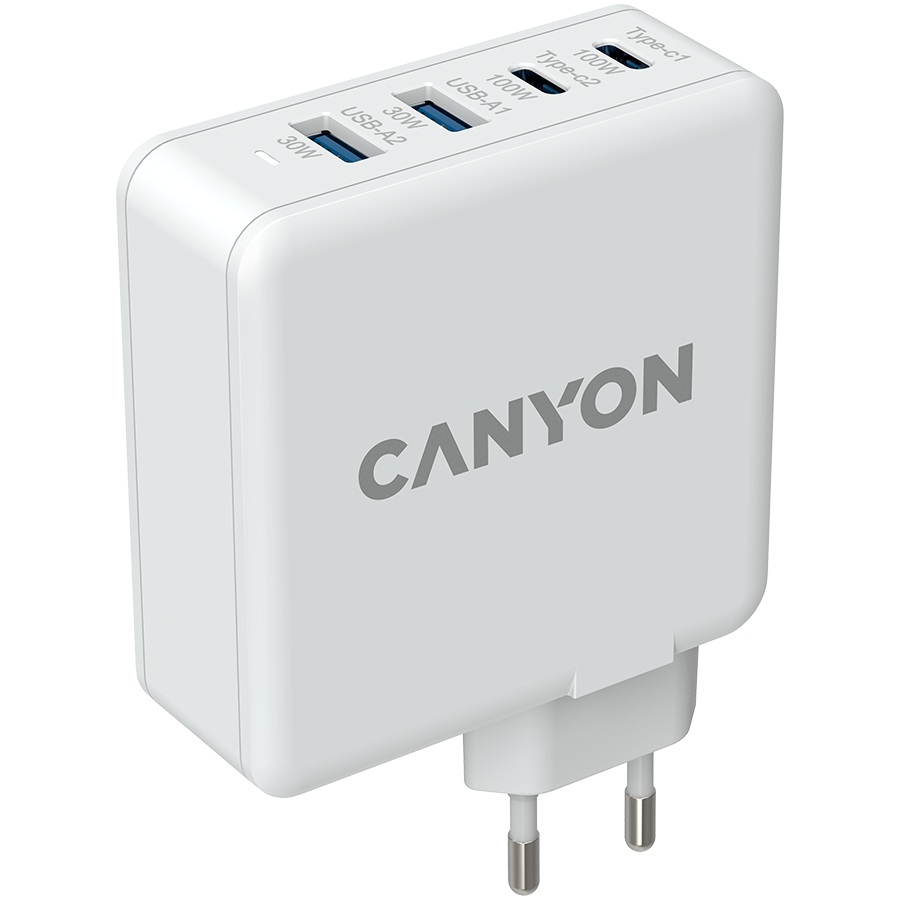

Fast Charge GaN Wall Charger H-100
Canyon’s H-100 charger belongs to the new, GaN charging device type, constructed with the usage of semiconductors based on gallium nitride. This material allows to increase the power of the charger using the same gauge. It allowed the H-100 model to have such a compact size and be able to charge 4 devices simultaneously. Each of the 2 USB-C ports can supply power up to 100 watts, and each of 2 USB -A ports – up to 30 watts. Each port is labeled. The smart chip supports PD and QC charging protocols and distributes charging power in a way that prevents overheating of connected gadgets. A perfect tool for charging devices from a power socket.
Features:
- GaN semiconductors used
- PD and QC3.0 protocols supported
- Charges 4 devices simultaneously
- 2x USB-C ports 100W
- 2x USB-A ports 30W
- Automatic detection of the optimal current parameters for a charged device
Specifications
| Marketing Model Name | H-100 |
|---|---|
| Commercial Name | CANYON charger H-100 GaN PD 100W QC 3.0 30W White |
| Power Device Type | Power Adapter |
| Power Device Location | External |
| Input Voltage | AC 100-240 V |
| Output Voltage | DC 4.5-20 V |
| Maximum Output Power | 100 W |
| Output Power Connectors Quantity | 4 |
| Output Power Connectors Type | USB/USB-C |
| USB Type A1, USB Type A2 | DC 4.5/5/9/12/20V |
| USB Type C1, USB Type C2 | DC 5/9/12/15/20V |
| External Color | White |
| Included Documentation | Quick Start Guide Warranty Card |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 24 month(s) |
| Warranty Validation Criteria | Serial Number |
| Color box dimensions (mm) | 33×171.5×98 mm |
| Single pack gross weight (kg) | 0.239 kg |
| Carton weight (kg) | 11.47 kg |
| Quantity of the boxes per pallet (by air)(pcs) | 36 |
| Quantity of the packs per pallet (by air)(pcs) | 1728 |
| Quantity of the boxes per pallet (by sea)(pcs) | 54 |
| Quantity of the packs per pallet (by sea)(pcs) | 2592 |
| Dimensions of pallet (by sea) | 920x2130x1200 mm |
