ASUS Pro WS W790E-SAGE SE (D) LGA4677 Intel W790 PCIe 5.0 IPMI EEB
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Workstation motherboard: LGA4677 Intel Xeon W-3400/W-2400, W790 chipset, 8x DDR5 ECC up to 2TB OC, SSI EEB, 7x PCIe 5.0 x16, 3x M.2 PCIe 5.0/4.0, dual 10GbE+1GbE BMC IPMI, RAID.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Performance, Productivity, Proven

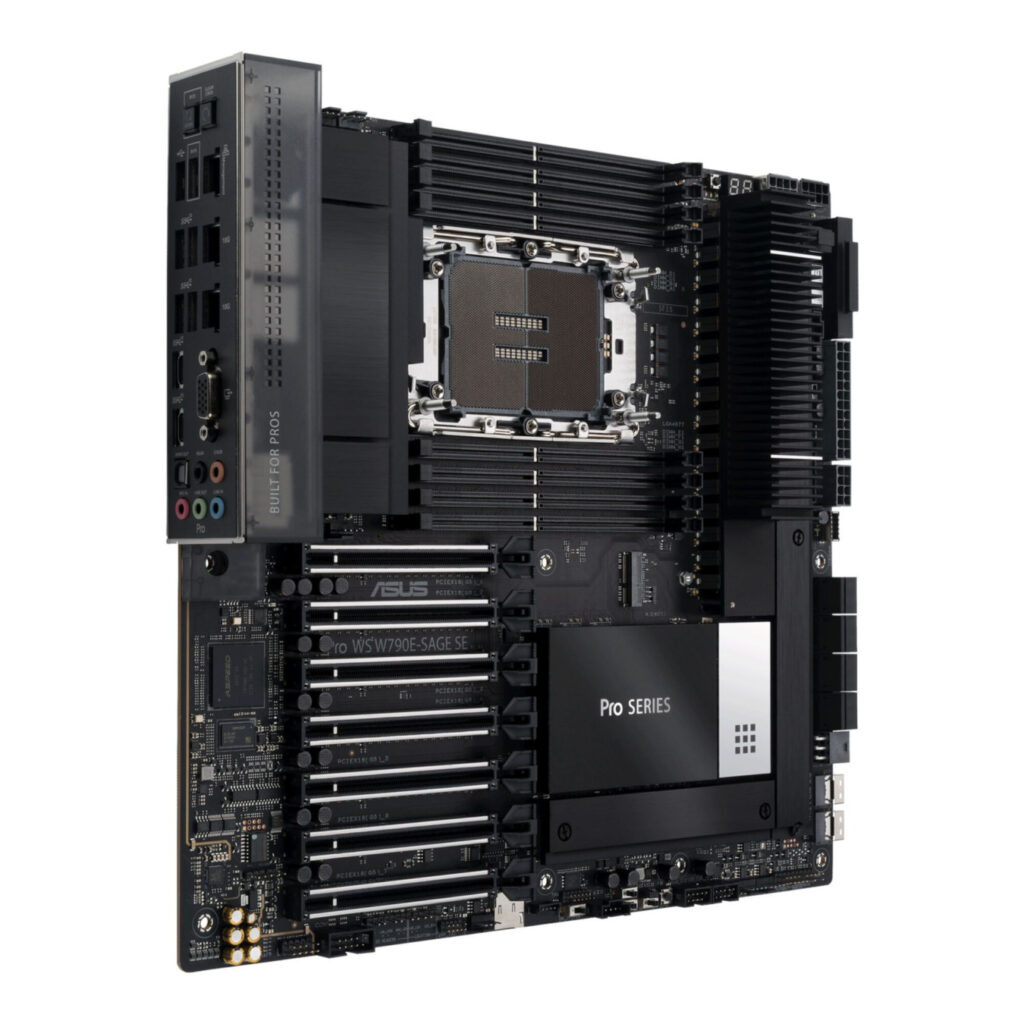

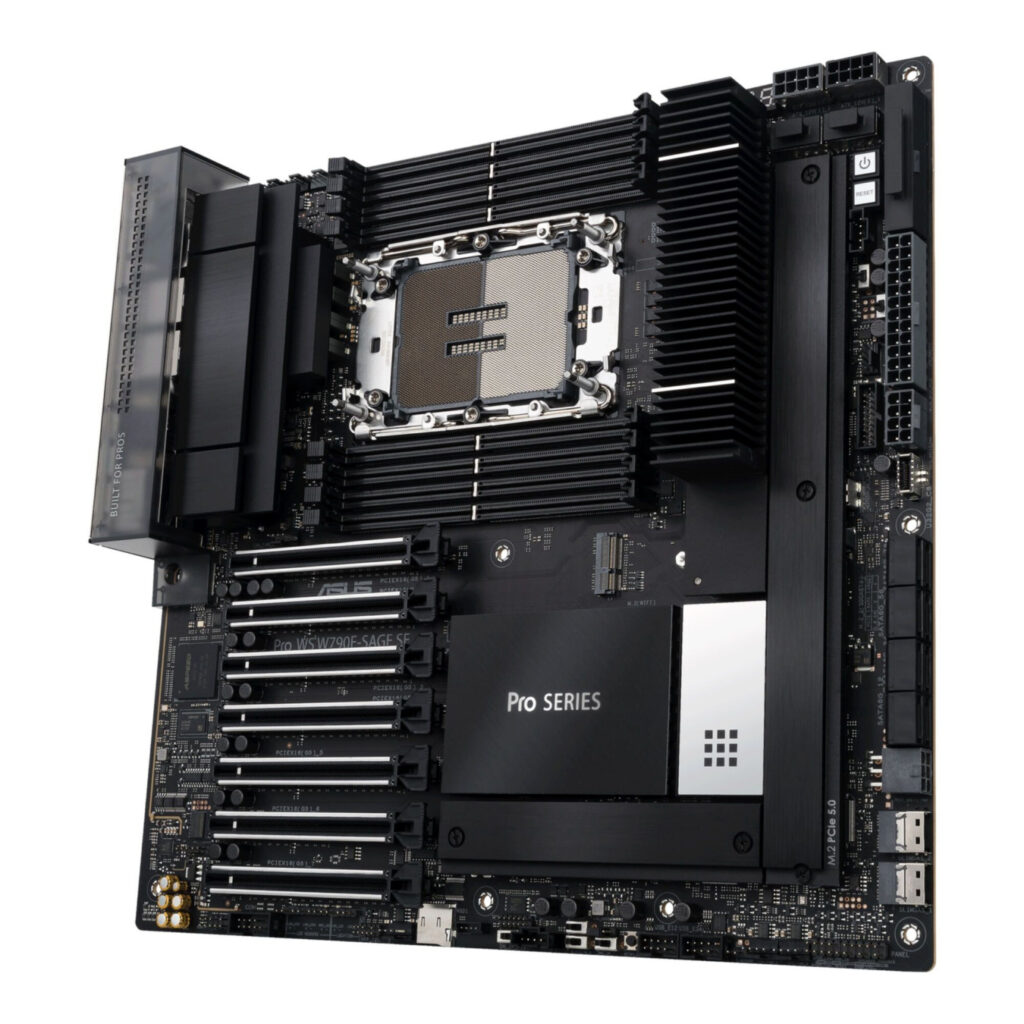

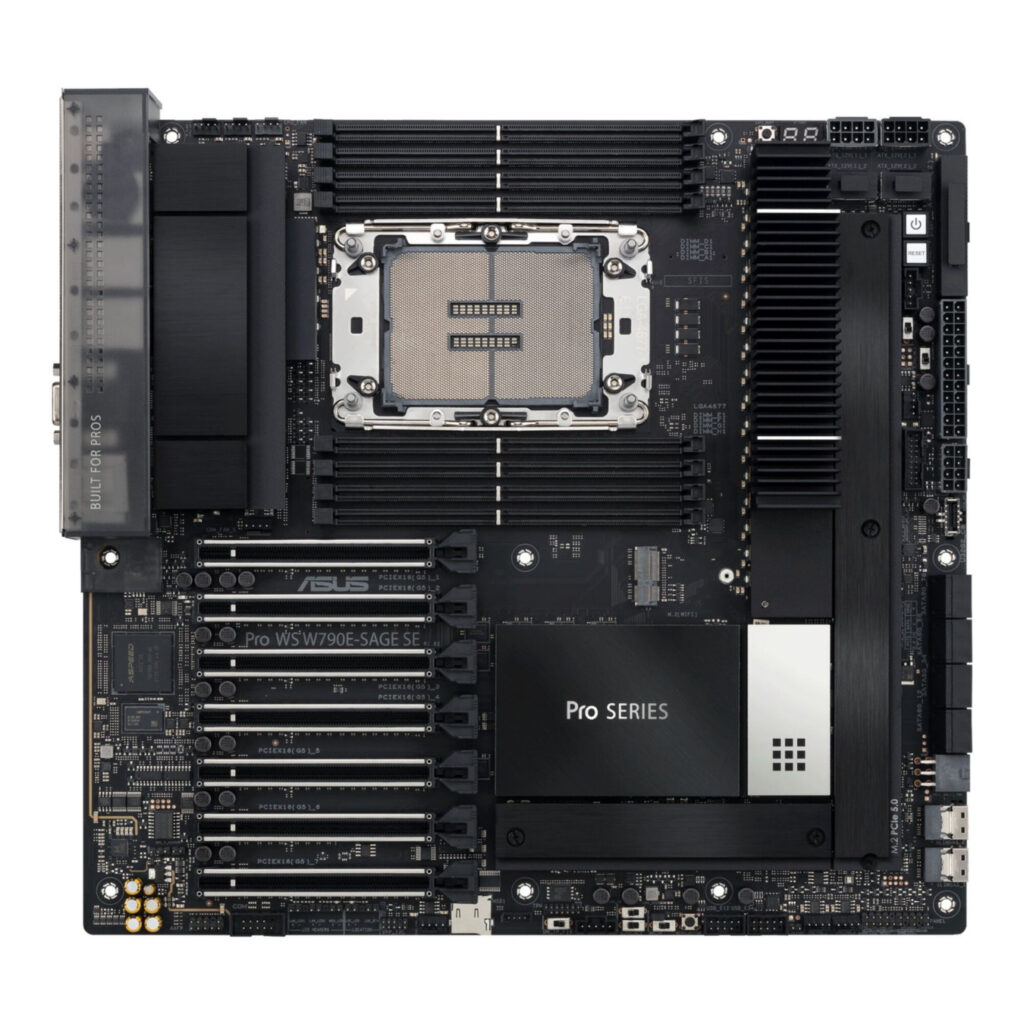

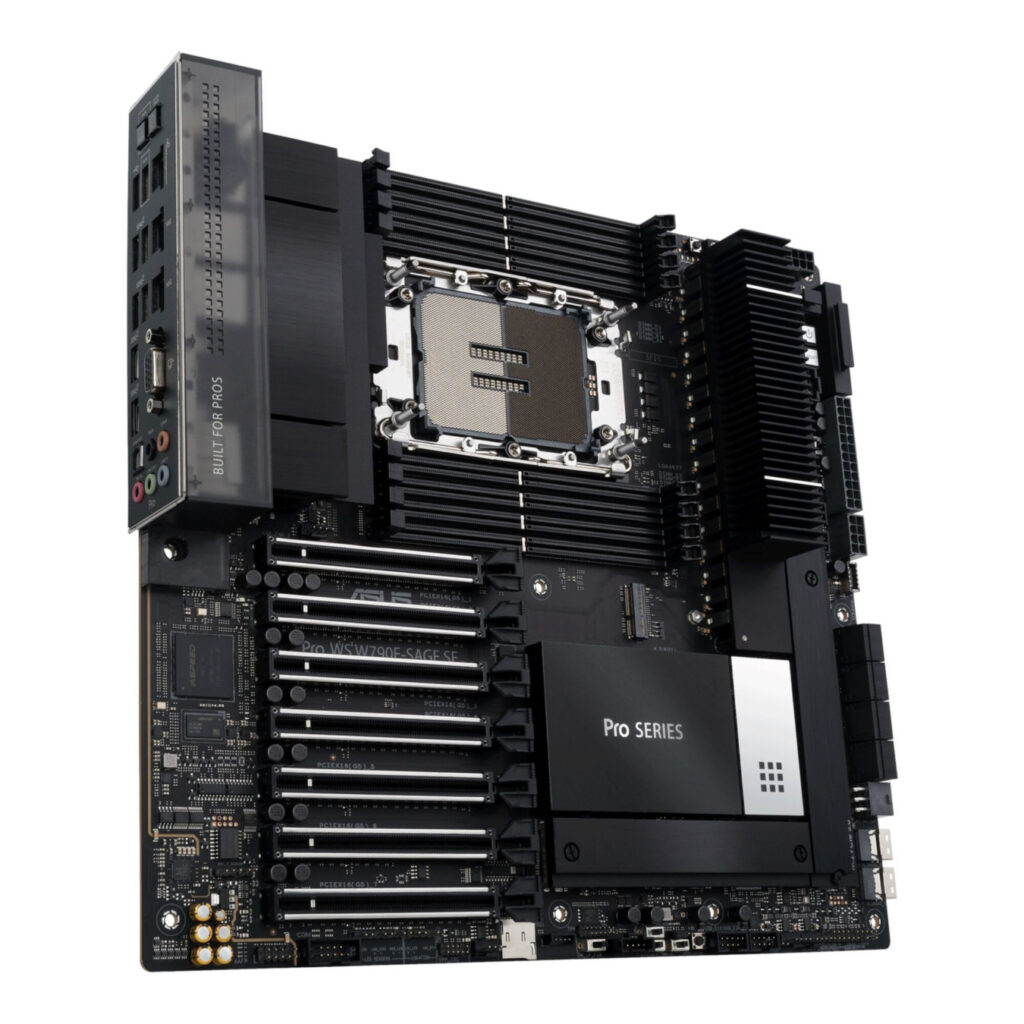

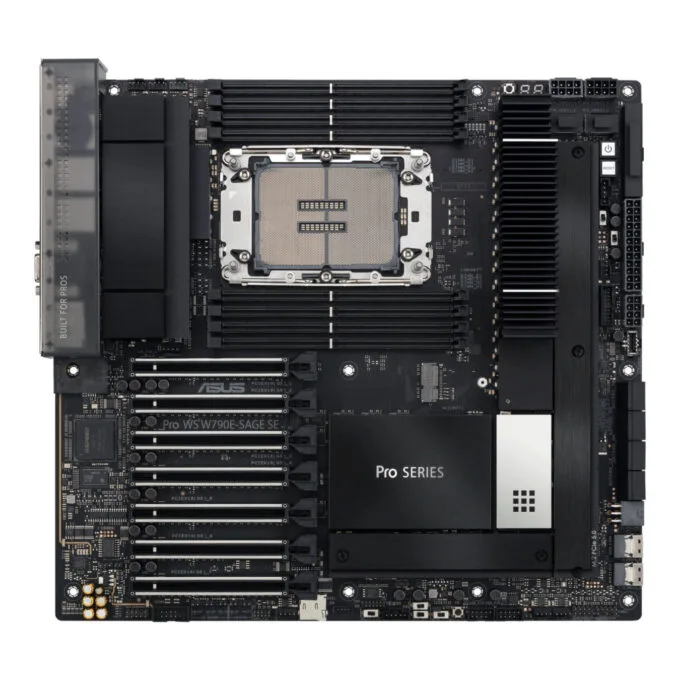

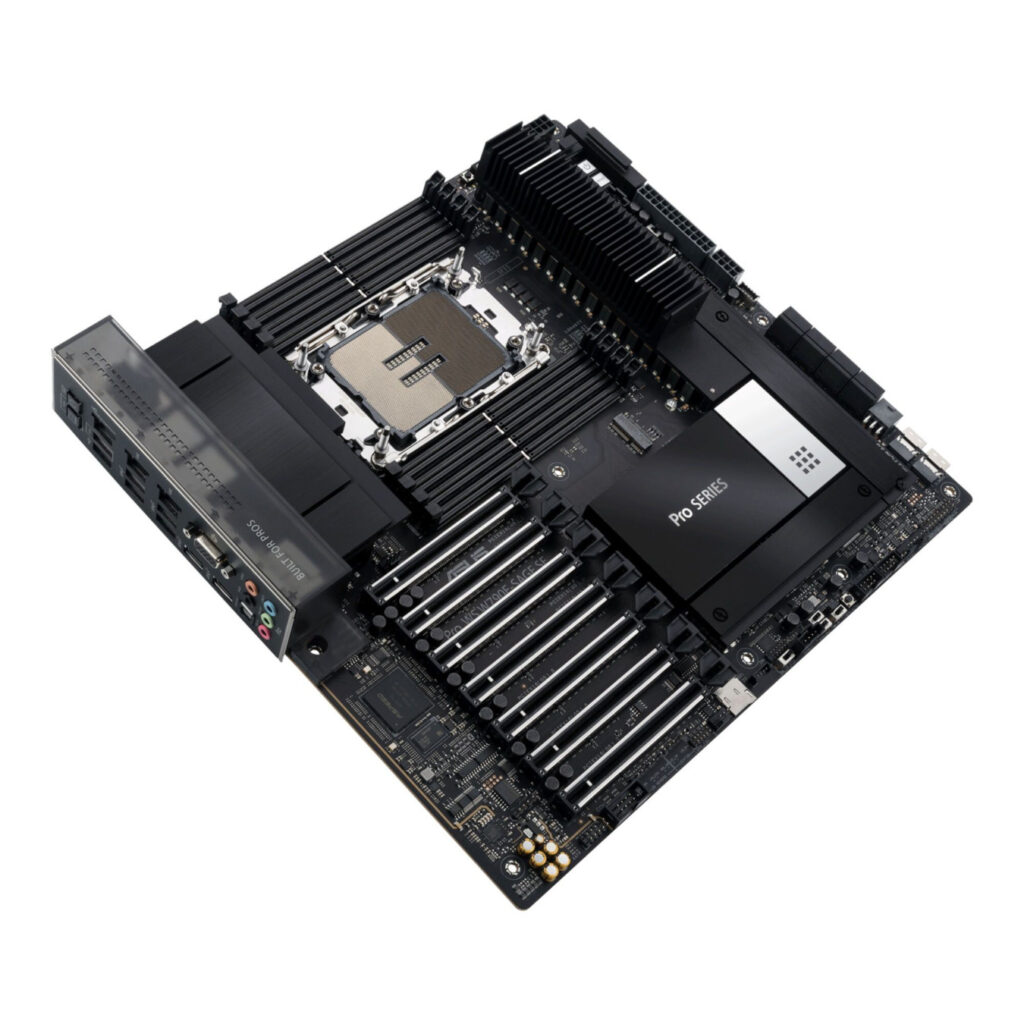

The ASUS Pro WS W790E-SAGE SE is a premium workstation motherboard for Intel Xeon W-3400 & W-2400 series processors on LGA4677 socket with W790 chipset. It supports 8-channel DDR5 RDIMM ECC memory up to 2TB with overclocking to 6800MHz(OC), optimized trace layout, and server-grade IPMI via AST2600 BMC with dedicated 1GbE port. Features 7x PCIe 5.0 x16 slots for multi-GPU, dual Intel X710-AT2 10GbE + 1GbE LAN, 3x M.2 (2x PCIe 5.0, 1x PCIe 4.0) with heatsinks, 8x SATA III, 2x SlimSAS, and robust 14+1+1 power stages with 8-pin/6-pin PCIe connectors.

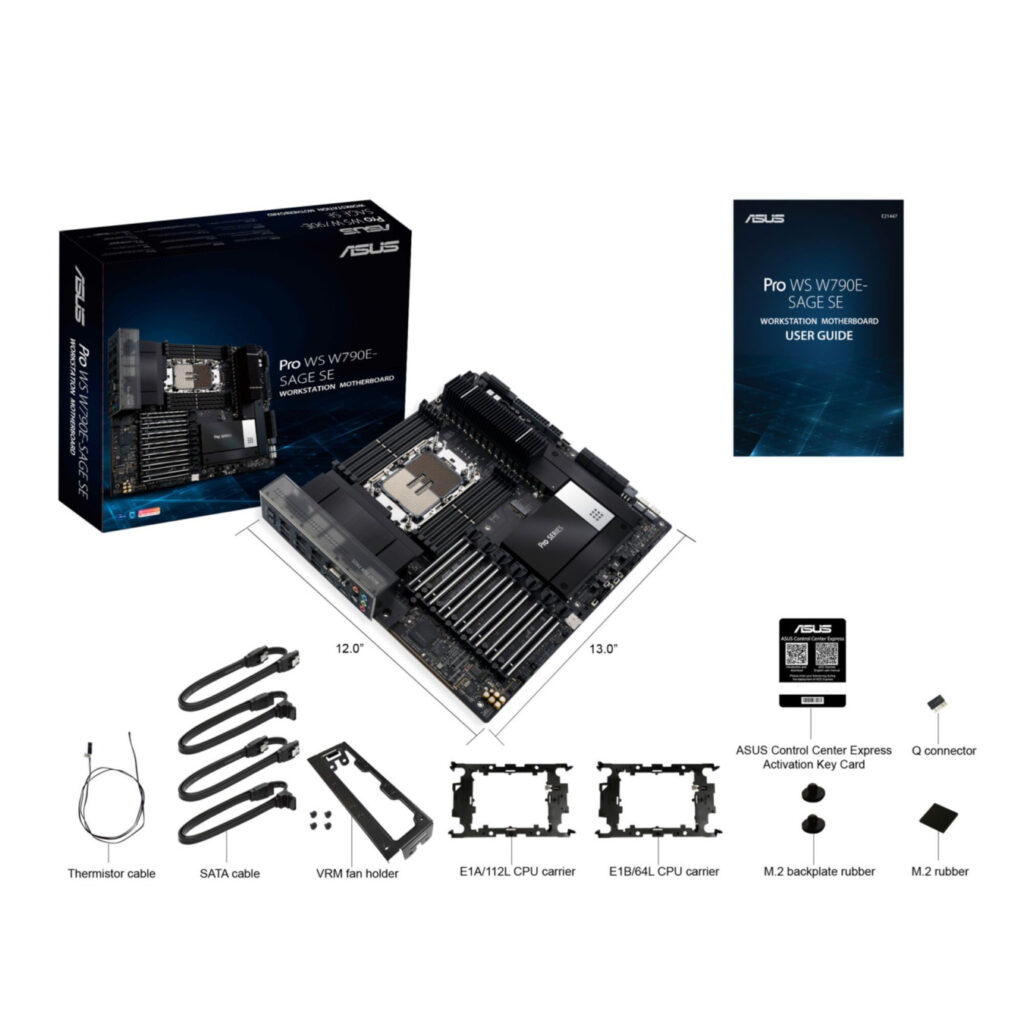

DIY-friendly with pre-mounted I/O shield, BIOS Flashback, ASUS Control Center Express for remote management. Thorough cooling via VRM/chipset/M.2 heatsinks. Premium Realtek S1220A 7.1 audio, VGA from BMC, front USB 3.2 Gen 2×2 Type-C. Tested for 24/7 reliability up to 45°C/80% humidity with extensive QVL.
- ✅ 8x DIMM DDR5 ECC OC to 6800MHz, max 2TB
- ✅ 7x PCIe 5.0 x16 Multi-GPU support
- ✅ Dual 10GbE + BMC IPMI remote management
- ✅ 3x M.2 PCIe 5.0/4.0 + 2x SlimSAS storage
- ✅ SSI EEB form factor, robust power/thermal design
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | W-2400, W-3400 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MHz (OC) |
| Supported memory clock speed (max) | 6800 MHz (OC) |
| Maximum internal memory | 2 TB |
| Number of SATA III connectors | 8 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 7 |
| Motherboard form factor | SSI EEB |
| Motherboard chipset | Intel W790 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Ethernet LAN (RJ-45) ports | 3 (2x 10GbE, 1x 1GbE BMC) |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| RAID levels | 0, 1, 5, 10 |
| Power stages | 14+1+1 |
| BMC / IPMI | Yes (AST2600) |
| Package width | 379 mm |
| Package depth | 362 mm |
| Package height | 81 mm |
| Package weight | 2.99 kg |
-
-
