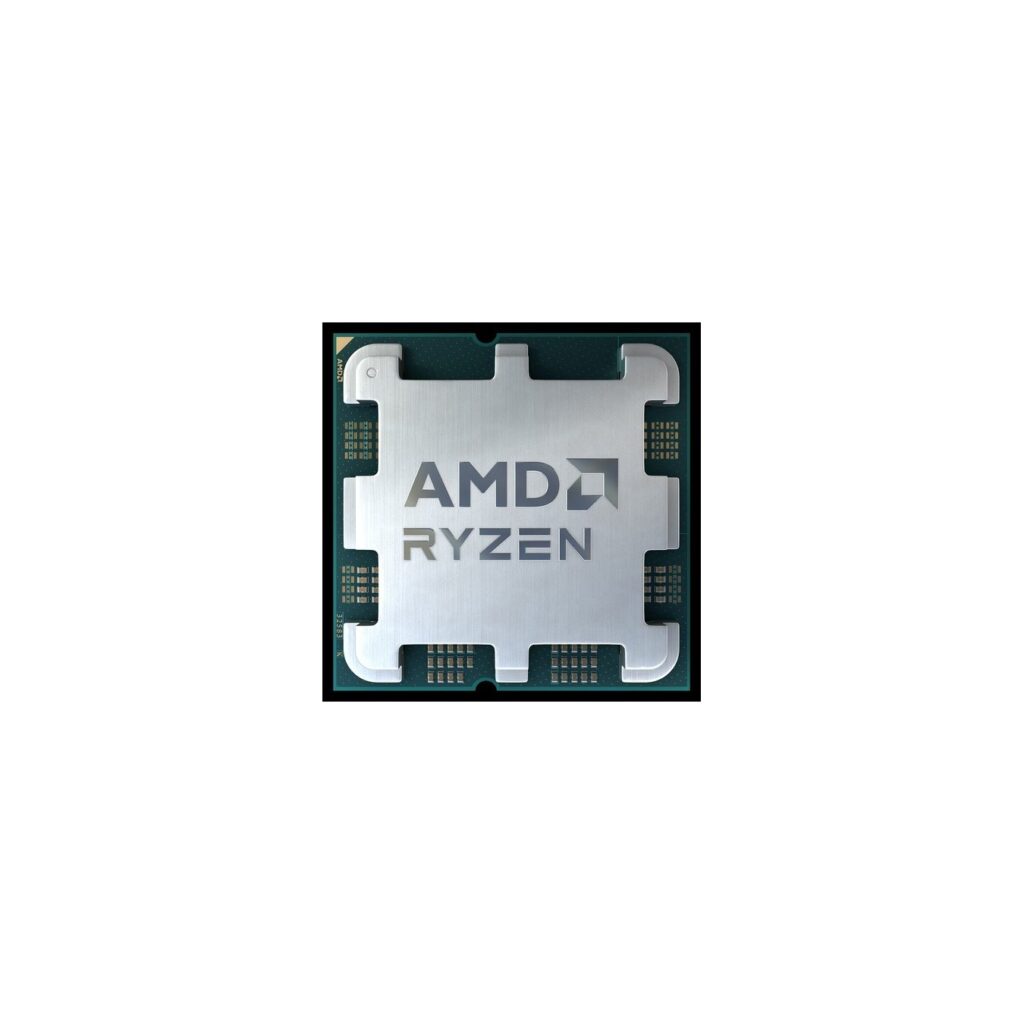

AMD Ryzen 7 7700X 8-Core 4.5GHz AM5 Processor 32MB Cache 105W - Tray (100-100000591WOF)
AMD Ryzen 7 7700X 8-core tray processor with 4.5GHz base/5.4GHz boost, 32MB cache, 105W TDP, DDR5, PCIe 5.0, unlocked overclocking, integrated Radeon graphics.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The AMD Ryzen 7 7700X is a high-performance Zen 4 desktop processor featuring 8 cores and 16 threads designed for gaming, content creation, and demanding multitasking workloads. Built on TSMC’s 5nm FinFET process with a base clock of 4.5GHz and maximum boost frequency of 5.4GHz, this processor delivers exceptional single and multi-threaded performance. The 32MB L3 cache and 105W TDP provide excellent efficiency without sacrificing computational power.
This tray-packaged unit includes support for DDR5 memory (up to 128GB), PCIe Gen 5.0 connectivity for next-generation graphics cards and storage devices, and full unlocked overclocking capabilities via AMD EXPO profiles and Curve Optimizer. The processor features integrated AMD Radeon graphics with 2 cores, eliminating the need for a discrete GPU for basic display output. Compatible with AM5 socket motherboards (A620, B650, B850, X670, X870 chipsets and newer), it supports Windows 10/11 64-bit operating systems.
Key Features:
- 8 cores / 16 threads with Zen 4 architecture
- 4.5GHz base / 5.4GHz max boost clock
- 32MB L3 cache, 8MB L2 cache
- 105W TDP (no cooler included)
- DDR5 memory support
- PCIe 5.0 connectivity
- Unlocked for overclocking with AMD EXPO
- Integrated Radeon graphics (2 cores @ 2200MHz)
- Tray package (processor only)
| Architecture | Zen 4 |
| Cores | 8 |
| Threads | 16 |
| Base Clock | 4.5GHz |
| Max Boost Clock | 5.4GHz |
| L1 Cache | 512KB (8 x 64KB) |
| L2 Cache | 8MB |
| L3 Cache | 32MB |
| TDP | 105W |
| Process Technology | TSMC 5nm FinFET (CPU cores), TSMC 6nm (I/O die) |
| Socket | AM5 |
| Compatible Chipsets | A620, B650, B650E, B840, B850, X670, X670E, X870, X870E |
| Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 128GB |
| Memory Speed | DDR5-5200 |
| PCI Express | PCIe 5.0 |
| PCIe Lanes | 28 total (24 usable) |
| Integrated Graphics | AMD Radeon Graphics (2 cores @ 2200MHz) |
| Unlocked | Yes |
| Overclocking Features | Precision Boost Overdrive, AMD EXPO, Curve Optimizer, Ryzen Master |
| Cooler Included | No (PIB/WOF - Processor Only) |
| Recommended Cooler | Premium air cooler |
| Max Operating Temperature | 95°C |
| Supported OS | Windows 11 64-bit, Windows 10 64-bit, RHEL, Ubuntu |
| Package Type | Tray (Processor Only) |
| Model Number | 100-100000591WOF |
| Launch Date | September 27, 2022 |
