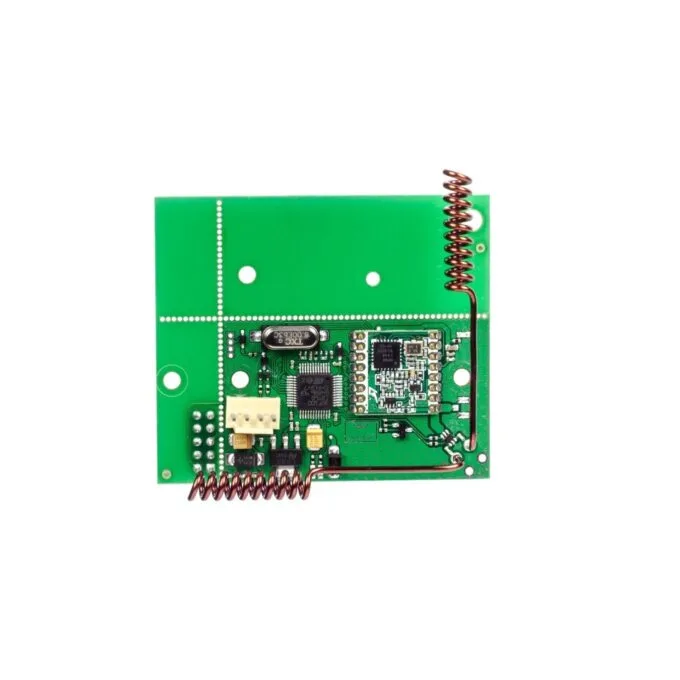

Receiver module that connects Ajax detectors to wireless security systems via UART, enabling programmable customization.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Receiver module for connecting Ajax detectors to wireless security systems and smart home solutions
Principle of operation
- When the detector activates, the device sends the information to the central unit, which raises an alarm
Features
- The device is set via UART interface, which provides a wide range of possibilities for those who like to program their own ideas
Installation and set up
- The device is installed into the body of the wired central units and hubs of smart home systems
- Classification : Receiver of wireless detectors’ signal
- Device type : Wireless
- Installation method : Indoors
- Compatibility : Wired security systems and smart home systems
- Maximum number of detectors : 85
- Supported devicesMotionProtect / MotionProtect Plus / CombiProtect / DoorProtect / FireProtect / FireProtect Plus / LeaksProtect / SpaceControl / GlassProtect
- Alarm signal delivery time : 0.15 s
- Power supply voltage : 5 V DC
- Communication range with detectors — up to 2,000 m in an open space
- Two-way communication with detectors
- Operating frequencies — 868.0 – 868.6 MHz
- Self-adjusting RF output power — up to 25 mW
- Block encryption based on AES algorithm
- Device polling period — 12 – 300 s
- Operating temperature range : From –10°С to +40°С
- Permissible humidity : Up to 90%
- Anti-sabotage : Protection against fraud / Jamming detection
- Interface : UART
- Dimensions : 64 × 55 × 13 mm
- Weight : 32 g
- Certification : CE
- Warranty : Replacement and repair within 24 months of the date of sale
