Adastra Horn Speaker - FH30V - Fire Rated EN54-24, 100V, 30W

SKU:
Μάρκα: Adastra
Barcode:
Login

Moulded ABS weatherproof horn speaker with EN54-24 fire rating; 8 Ohm or 100V operation with switchable tapping (70V settings included).

For any questions about this item, availability, or delivery times, please contact us at 22 270068

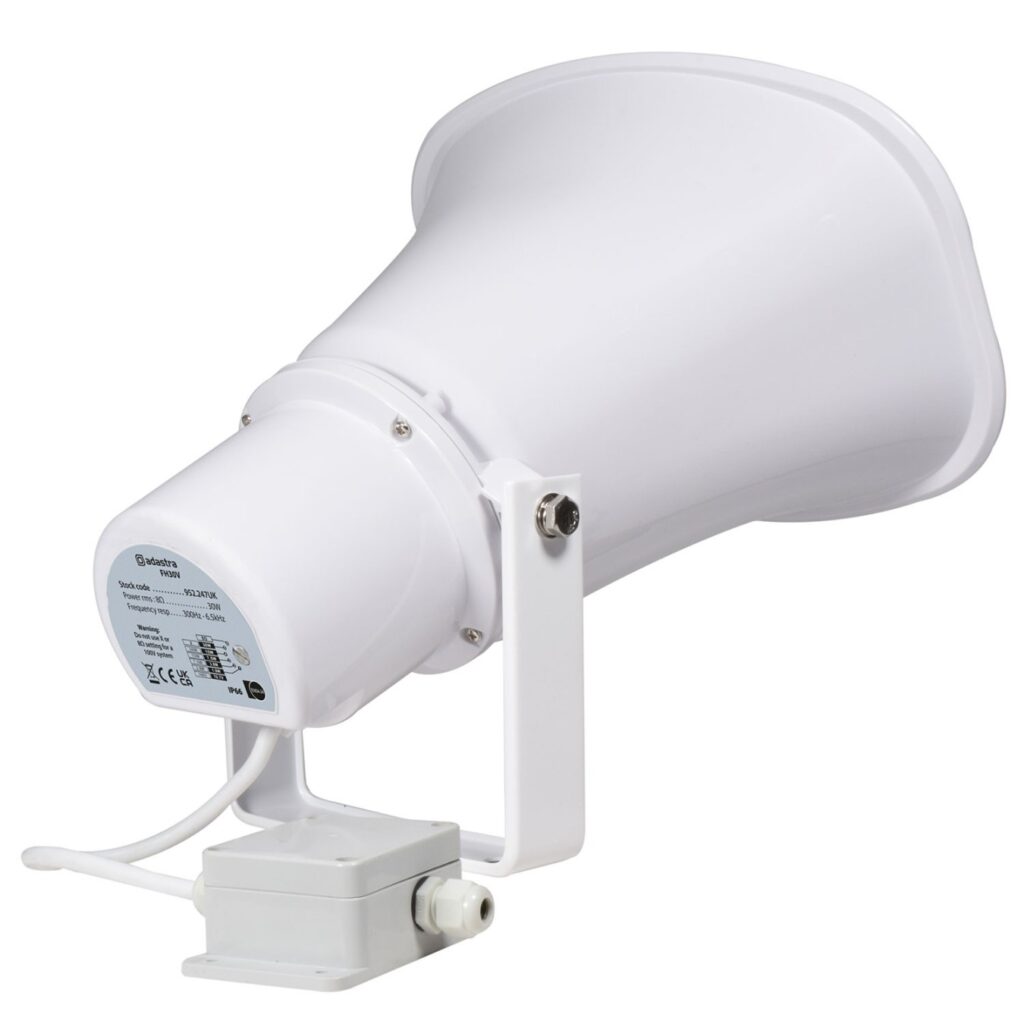

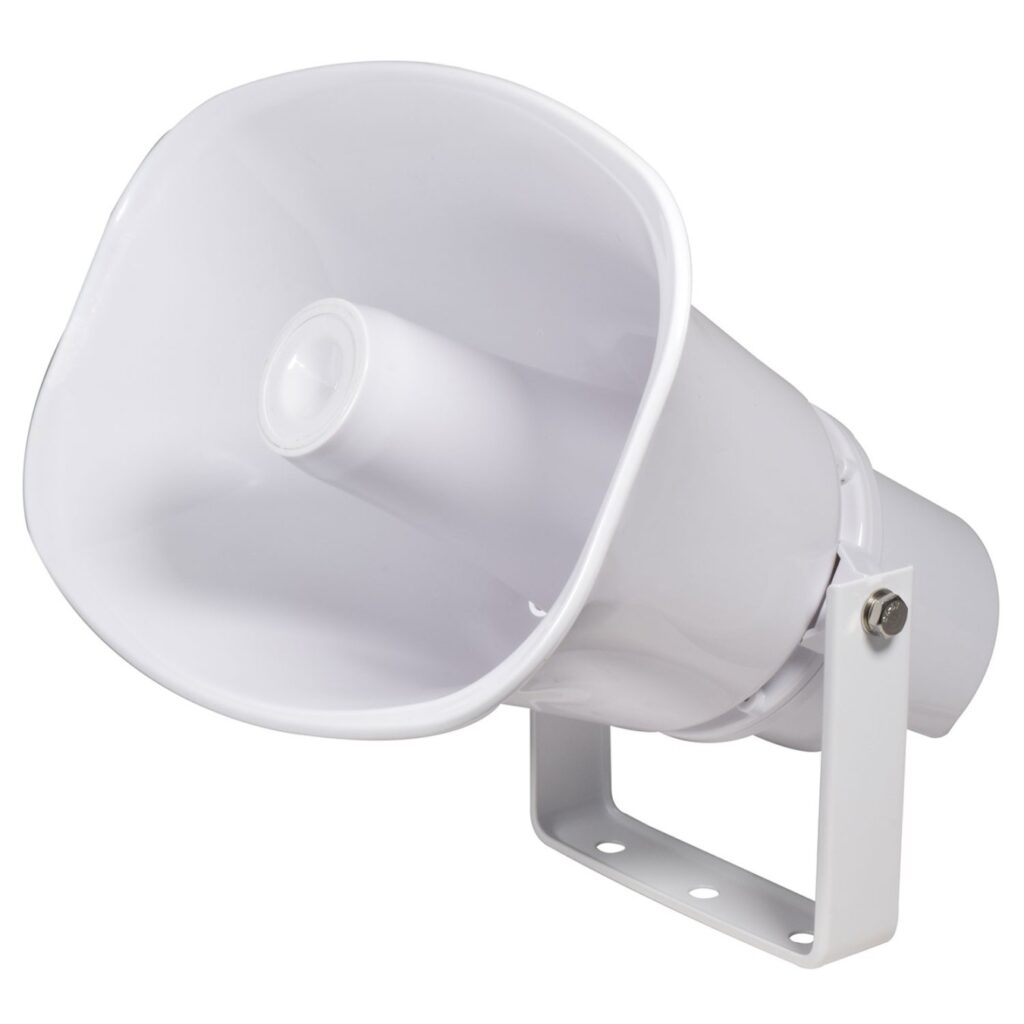

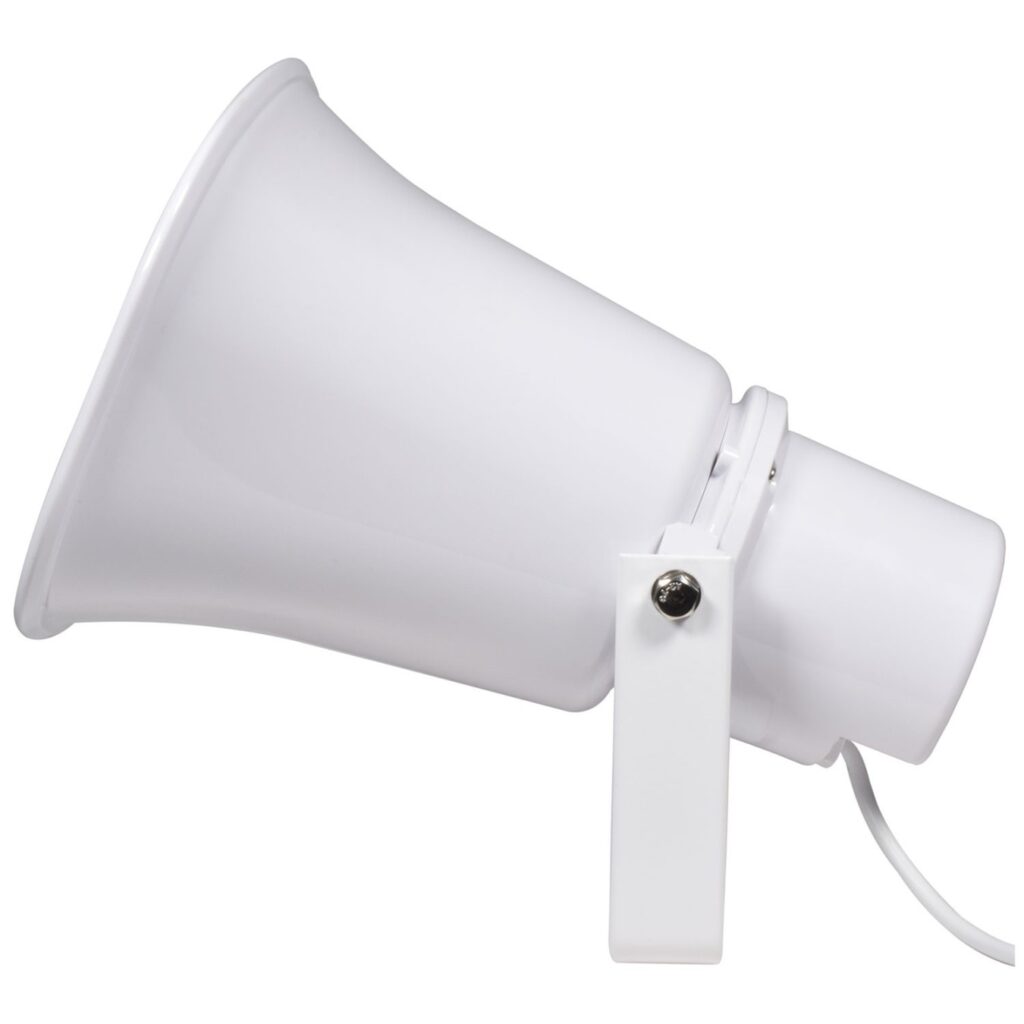

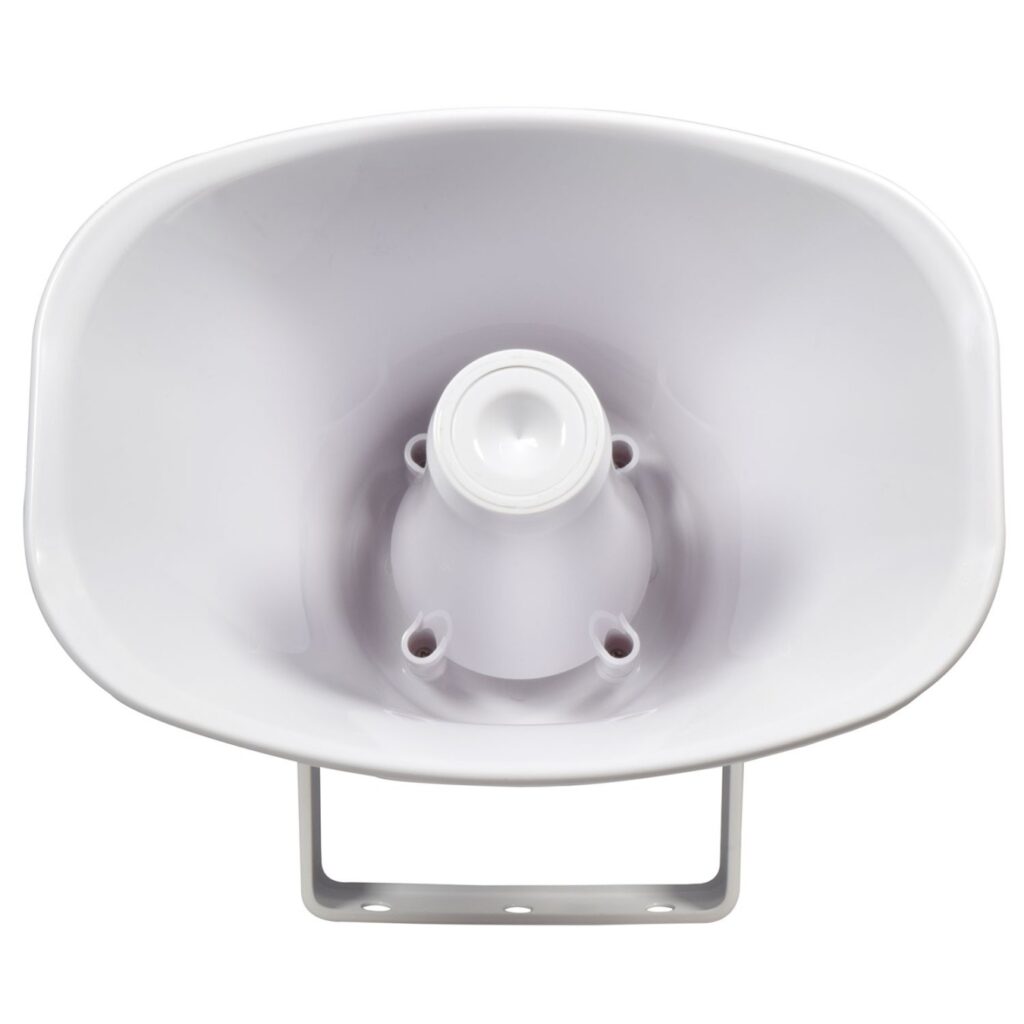

Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a stainless adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.

  • EN54-24 fire systems certification
  • IP66 weatherproof
  • 5VB fireproof ABS material
  • 100V, 70V or 8 Ohm operation
  • Ceramic terminals and thermal fuse
  • Construction…………………5VB fire-rated ABS housing, stainless metal bracket
  • IP rating……………………….IP66
  • Fire rating…………………….EN54-24 certified

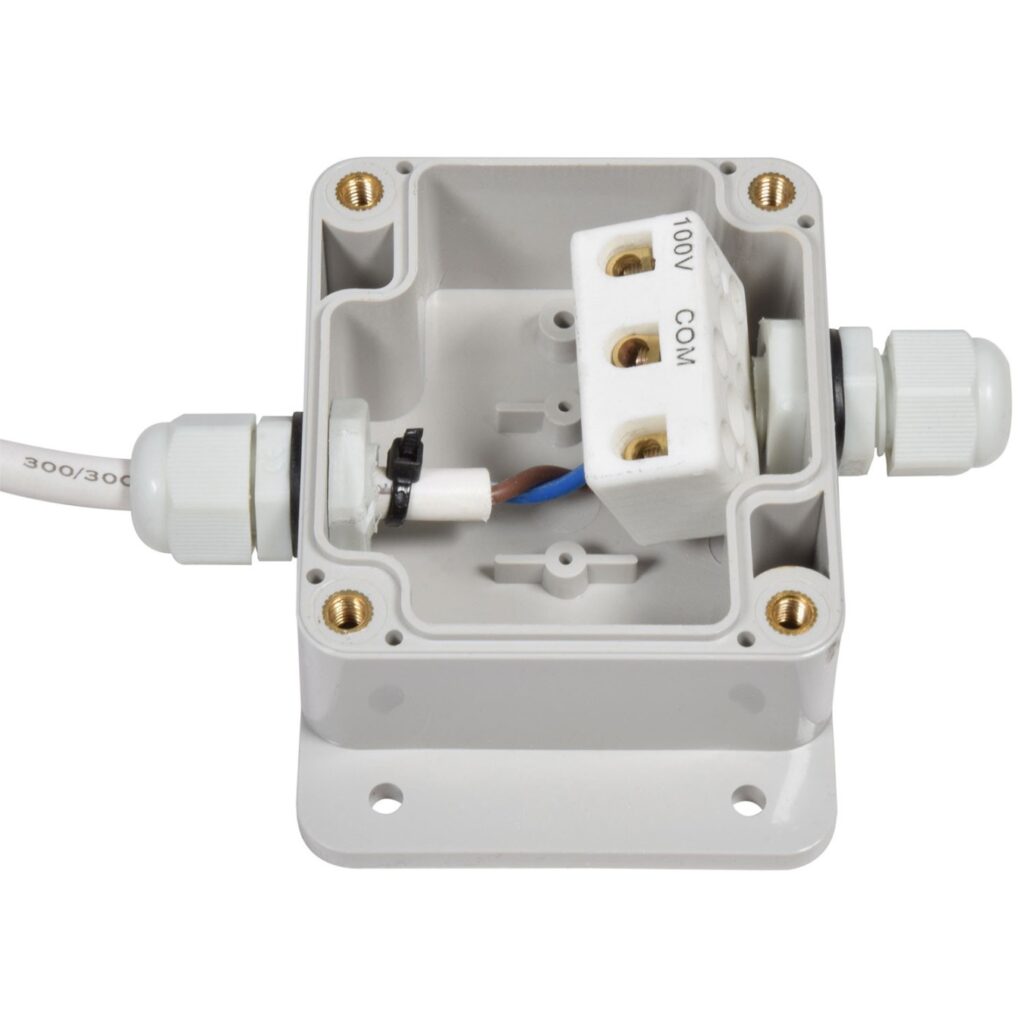

  • Connection…………………..Hard-wired fire-resistant cable, ceramic terminal block
  • Circuit protection…………..Thermal fuse
  • Power rms : 8 Ohms……..30W

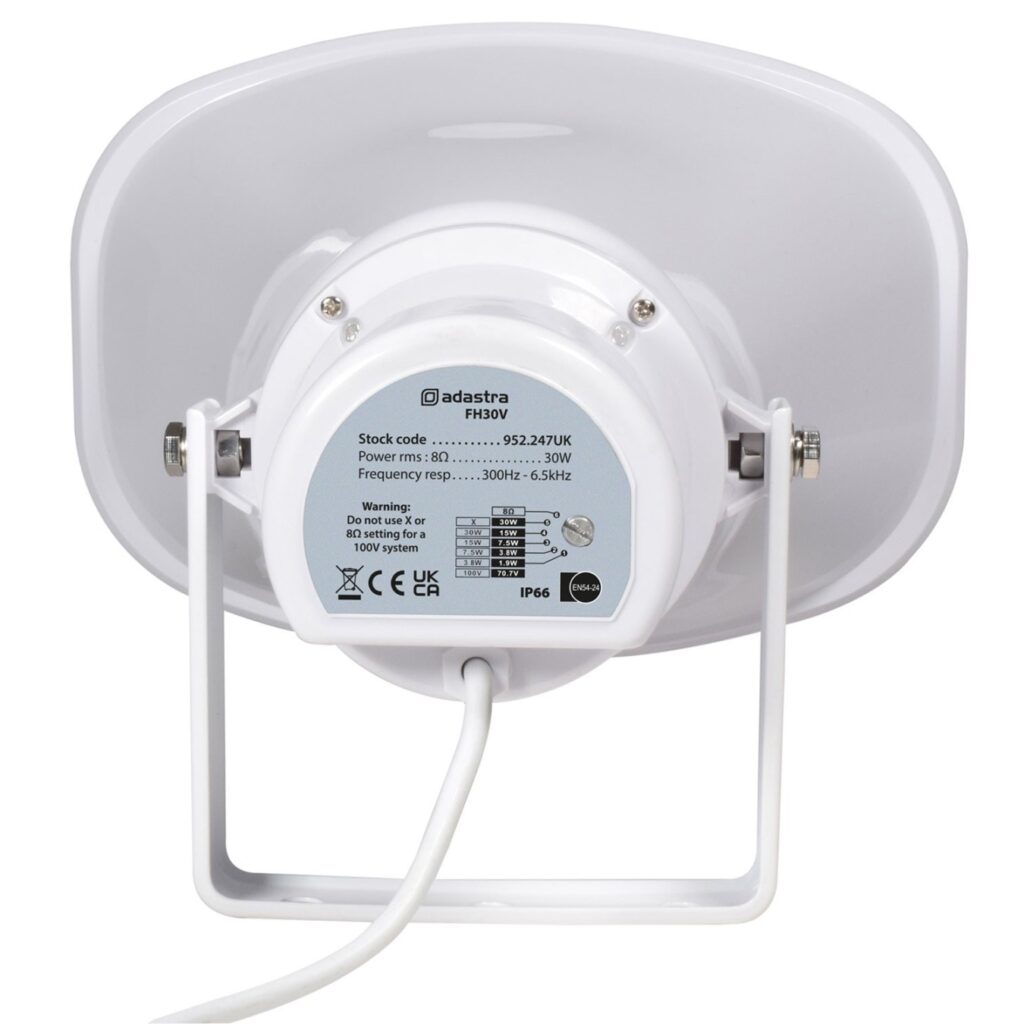

  • Tappings………………………3.8W, 7.5W, 15W, 30W (100V) & 8 Ohms
  • SPL @ 1W/1m……………..113dB
  • Frequency response……..300Hz – 6.5kHz
  • Dimensions………………….300 x 282 x 203mm
  • Weight…………………………2.26kg
