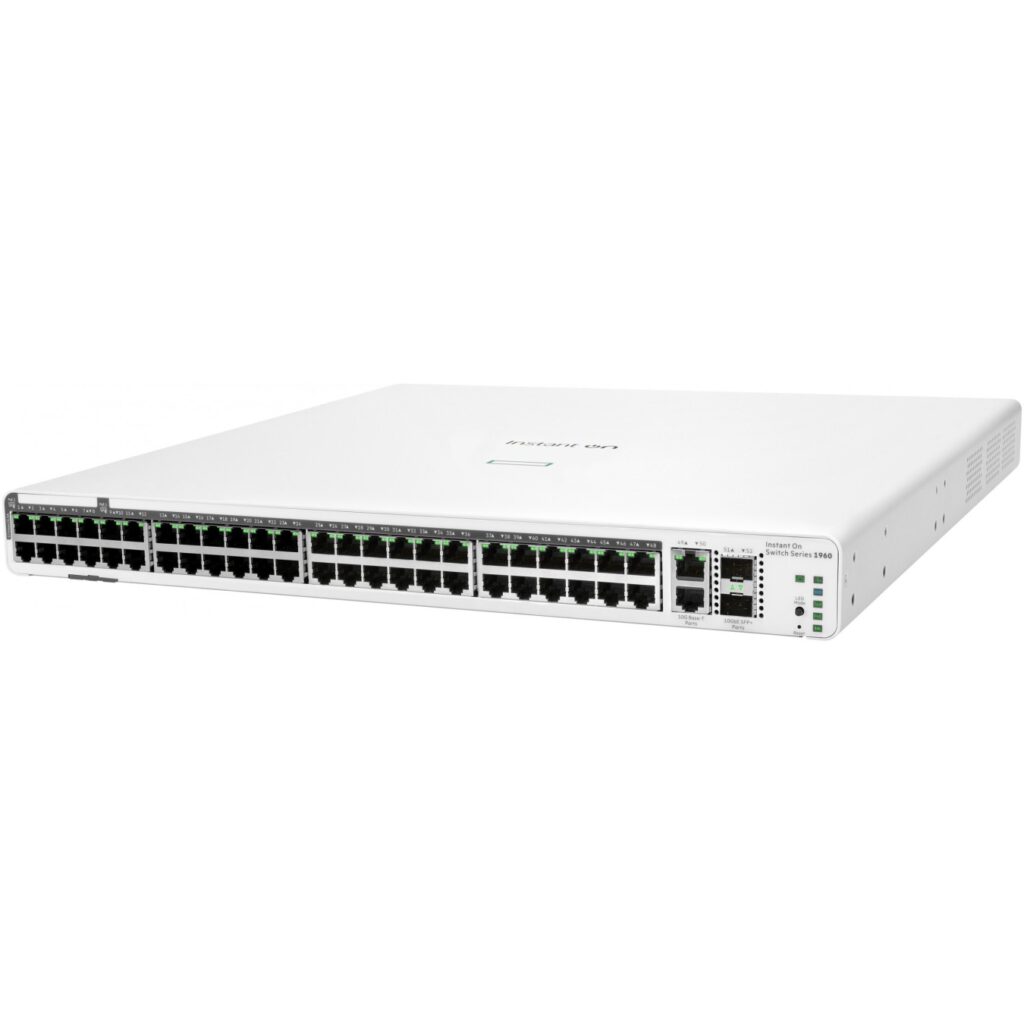

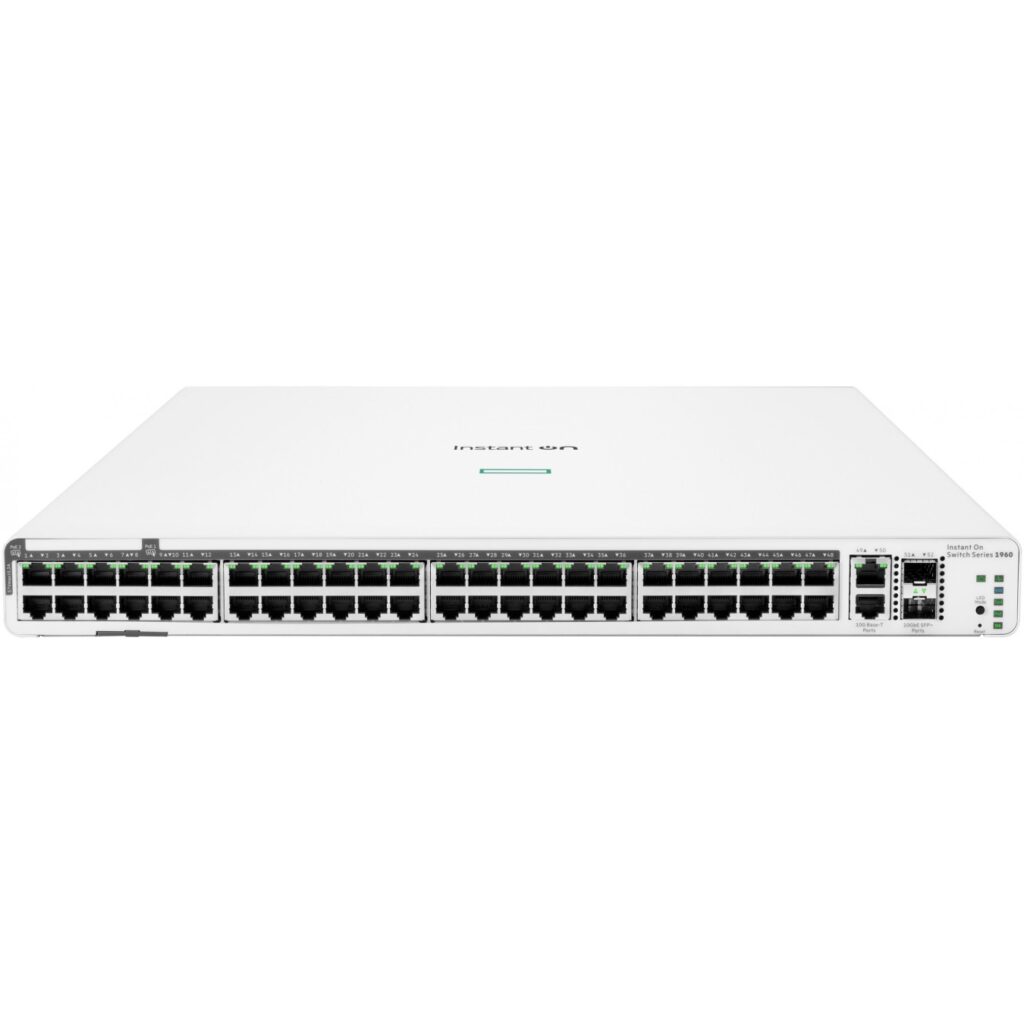

48+4P HP Enterprise Aruba Instant On - 1960 RM M - 48G 2SFP+ 2XGT PoE (600W) Switch
Rack-mountable HP Aruba Instant On switch with 48 Gigabit ports, 2 SFP+ 10Gb, 2x 10GBASE-T, and 600W PoE budget; managed L2+.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
HPE Aruba Networking Networking Instant On Switch 40p Gigabit CL4 8p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 600W 1960. Switch type: Managed. Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE…. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2+ |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Switching capacity | 176 Gbit/s |
| Throughput | 131 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 4.4 µs |
| Latency (1 Gbps) | 2.2 µs |
| Latency (10 Gbps) | 1.1 µs |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP snooping |
| Authentication | Port-based authentication |
| Authentication type | RADIUS |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| IPv4 FIB entries | 32 |
| IPv6 FIB entries | 32 |
| Form factor | 1U |
| Product colour | White |
| Physical stacking (units) | 4 |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 800 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Power source | AC |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 760 W |
| Total Power over Ethernet (PoE) budget | 600 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating altitude | 0 - 3000 m |
| Width | 402.8 mm |
| Depth | 442.5 mm |
| Height | 44 mm |
| Weight | 4.9 kg |
| Harmonized System (HS) code | 85176990 |
