4-Port SATA and 1-Slot M.2 Key B PCIe x4 Card - Low Profile Form Factor Adapter
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

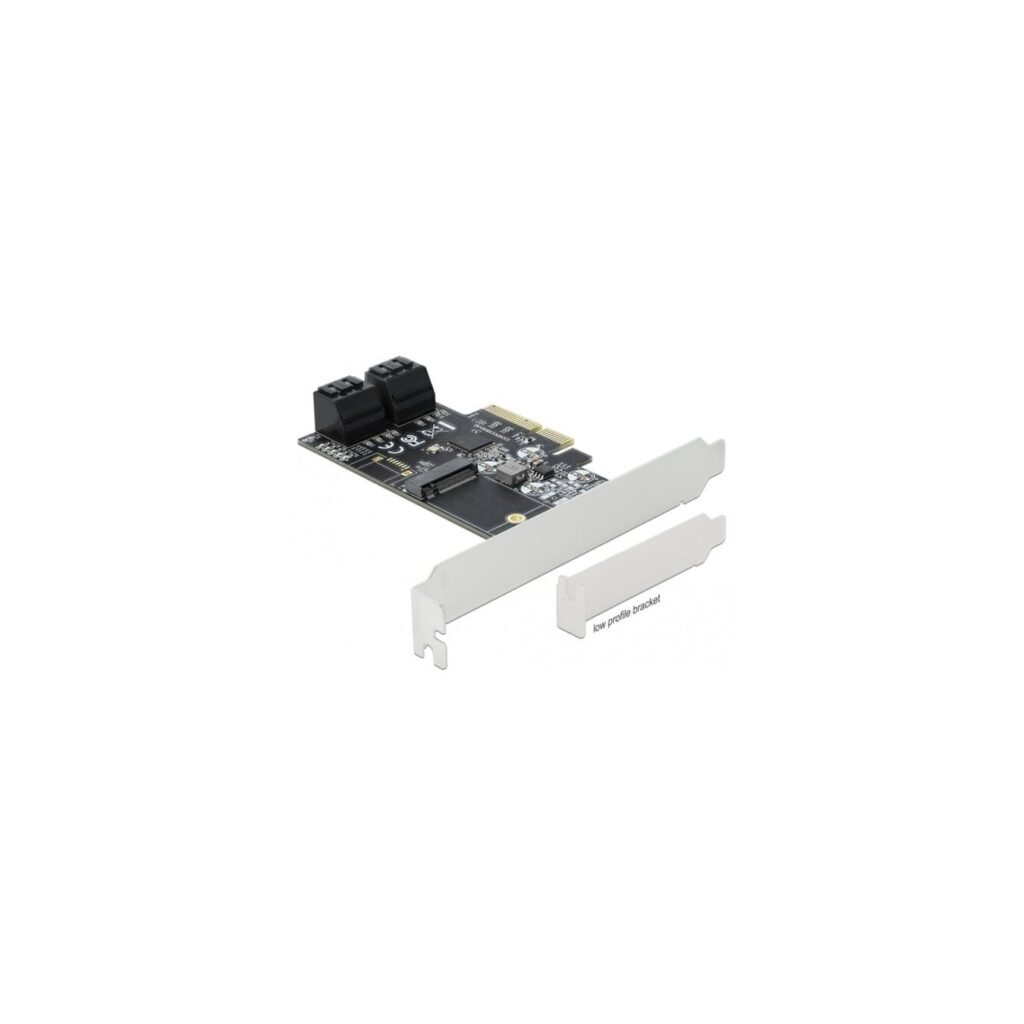

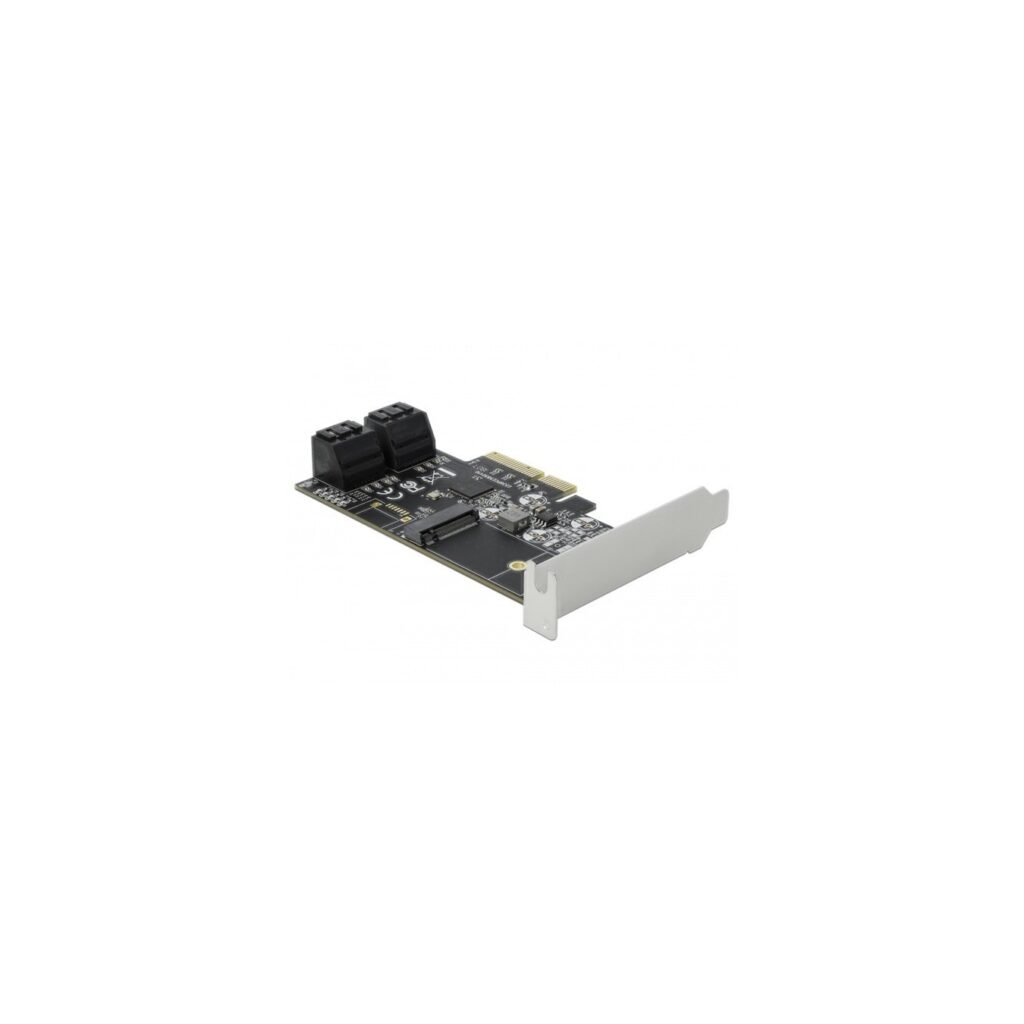

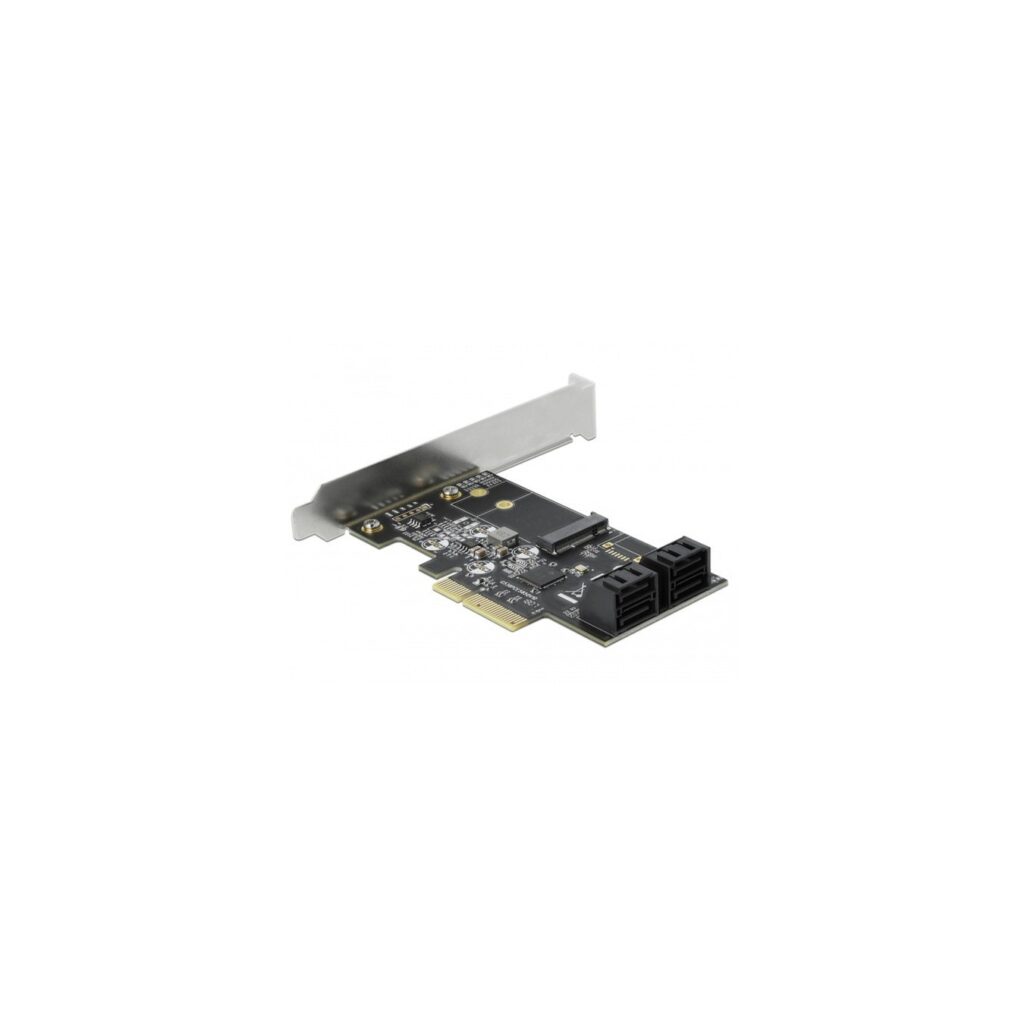

Delock PCIe x4 card with 4 internal SATA ports and 1x M.2 Key B slot in a low-profile form factor.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The 4 port SATA and 1 slot M.2 Key B PCI Express x4 card – low profile form factor from Delock expands the PC with four internal SATA ports and an M.2 slot. Various devices such as: B. SSDs, hard drives, DVD drives etc. and an M.2 module in 2242 or 2230 format can be connected.
| Typ | Adapter |
| EAN | 4043619903962 |
| Manufacturer no. | 90396 |
| slot | PCIe x4 |

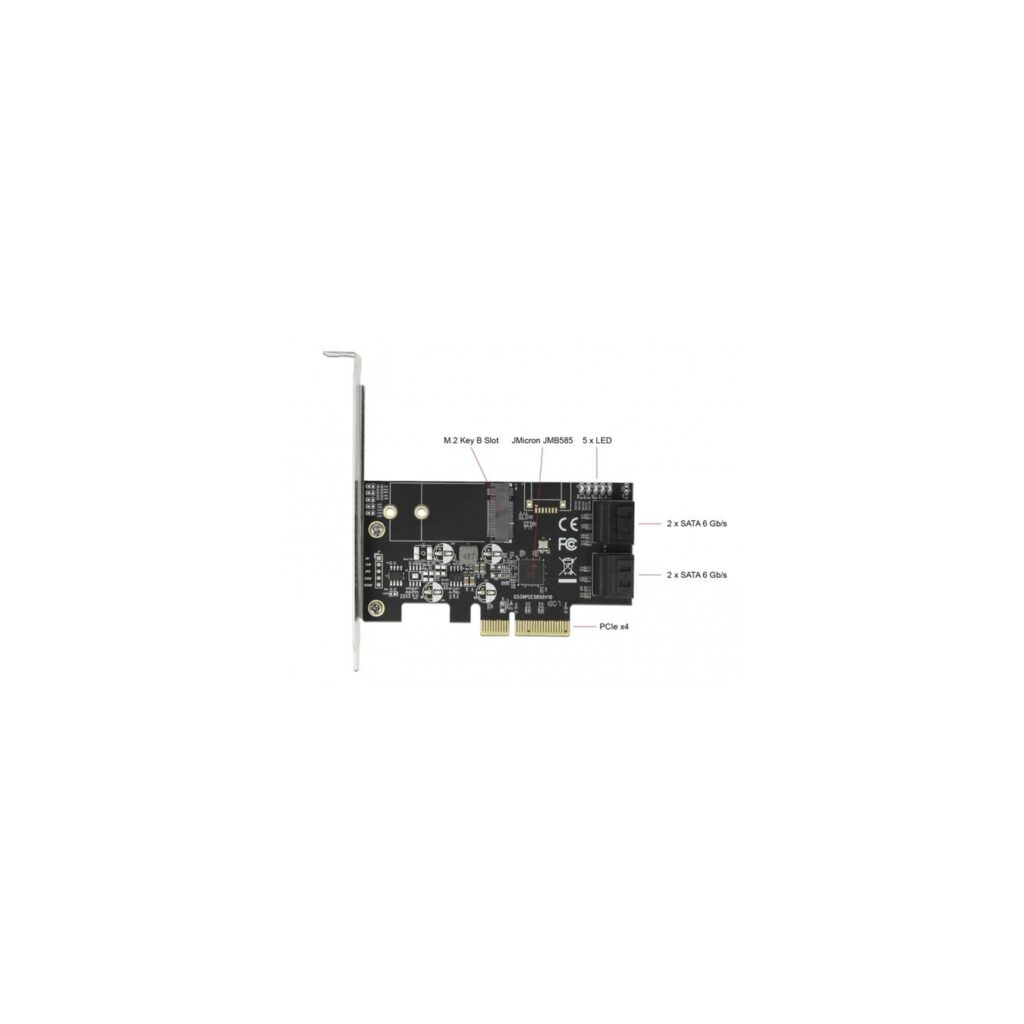

| Chip | JMicron JMB585 |
| Protocol | Serial-ATA/600, Serial-ATA/150, Serial-ATA/300 |
| Connections - internal | 1x M.2, 4x 7-pin SATA |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10 |
| Low Profile | optional |
| Feature | Interface: SATA, Supports M.2 modules in format 2242 and 2230 with Key B or Key B+M on SATA basis, Maximum height of the components on the module: 1.5 mm, Use of double-sided modules possible | Supports Native Command Queuing (NCQ), Supports S.M.A.R.T., Supports TRIM, Supports DevSleep, Hot Swap, Bootable |

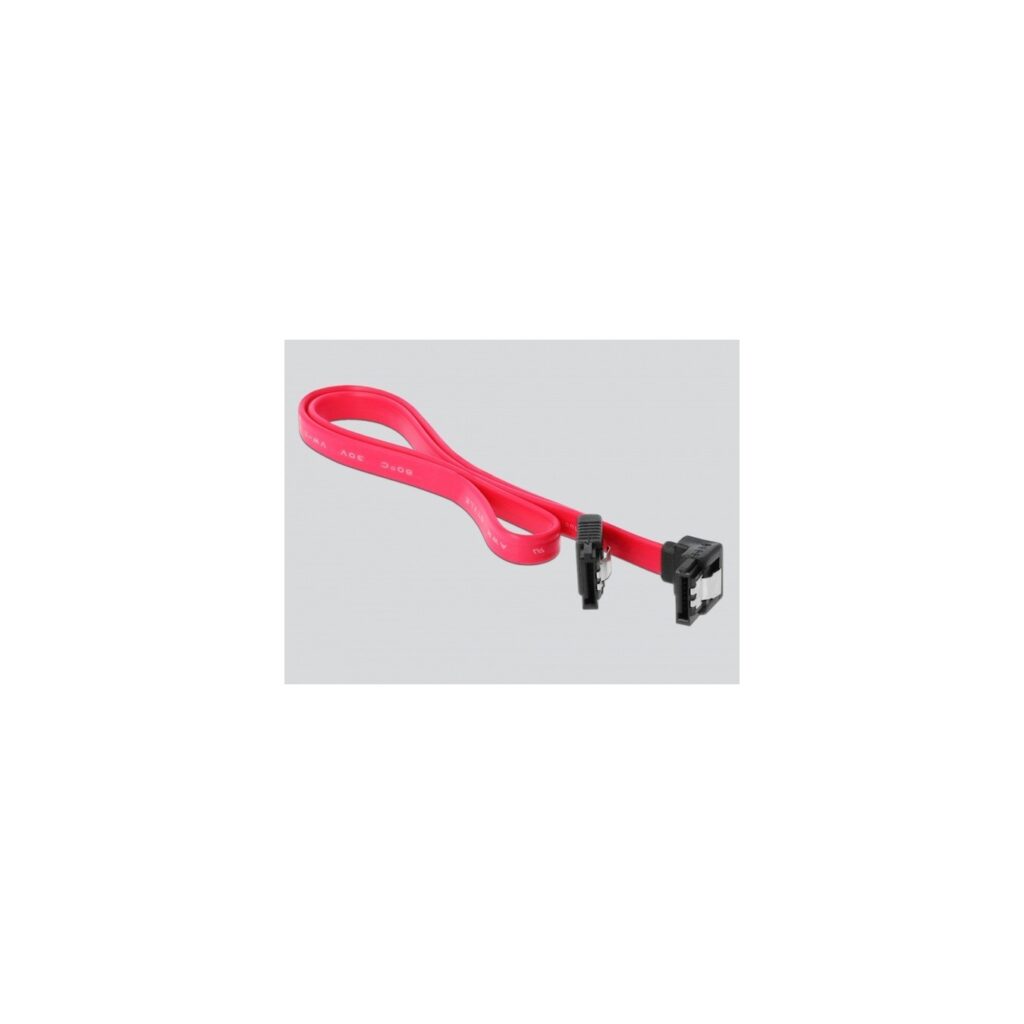

| Accessories - available | Low profile cover, 4 x SATA cables, length approx. 50 cm, M.2 mounting material, operating instructions |
